Low Price Rubber Inflatable Airbag for Road Bridge Making Culvert
Negotiable
MOQ: 20 Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Dacheng
Place of Origin:
China
Model Number:
D30mm-2200mm
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
30 days
Related Products
-
Rubber Inflatable Mandrel Airbag for Road Bridge Making CulvertNegotiableMOQ: 20 Meters -
Good Tightness Rubber Inflatable Mandrel Airbag for Culvert ConstructionNegotiableMOQ: 20 Meters
-
Low Price Pipe Stoppers for Gas and Sewer Pipeline RepairingNegotiableMOQ: 20 Pieces
-
New Style Pipe Stopper for Gas and Sewer Pipeline RepairingNegotiableMOQ: 20 Pieces
-
Bridge Project Use Steel Expansion Joint for Many CountriesNegotiableMOQ: 100 Meters
Brand Name
Dacheng
Place of Origin
China
Model Number
D30mm-2200mm
Contact information
Sales Manager: Ms Sona guo
Email:dcrubber1996@126.com
Website:Companies: Zaoqiang Dacheng Rubber Co.,Ltd.
THE DESCRIPTION
Inflatable rubber mandrel is a kind of cylinder bag that can expand, shrink, used to form concrete
component of cavity. It is easy to be used, economic, and durable. It can not only save materials, but also
has the shape characteristics, as it could be round, rectangle, octagon, hexagon, trapezoidal pipeline, etc.

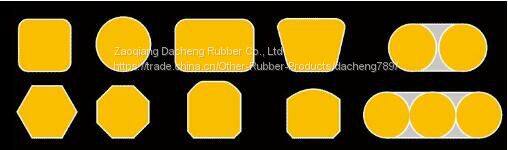

Shape:
THE MAIN INFORMATION YOU WANT
| Items | Index |
| Terence of Thickness, mm | 3.2±0.2 |
| Hardness(Shore A) | 65±5 |
| Adhesive tension of rubber and fabric,N/25mm | ≥8 |
| Tensile strength, M pa | ≥12 |
| Elongation at break, % | ≥350 |
| 300% Stretch set length, M Pa | 6 |
| Stretch for deformation ratio | ≤20 %(Prevent distortion) |
| Suitable temperature,°C | -10~80 |
| Appearance | No cracks, no bubbles on the surface; the length of impurities trace is not more than 3mm; the depth is not more than 1.5mm; the quantity of the trace is not more than one; the deformation is not more than 2mm. |
THE FEATURE
1. Inflatable core mold design scientific and reasonable
2. Inflatable core mold has good aging resistance performance, long life characteristics
3. Inflatable core mold temperature range In the range of -10 Degree ~ +90 Degree, Inflatable core
mold material will not change
4. Inflatable core mold provides the necessary condition for the bridge, construction of light
5. Inflatable core mold construction technique is simple, safe, health .When Inflatable core mold in
application, using a few of simple tools, no need of special process.

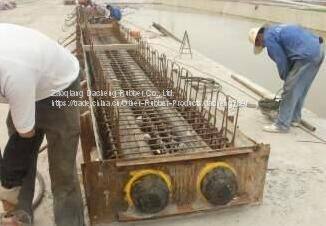

As long as Inflatable core mold into a steel cage, inflating pressure of up to the working pressure
(according to the pressure gauge and instructions for quasi), namely the pouring of concrete, the initial
set of concrete, the Inflatable core mold bleed out, can complete the molding product components, and
Inflatable core mold does not pollute the environment.
THE USAGE
It is usually used in reinforced concrete members, bridge construction, irrigation works and tunnels, such
as stake, roof, roof board column, beam, building, water conservancy project(shipyards, slipway, dock).
F&Q
1.
Q:Which specification can you produce?
A:Our factory is a professional manufacture of rubber balloon with rich experience.Our produced
specification is as follows:
Diameter: 150mm-2200mm
Length: 1m-28m
Note: The above is our standard specification and we can also customize it as client's special
requirements.
2.
Q:Can What kind of shape can you make?
A:we can make more than ten shapes including cylinder,round, rectangle, octagon, hexagon, trapezoidal
pipeline, etc, or according your requirements and drawings.
