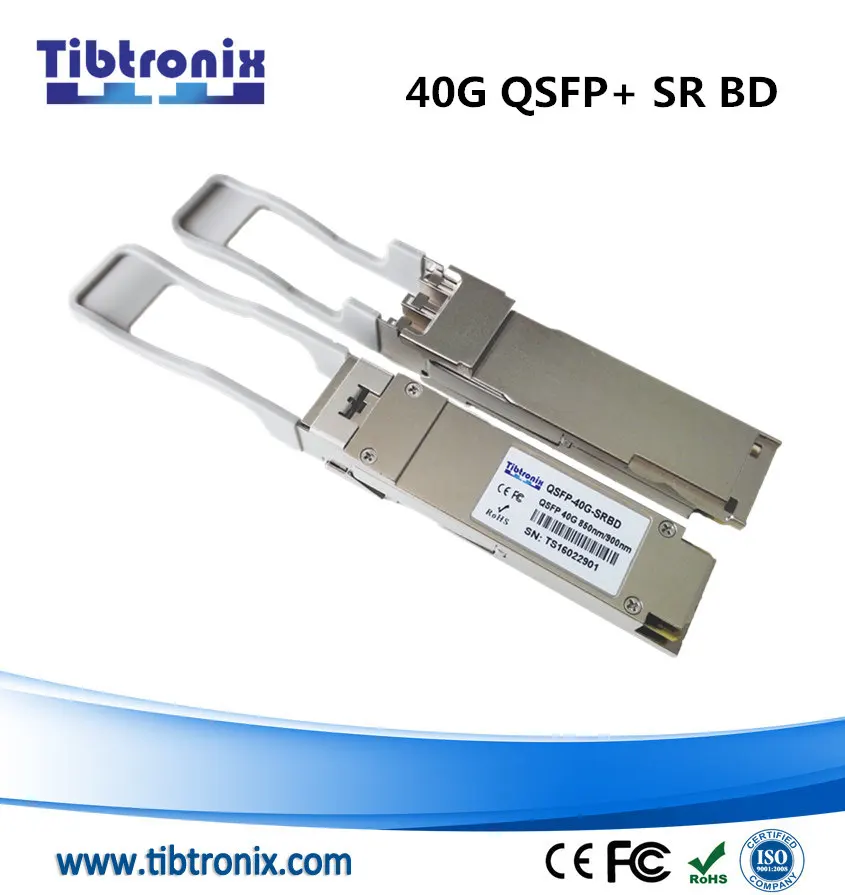

Chinese QSFP BD SR 40Gb/s 100m QSFP+ Bi-Di Duplex LC 850/900nm MMF for FTTH

1.Features:

²  Compliant to the 40GbE XLPPI electrical specification per IEEE 802.3ba-2010

²  Compliant to QSFP+ SFF-8436 Specification

²  Aggregate bandwidth of > 40Gbps

²  Operates at 10.3125 Gbps per electrical channel with 64b/66b encoded data

²  QSFP MSA compliant

²  Capable of over 100m transmission on OM3 Multimode Fiber (MMF)and 150m on OM4 MMF

²  Single +3.3V power supply operating

²  Built-in digital diagnostic functions

²  Temperature range 0°C to 70°C

²  RoHS Compliant Part

²  Utilizes a standard LC duplex fiber cable allowing reuse of existing cable infrastructure

Bi-directional 5Gb/s (SFP) transceivers are compliant with the current SFP Multi-Source Agreement (MSA) Specification. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the SFP MSA.

2.Applications

²  40 Gigabit Ethernet interconnects

²  Datacom/Telecom switch & router connections

²  Data aggregation and backplane applications

²  Proprietary protocol and density applications

It is a Four-Channel,Pluggable, LC Duplex, Fiber-Optic QSFP+ Transceiver for 40 Gigabit Ethernet Applications. This transceiver is a high performance module for short-range duplex data communication and interconnect applications. It integrates four electrical data lanes in each direction into transmission over a single LC duplex fiber optic cable. Each electrical lane operates at 10.3125 Gbps and conforms to the 40GE XLPPI interface.

The transceiver internally multiplexes an XLPPI 4x10G interface into two 20Gb/s electrical channels, transmitting and receiving each optically over one simplex LC fiber using bi-directional optics. This results in an aggregate bandwidth of 40Gbps into a duplex LC cable. This allows reuse of the installed LC duplex cabling infrastructure for 40GbE application. Link distances up to 100 m using OM3 and 150m using OM4 optical fiber are supported. These modules are de- signed to operate over multimode fiber systems using a nominal wavelength of 850nm on one end and 900nm on the other end. The electrical interface uses a 38 contact QSFP+ type edge connector. The optical interface uses a conventional LC duplex connector.

3. Leading Switch Compatible

4.Certificate

CE, FC, Rosh, ISO9001 etc.

ShenzhenTIBTRONIX Technology ( ) locating in Shenzhen China, is a factory based manufacturer of optical transceivers covering various types widely applied to WAN, LAN, SAN, Fiber Channel, FTTX, etc. , meeting the fast-changing market demands. We have technical experts with more 15 years experiences in our team to do R&D, programming, and customization for our clients. Our current advantage is on 10G SFP+/XFP/1000base-sx/lx , price is good and we are keeping developping new products like 120km SFP+/XFP, and 80km BIDI SFP+/XFP.

All our transceivers are built to MSA (Multi Source Agreement) standards and are extensively tested to ensure 100% compatibility with a huge range of leading switch and device manufacturers.

We are very confident in the performance and reliability of our optical transceiver solutions that we offer 3 years performance warranty. This is combined with our outstanding service and support levels to ensure complete peace of mind. In fact, our Optical Transceivers are deployed within some of the world’s largest data centres and telecommunications companies as well as a large number of SME enterprise data centres and government agencies.

Fully compatible digital diagnostics functionality (DDM/DOM) are available via the MDIO for all transceivers:

3COM, Arista, A10, Alcatel Lucent, Allied Telesis, Avaya, Brocade, Ciena, Cisco, Dell, D-Link, Emulex, Enterasys, Ericsson, Extreme, F5, Finisar, Force10, Fortinet, Foundry, HP, Huawei, Intel, Juniper, Linksys, Mellanox, NetGear Nokia Siemens, Nortel, Riverstone SMC, SUN, TP-Link Transition Networks, Trendnet, ZyXEL.
