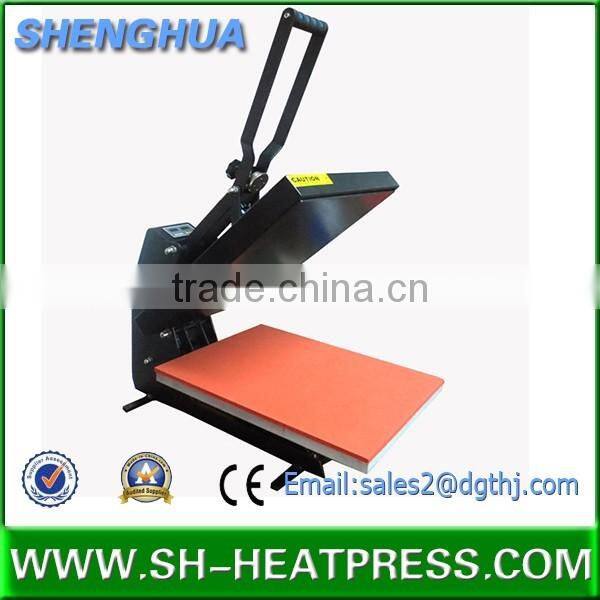

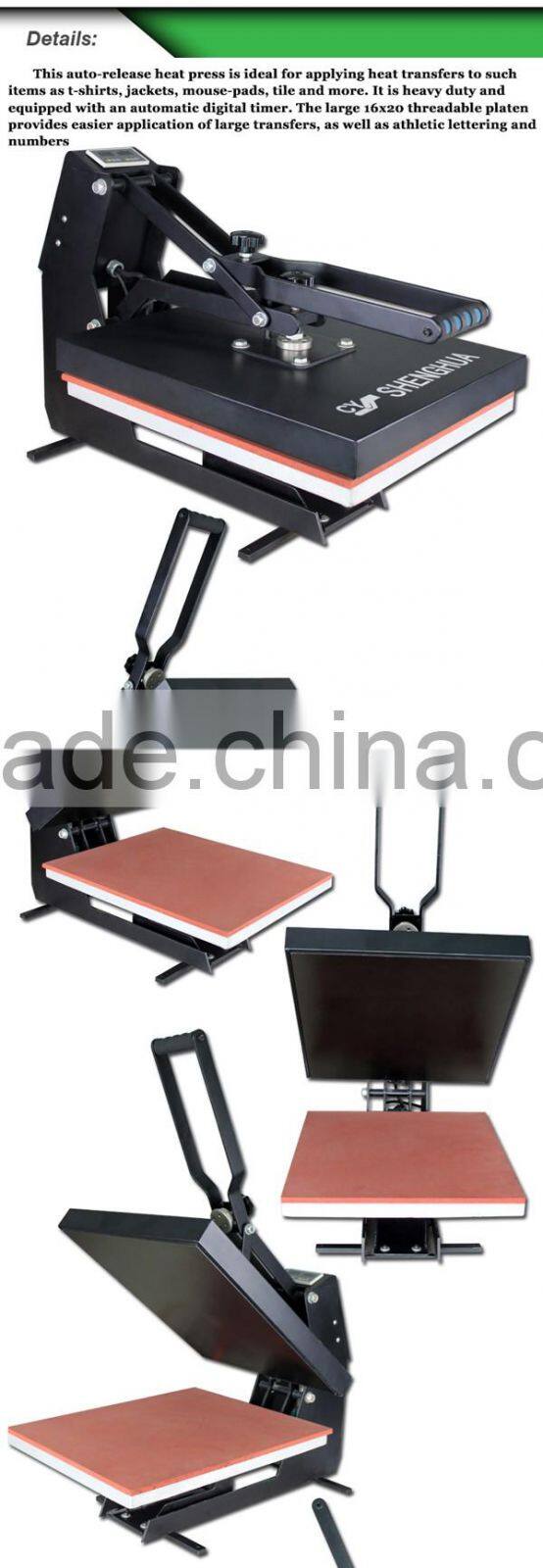

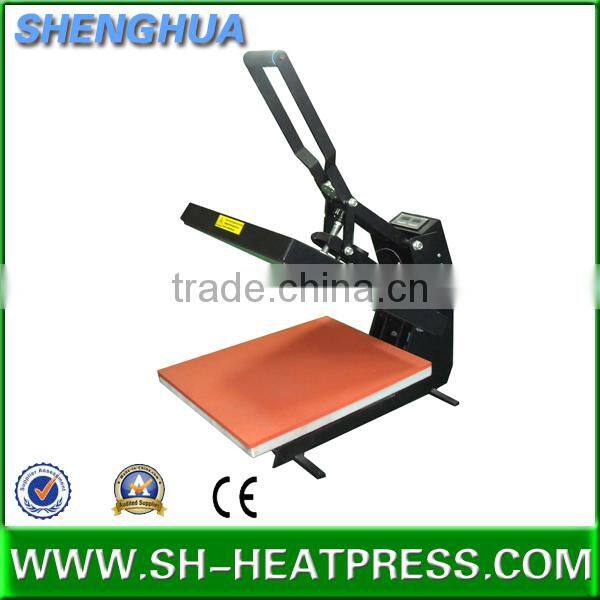

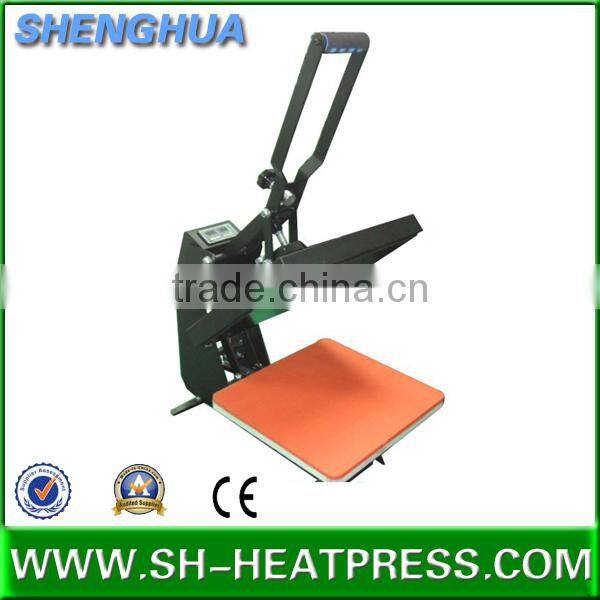

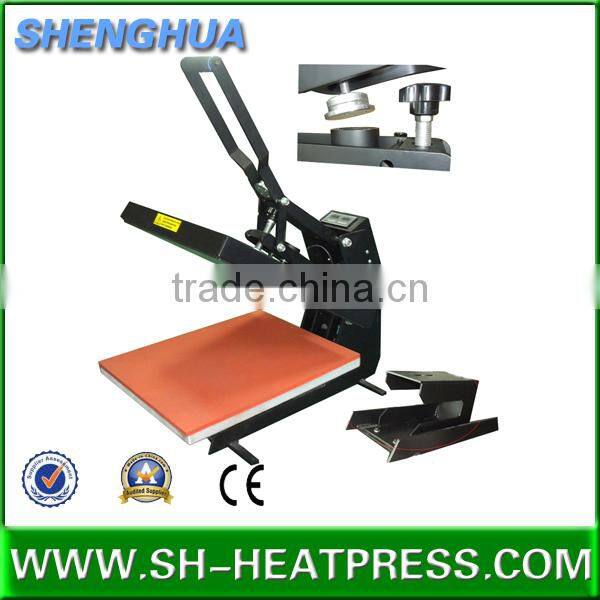

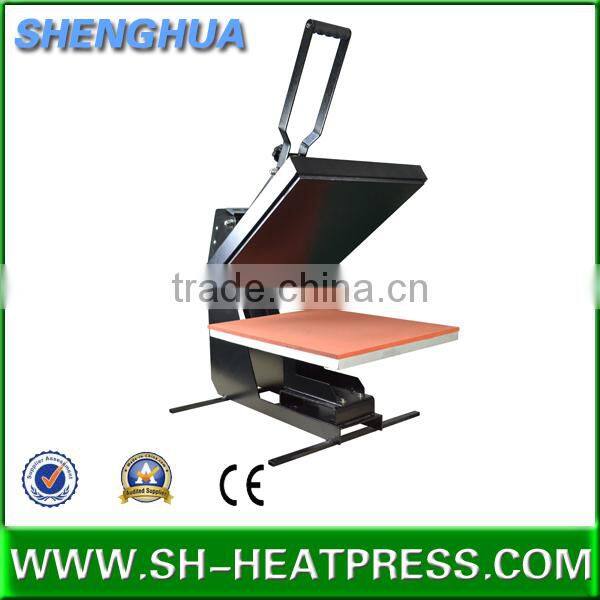

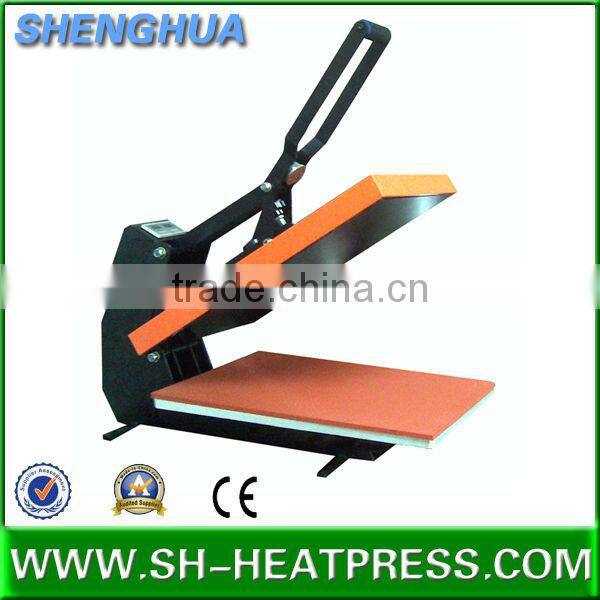

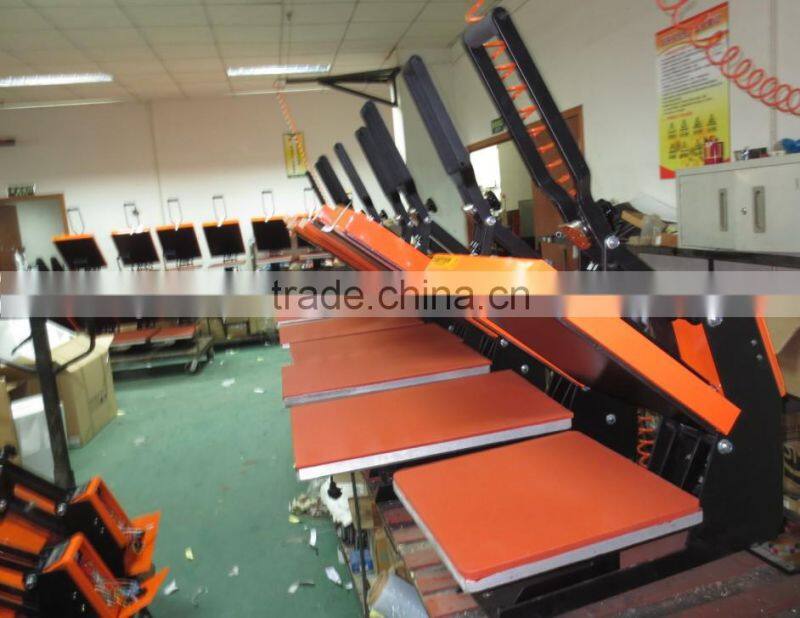

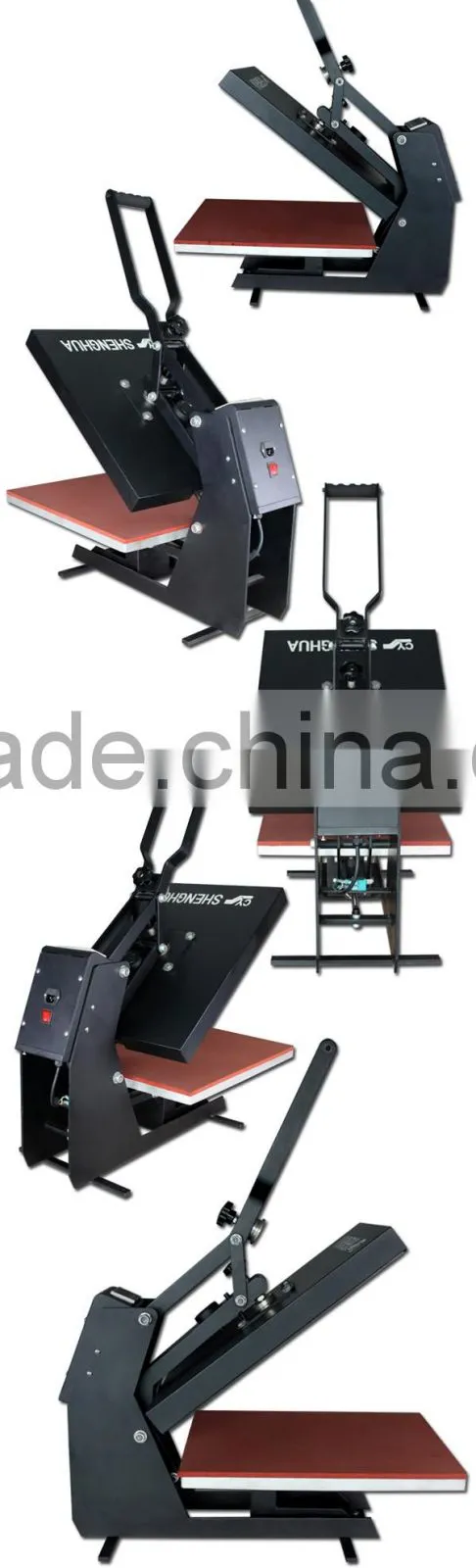

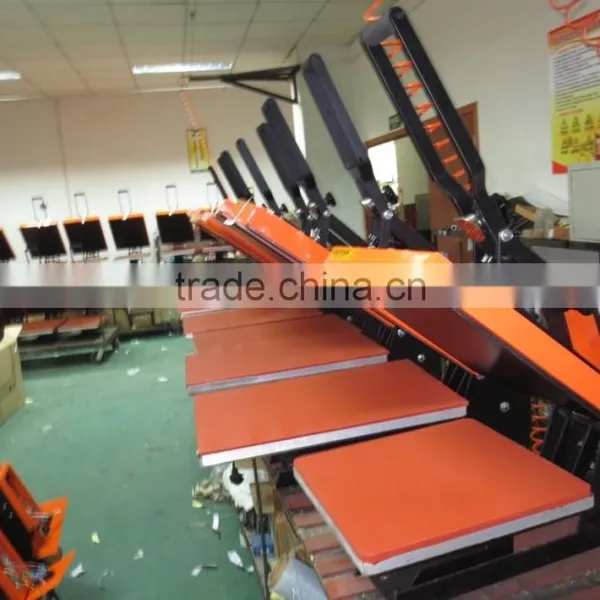

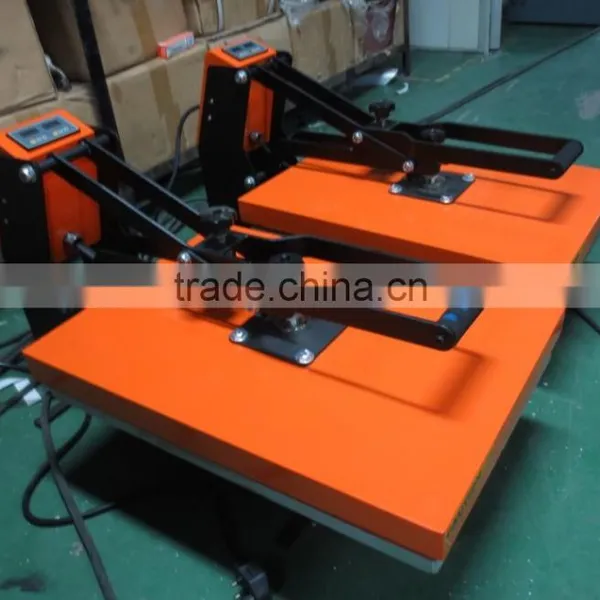

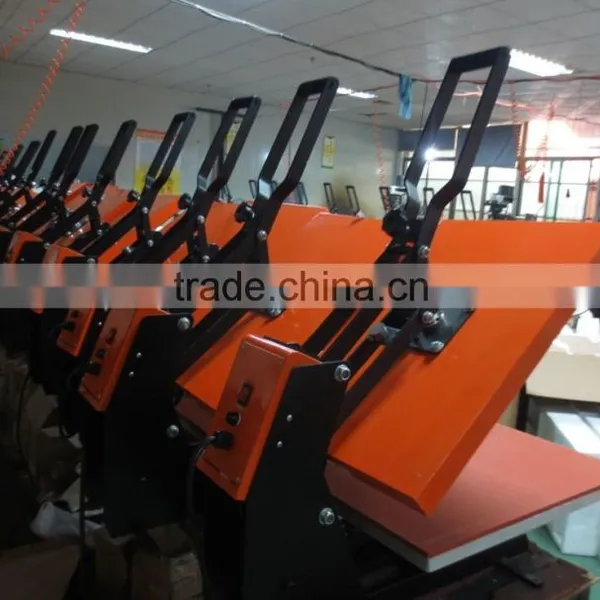

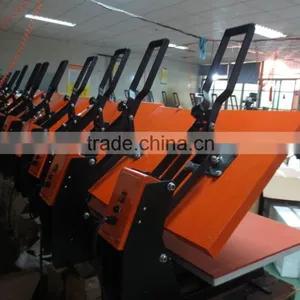

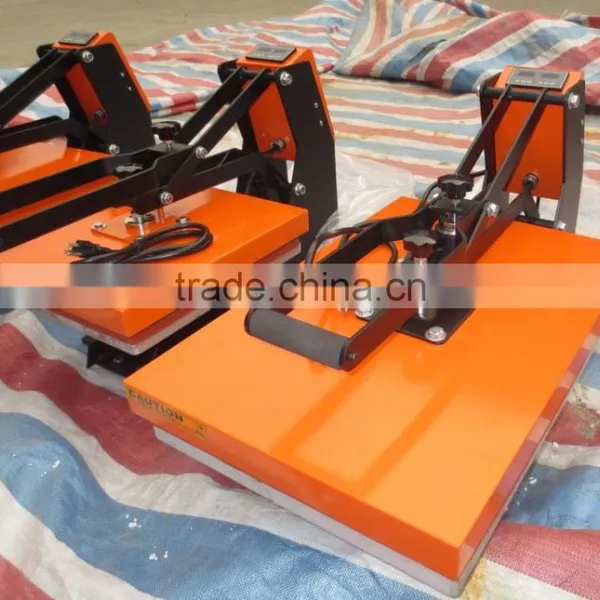

Automatic release sublimation thermal printing machine
Model: CY-G6
Size available: 38*38CM, 40*50CM, 40*60CM
Inch: 15x15, 16x20, 16x24
Auto release when time ready
CE Approval
This model adopts electronic magnetic control , when the time ready , the heat plate will open automatically , prefessional U design for t-shirts in the bottom .

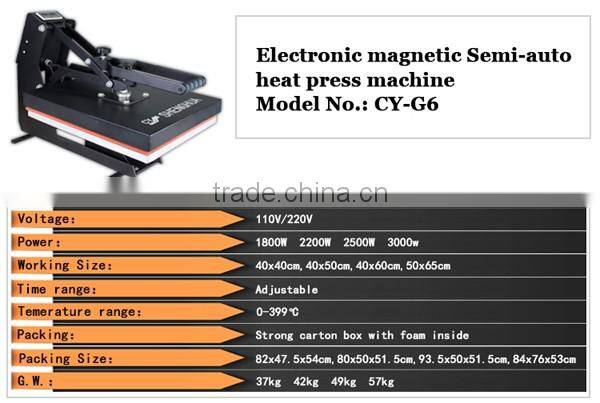

Model | CY-G6 |
Voltage | 110V/60Hz & 220V/50Hz |
Power | 1800W 2200W 2500W 3000W |
Working Area | 38*38CM/16"*16" 40*50CM/16"*20" 40*60CM/16"*24" 50*65CM Special size upon order |
Time range | Adjustable |
Temperature range | 0-399°C |

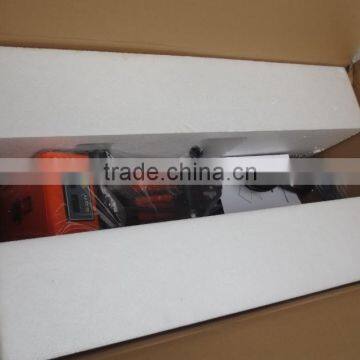

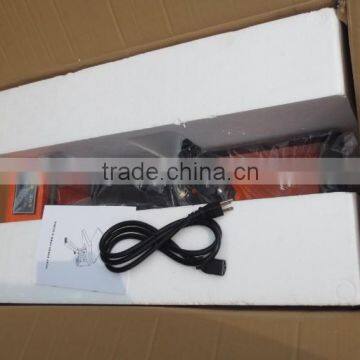

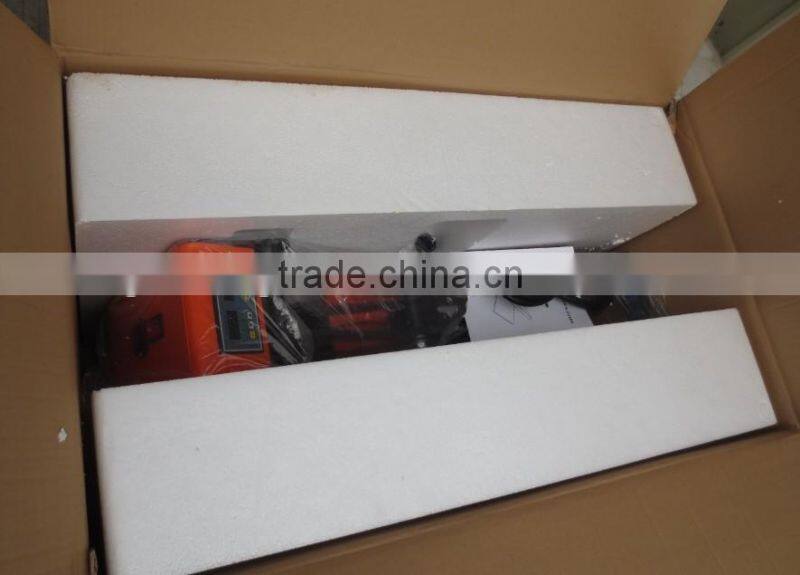

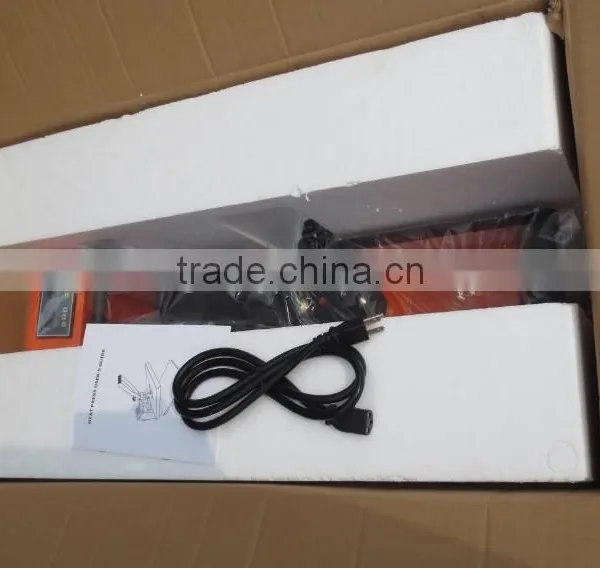

Packing | Strong carton box with form inside |
Packing Size | 72*46*52CM 82*47.5*54CM 95*48*58CM |
G.W. | 33KG 45KG 60KG |
Operation Procedures:
1. Open the machine , Plug in and ture on the power switch, the red flight will illuminate .
2. Adjust the “time and temperature controller” to set the right time and temperature needed for heat transfer (Normally 248F-392F/ 120°C-200°C).
3. Adjust the “Using Pressure adjuster” to set the using pressure.
4. Adjust the “ Eccentricity pressure adjuster “ to set eccentricity pressure
5. Place the cloth on the down board ,cover the printing paper ,(please note the right surface of the paper), when the temperature ready ,press the handle down .(Please note the pressure should be no more than 30KG in case the handle will be distorted)
6. The Eccentricity pressure directly affect the heat plate can open automatic or not , please pay attention to the distinction of the using pressure with it , Regulation of the two pressures are complementary .
7. When the time over, the upper heat plate will open automatically , the machine will music on .

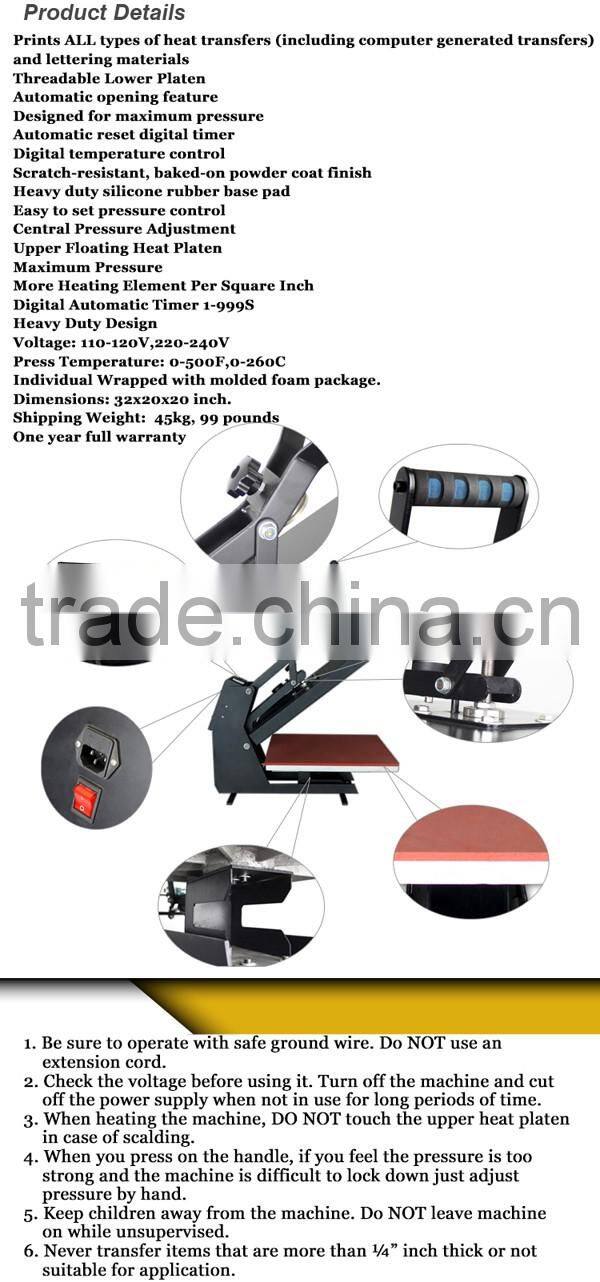

Product Characteristics
1. Digital 2in1 time and temperature controller .
2. Aluminium heat plate ,Heating uniformity on the surface.
3. Teflon coated on the heat plate , convenient and attractive appearance.
4. Signal indicator when transfer press finish .
5. The pressure can be adjust easily

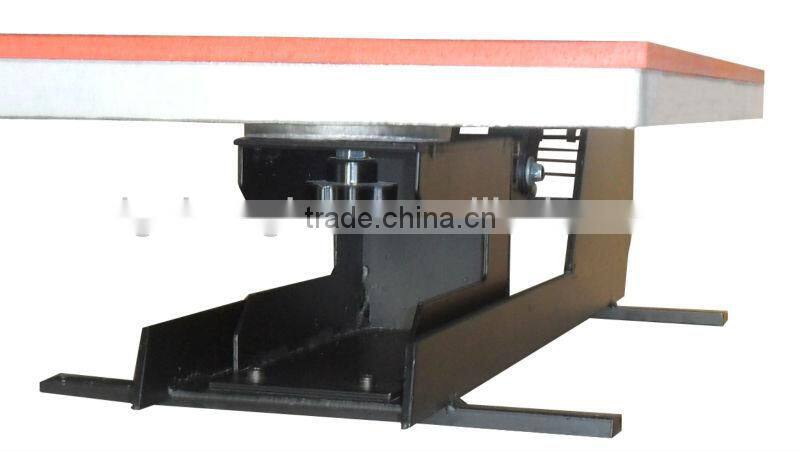

6. U design : T-shirt can wear on the machine directly .
7. The silicon pad can endure maximum 350 degree without any distortion
8. When the time over, the upper heat plate will open automatically
9. U design: T-shirt can wear on the machine directly .
