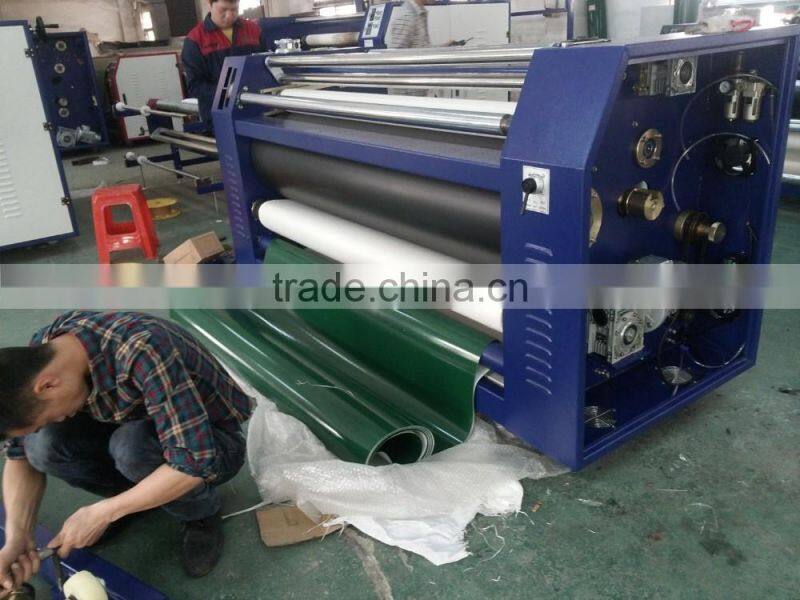

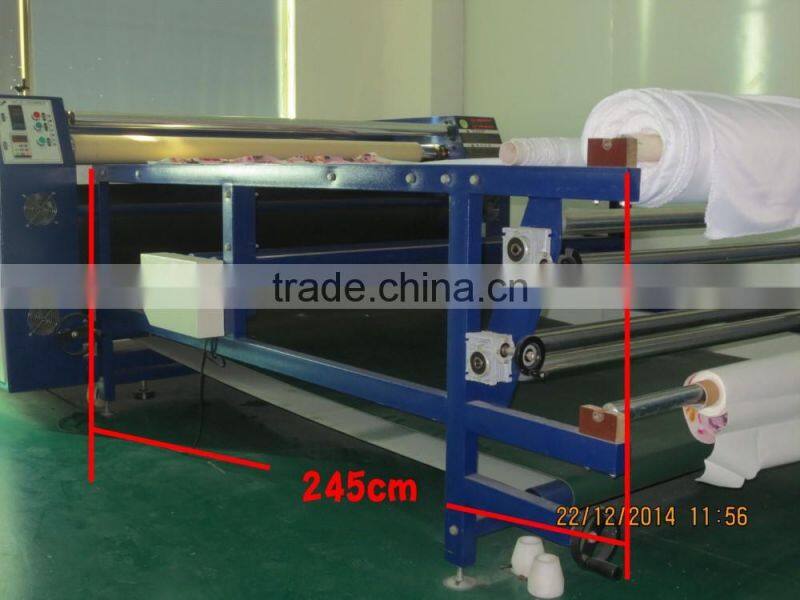

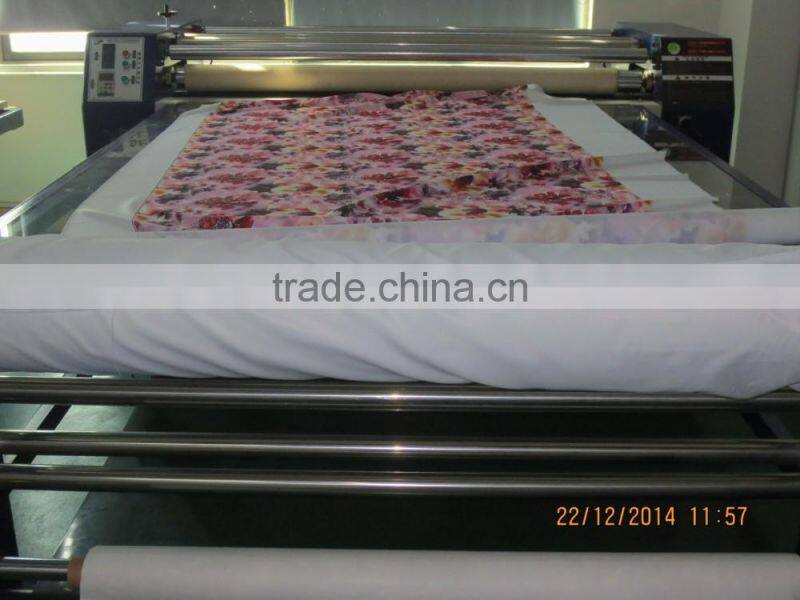

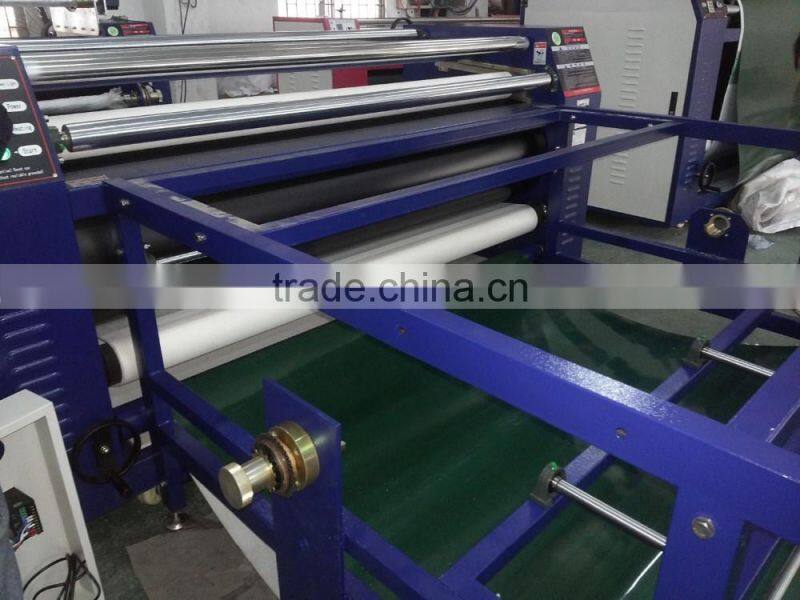

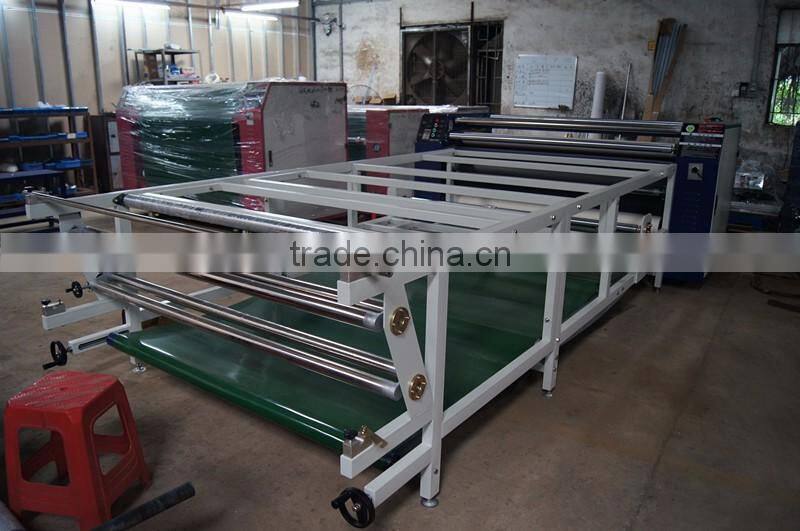

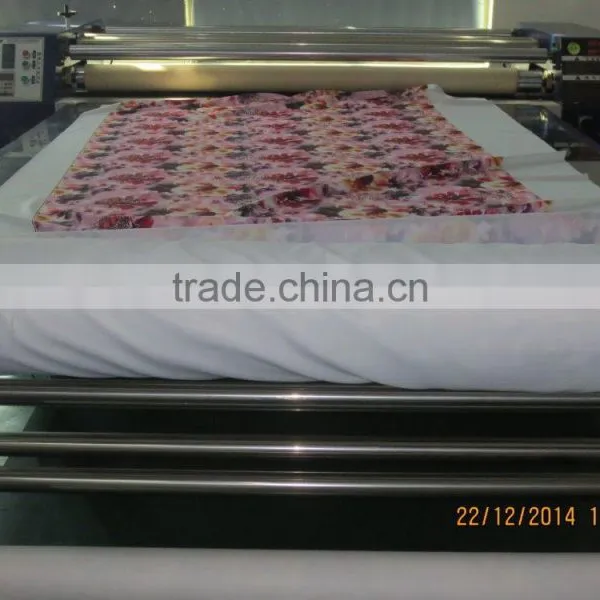

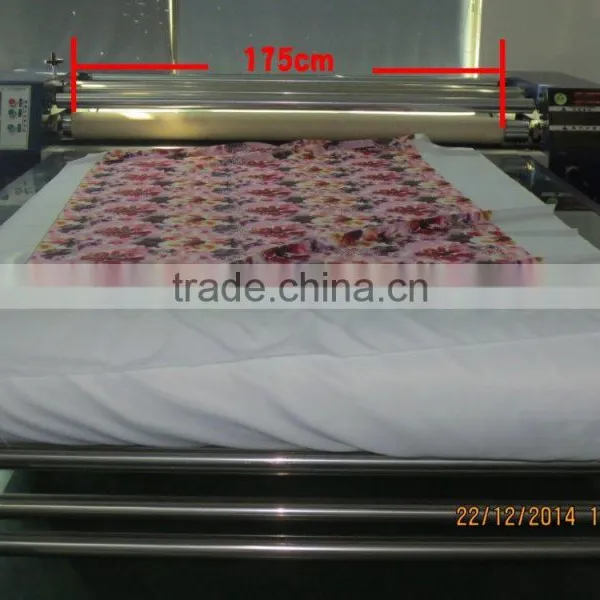

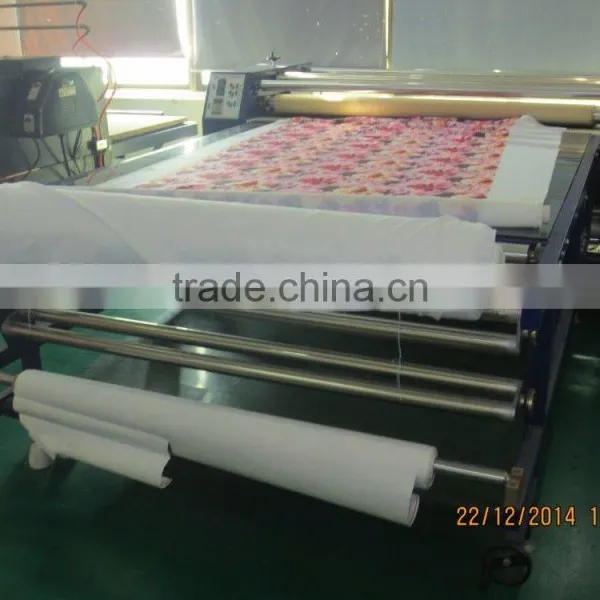

Rotary Heat Press for Dye Sublimation With Oil Drum Oil Heated

Roll-to-Roll Large Format heat transfer machine 1700Air (Oil-warming Machine)
The Large Format Roll to Roll heat transfer machine 1700 (oil-warming machine) is the new larger drum and  add platform type of heat transfer equipment, available for dye sublimation ink prints, oil heating. It fully represents the advantage of the speed and good elect in transfer printing. It adopts the oil heating mode to control the temperature, achieving speed in warming and good effect in the heat preservation, as well as improving the productivity. In addition, it has functions such as automatic blanket, automatic lifting backing paper and automatic rolling picture etc.
Specification:
Working width: 1700mm
Drum OD: 420mm
Speed: 0-4.2m/min
Power consumption:18Kw
Stainless steel Heater Qty: 12pcs
Rated current: 30A
Motor: 750w
Net Weight: 2000kg
Blanket: Φ3050X1820Xδ6mm
Max OD unwind/rewind: 300mm
Air expanded shaft of unwind for Prints and fabric/Others multi core shaft
