Automatic Roller Heat Press Machine Sealing Machine
US$ 5,900 - 9,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Flatbed Printer
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN/GUANGZHOU/HONGKONG
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Roller Sublimation Heat Transfer Machine for SaleUS$ 7,000 - 8,350MOQ: 1 Set -
Roller Sublimation Rotary Heat Press Transfer MachineUS$ 6,009 - 8,900MOQ: 1 Set
-
Sublimation Roll Heat Press 1.8m WideUS$ 5,450 - 6,460MOQ: 1 Set
-
Rotary Heat Press Machine for Sublimation, Heat Press Machine for SaleUS$ 6,800 - 12,500MOQ: 1 Unit
-
Roll Fabric Large Format Heat Transfer Machine for SaleUS$ 7,000 - 8,350MOQ: 1 Set
Condition
New
Plate Type
Flatbed Printer
Place of Origin
Guangdong, China
Brand Name
SHENGHUA
Model Number
CY-002
Usage
Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer
Automatic Grade
Automatic
Voltage
220V/380V
Gross Power
15kw 18kw
Dimensions(L*W*H)
214*107*159cm 267*117*164cm
Weight
795kg 890kg
Certification
CE,SGS
After-sales Service Provided
Overseas service center available
Product Description

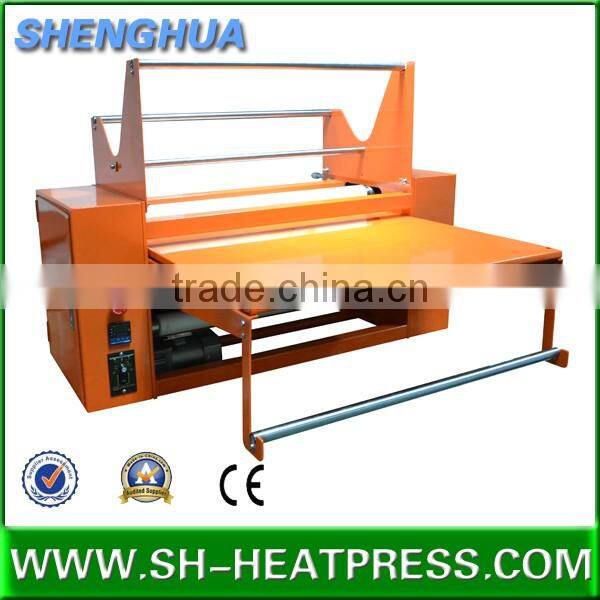

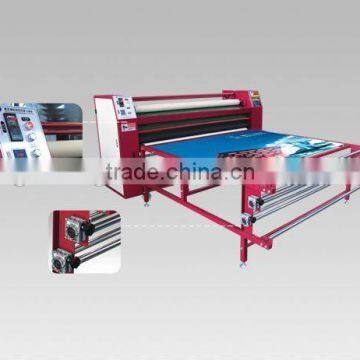

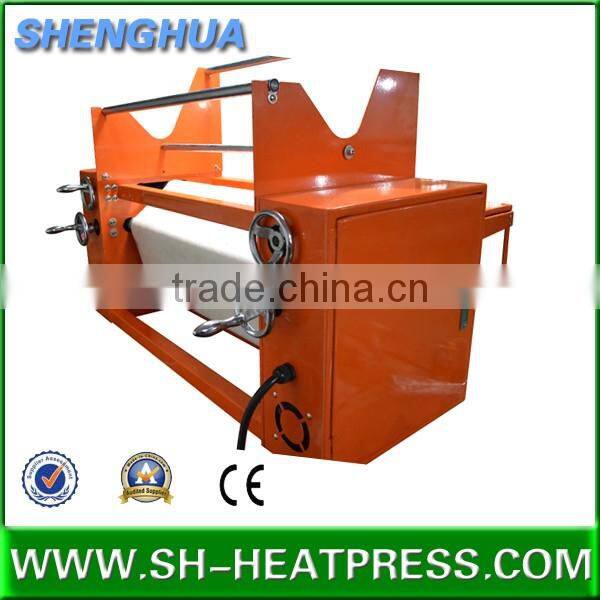

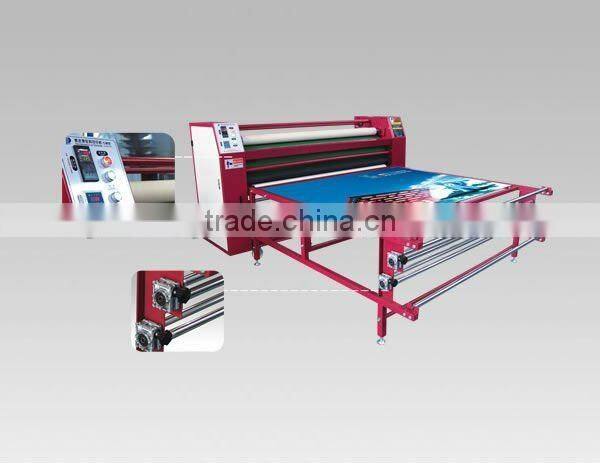

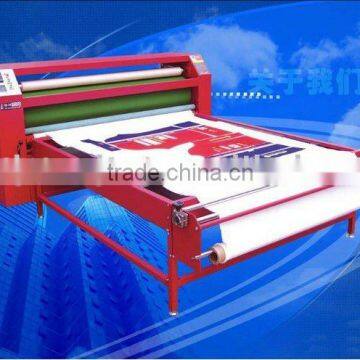

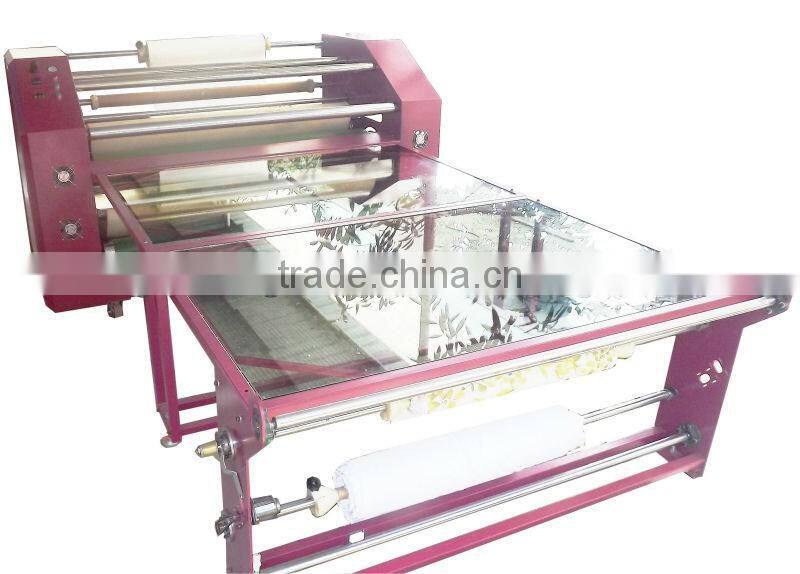

Automatic roller heat press machine sealing machine
Features:
1.The most advanced technology and high quality componients are adopted by machine, controlling system with automatic positioning, accuracy together with security, electronic constant temperature controlling with high accuracy, long service life and other features.
2. With automatic rewinding function, it is especially economical and practical to process heat sublimation transfer for whole cloth, fabric etc.
3. Heating wheel is controlled by sealed and heat-oil heating to efficiently ensure the even and stable temperature.
4. Printing speed is equipped with continuous speed adjustment system, feeding equipment is convenient for operation with swiftness and high reliability.
5. Equipped with continuous speed adjustment system, you can adjust printing speed as you need.The roller was heating up with oil and temperature heating system.
Operation :
Set the appropriate pressure, the pressure location to 3.5

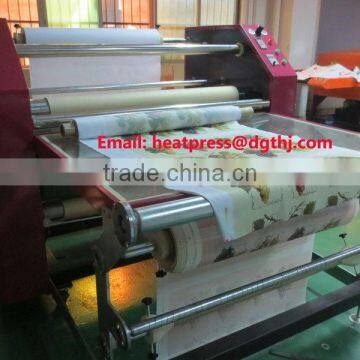

Pay attention to the position and size between fabric and printing paper, prevent pollution of belt or roller
If useing thin printing paper, please place the printing paper in the middle layer, thin printing paper will osmosis pattern
If using thick printing paper, it can be attached to the roller, fabric placed in the middle layer
Matching 1: Roller + Thick printing paper + Roll fabric or Rags + anti-pollution white paper
Matching 2: Roller + Roll fabric + Thin printing paper+ anti-pollution white paper
Matching 3: Roller + Thick printing paper + Rags + anti-pollution white paper
Matching 4: Roller + Anti-pollution white paper + Thin printing paper + Rags
Pay attention to the position and size between fabric and printing paper, prevent pollution of belt or roller
If useing thin printing paper, please place the printing paper in the middle layer, thin printing paper will osmosis pattern
If using thick printing paper, it can be attached to the roller, fabric placed in the middle layer
Matching 1: Roller + Thick printing paper + Roll fabric or Rags + anti-pollution white paper
Matching 2: Roller + Roll fabric + Thin printing paper+ anti-pollution white paper
Matching 3: Roller + Thick printing paper + Rags + anti-pollution white paper
Matching 4: Roller + Anti-pollution white paper + Thin printing paper + Rags
Adjust the layer of fabric and printing paper according to actual situation , avoid pollution

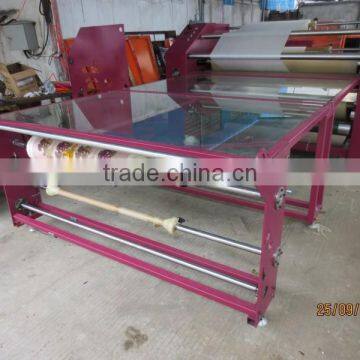

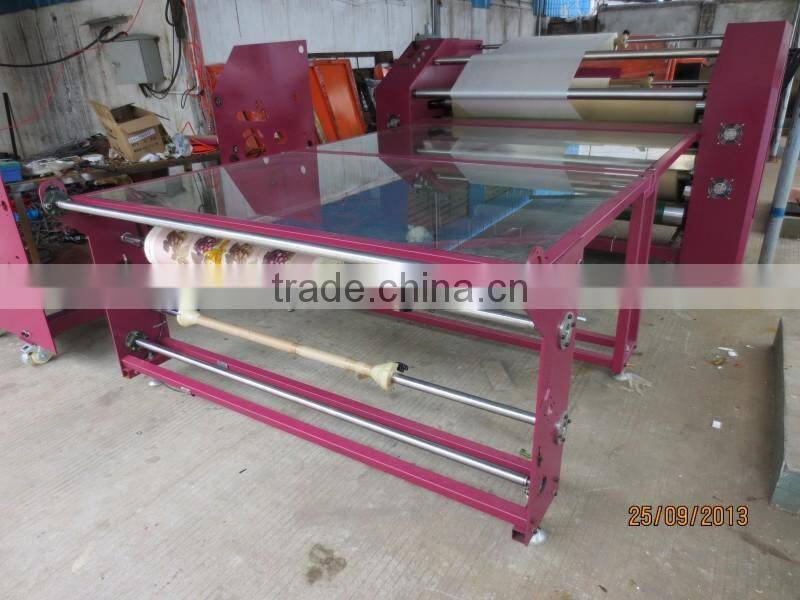

Operating table system can be flexibly disassemblied.
Operating table can be unfolded to install according to actual use

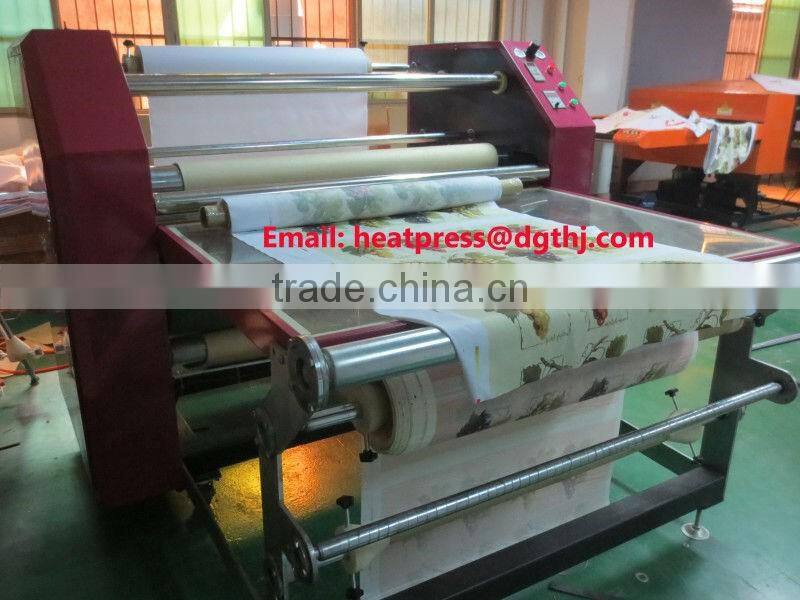

3 release 3 collect: white paper anti-pollution prevention system, fabric distributing system, printing paper system
The photoelectric induction cloth system supports elastic cloth hot stamping and avoids elongated fold.
Release system adopts friction resistance principle. If slip, please tighten pressure nut
Note: 1. Please shut off heating switch after work; 2.Only temperature drops below 180 degrees, it is available to completely shut off power supply
Safety first when machine working, hand touching forbidden after heating roller
Operating table system can be flexibly disassemblied.
Operating table can be unfolded to install according to actual use
3 release 3 collect: white paper anti-pollution prevention system, fabric distributing system, printing paper system
The photoelectric induction cloth system supports elastic cloth hot stamping and avoids elongated fold.
Release system adopts friction resistance principle. If slip, please tighten pressure nut
Note: 1. Please shut off heating switch after work; 2.Only temperature drops below 180 degrees, it is available to completely shut off power supply
Safety first when machine working, hand touching forbidden after heating roller

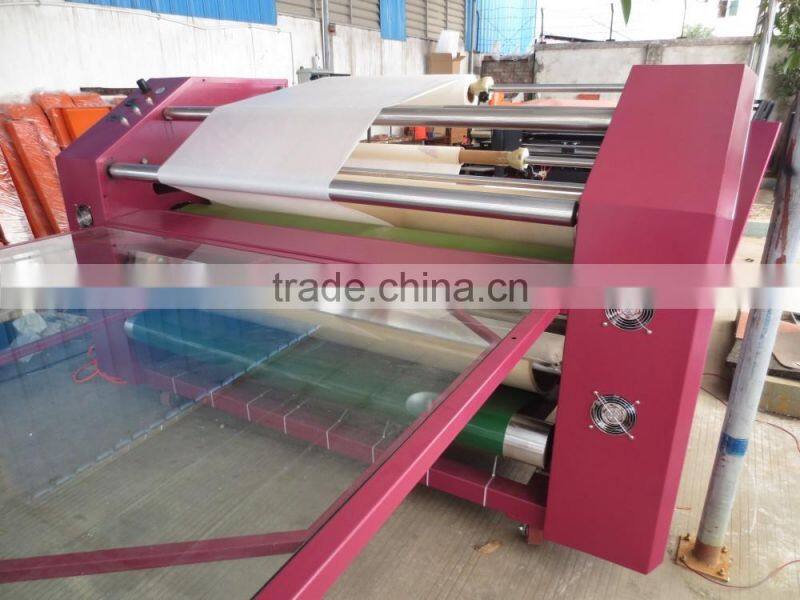

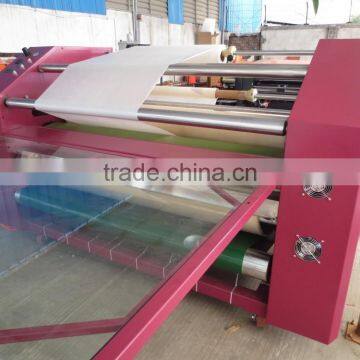

Green belt supports piece rear storage, avoid congestion
Both white blanket and green belt support deviation adjusting
When heating,please keep roller rotating, rotation speed is about 8HZ, high-speed rotation makes heating more slowly.
After place material, please cover the black cover.
The power is 14KW. the heating time is about 90mins .Please heat the machine ahead .
Multi heat pipe design,low power,heating is more uniform, and heat pipes have longer service life
Integral casting aluminum roller, free life-long maintenance, safe and durable
The temperature reaches the setting temperature after 10 minutes for best printing effect
When rotation speed is 50HZ, the transfer time is 13 seconds. Please adjust speed and temperature according to actual situation. Then batch production is available.
Both white blanket and green belt support deviation adjusting
When heating,please keep roller rotating, rotation speed is about 8HZ, high-speed rotation makes heating more slowly.
After place material, please cover the black cover.
The power is 14KW. the heating time is about 90mins .Please heat the machine ahead .
Multi heat pipe design,low power,heating is more uniform, and heat pipes have longer service life
Integral casting aluminum roller, free life-long maintenance, safe and durable
The temperature reaches the setting temperature after 10 minutes for best printing effect
When rotation speed is 50HZ, the transfer time is 13 seconds. Please adjust speed and temperature according to actual situation. Then batch production is available.
Regular maintenance, prolong lifespan
If you need machine video, data sheet, and user manaul, pls contact us!!

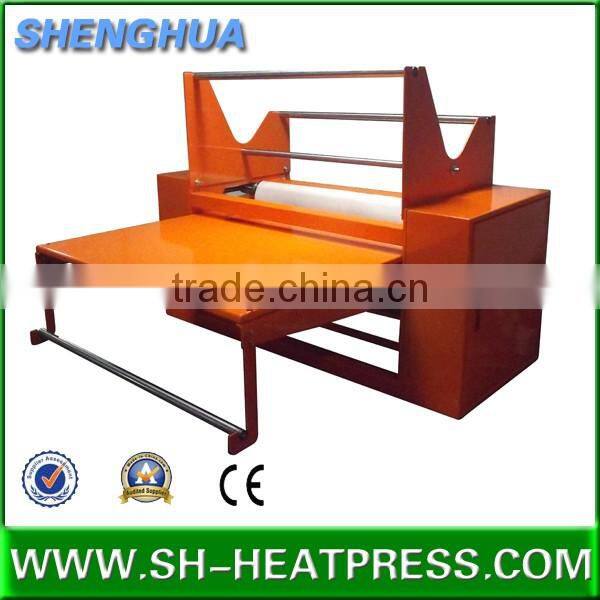

Different models, different printing area/platen size for you to choose!!
