Roller Sublimation Heat Press Transfer Machine Manufacturer

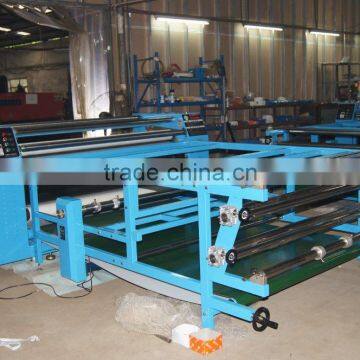

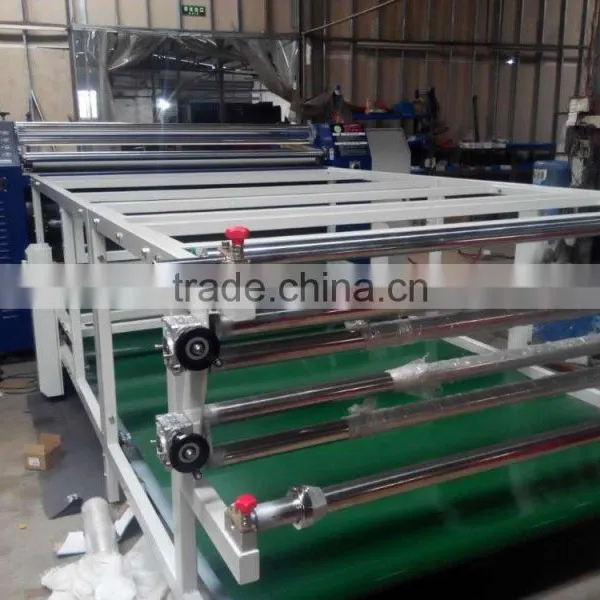

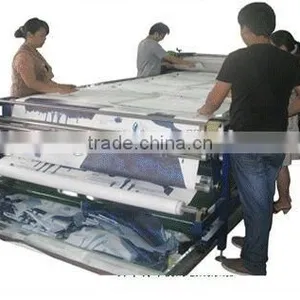

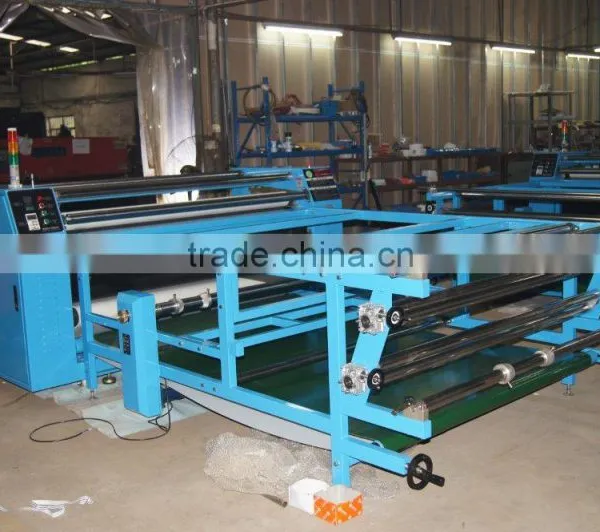

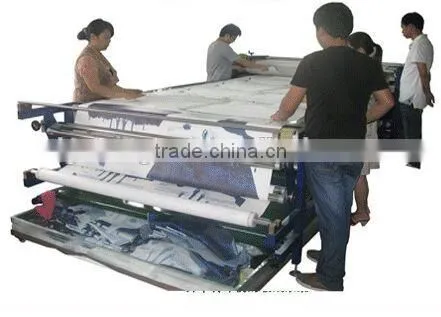

Roll-to-Roll Large Format heat transfer machine 1700Air (Oil-warming Machine)
The Large Format Roll to Roll heat transfer machine 1700 (oil-warming machine) is the new larger drum and  add platform type of heat transfer equipment, available for dye sublimation ink prints, oil heating. It fully represents the advantage of the speed and good elect in transfer printing. It adopts the oil heating mode to control the temperature, achieving speed in warming and good effect in the heat preservation, as well as improving the productivity. In addition, it has functions such as automatic blanket, automatic lifting backing paper and automatic rolling picture etc.

Specification:
Working width: 1700mm
Drum OD: 420mm
Speed: 0-4.2m/min
Power consumption:18Kw
Stainless steel Heater Qty: 12pcs
Rated current: 30A
Motor: 750w
Net Weight: 2000kg
Blanket: Φ3050X1820Xδ6mm
Max OD unwind/rewind: 300mm
Air expanded shaft of unwind for Prints and fabric/Others multi core shaft

FEATURES:

• Teflon coating heating roller, effectively prevent electrostatic interference in the transfer process,
• Brand thermal oil, heat stable and uniform;
• Adjustable blanket roller rack pressure mechanism, pressure adjustment is simple and convenient;
• Independent pneumatic booster agencies to ensure high - pressure environment transfer, to achieve high quality printing effect;
• Brand electrical components, long life, low failure rate;
• PVC conveyor belt, isolation paper reel, ribbon drive shaft speed can be independent and flexible adjustment;
• Precise temperature control system, the temperature difference in the range of 5 degrees;
• Tension adjustment structure, to ensure that the cloth and paper transfer process of tension balance.

Diferences between chrome-plated oil drum and Teflon-plated oil drum

 Roller seamless steel pipe made by turning, in order to improve its surface finish, usually to be chrome-plated. Chromium layer smooth, high hardness, long life, especially for high-precision textile transfer, but because the chrome layer is smooth, the pressure of each roller once the line speed is different, easily caused by graphic distortion, color distortion quality problems, due to Electrostatic impact, chrome layer is also very easy to glue the textile debris, causing product graphics faint. To this end BEST printing machinery in the field of the introduction of roller manufacturing Teflon coating technology, Teflon coating with a certain degree of flexibility, easy to compensate for the pressure roller between the line speed difference, to avoid graphic distortion.
