Large Format Manual Sublimation Heat Press 31"x39" Flat T-shirt Transfer Machine

Large Format Manual Sublimation Heat Press 31"x39" Flat T-shirt Transfer Machine photo-1
Large Format Manual Sublimation Heat Press 31"x39" Flat T-shirt Transfer Machine photo-2

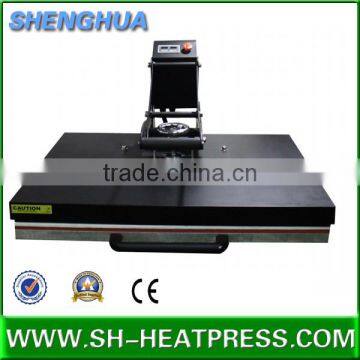

Large Format Manual Sublimation Heat Press 31"x39" Flat T-shirt Transfer Machine photo-3
Large Format Manual Sublimation Heat Press 31"x39" Flat T-shirt Transfer Machine photo-4
US$ 400 - 800 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Flatbed Printer
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Guangzhuo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Plate Type Flatbed Printer
Place of Origin Guangdong, China
Brand Name Shenghua
Model Number CY-G2
Usage Other, heat transfer press
Automatic Grade Other, MANUAL
Voltage 110V/60Hz & 220V/50Hz, 110V//220V
Gross Power 4000W
Dimensions(L*W*H) 88X95X65CM
Weight 120KG
Certification CE & SGS
After-sales Service Provided No overseas service provided

2016 high quality cheap price big size sublimation heat press transfer machine



Large manual heat press machine for print full size tshirt



Hot sale big size manual heat press machines in different sizes:

60*80cm, 60*100cm and 70*100cm.





Two in one time and temperature controller display, the temperature tolerance is -2 to +2 degree.

Aluminium heat plate ,Heating uniformity on the surface.

Teflon coated on the heat plate , convenient and attractive appearance.
Signal indicator when transfer press finish
The pressure can be adjust easily
The silicon pad can endure maximum 350 degree without any distortion.



Specification:

ModelCY-G2
Voltage110V/60Hz & 220V/50Hz
Power4000W
Working size80*60cm, 60*100cm, 70*100cm
Time rangeadjustable (0-999 SEC)
Temperature range0-399
PackingExport Wooden case
Packing size (CM)90*105*75CM
G.W. (kg)120KG, 136kg, 150kg





Product Characteristics



  1. 1. Digital 2in1 time and temperature controller .
  2. 2. Aluminium heat plate ,Heating uniformity on the surface.
  3. 3. Teflon coated on the heat plate , convenient and attractive appearance.
  4. 4. Signal indicator when transfer press finish .
  5. 5. The pressure can be adjust easily
  6. 6. The silicon pad can endure maximum 350 degree without any distortion

Maintenance:



1. If the pressure is not enough or too large , please adjust pressure adjuster ,(+) to increase the pressure , (-) to reduce the pressure

2. If the printed color not equality or the adhesion not good ?

First check the right set of temperature and the time , and increase the pressure

3.  If it is cold-ripping transfer paper , please use blackboard wiper to rub against the whole transfer paper , wait for 5-10secs ,then rip off the transfer paper . If it is the hot-ripping transfer paper, you can rip off immediately after printing.

Please note successful print requires right time and temperature and pressure , the thickness and material of the cloth ,even type of transfer paper and inks .
