MEGATRO 1000V 10A1 ZMJ angle and tension transmission tower

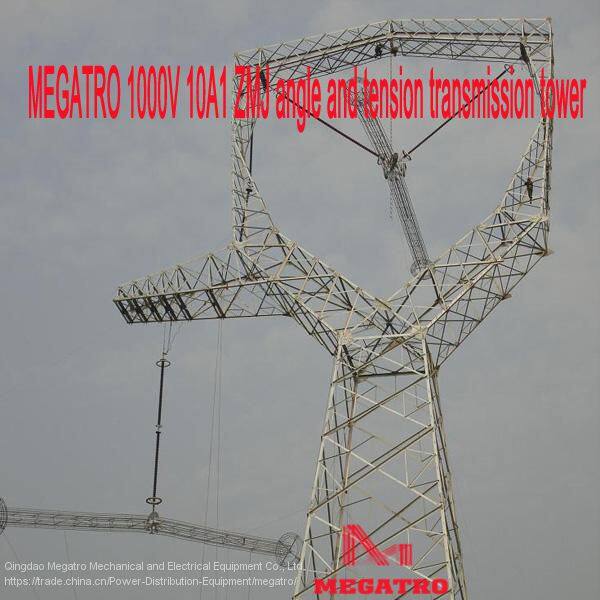

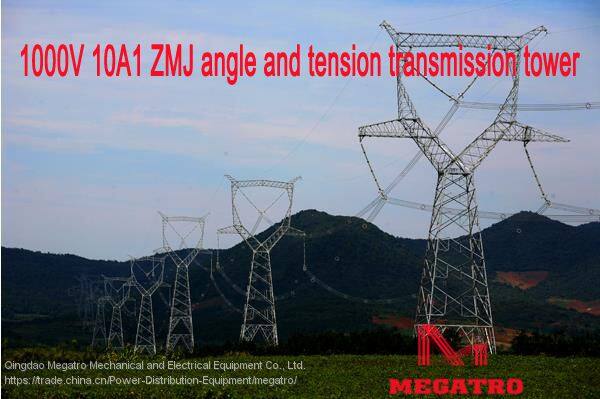

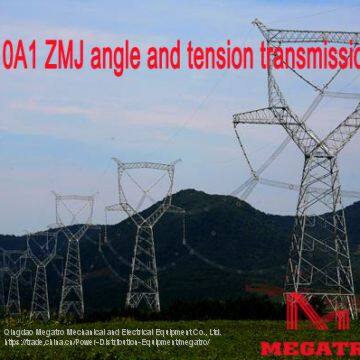

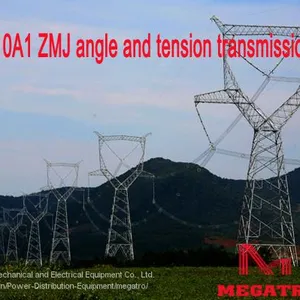

This photo refers to our 1000V 10A1 ZMJ angle and tension transmission tower, it is widely used in our Chinese market. Some of technical features of this tower as follow:

1 climate condition

Item

Temperature (℃)

Wind speed (m/s)

Ice thickness (mm)

Max. temperature

40

0

0

Mini. temperature

-20

0

0

Ice thickness

-5

10

10

Basic wind speed

-5

27

0

Installation condition

-10

10

0

Annual temperature

15

0

0

Lightning overvoltage

15

10

0

Operation overvoltage

15

16

0

2 Technical specification of conductor and OPGW



Item

Conductor

OPGW

JL/G1A-500/35

JLB20A-170



construction

AL

45×3.76


Steel(Al wrap steel )

7×2.51

19×3.4



Cross-section

(mm2)

Al

500.00

43.13

Steel

34.60

129.37

Total

535.00

172.5

Diameter

30.11

17.01

Length mass (kg/km)

1650.2

1152.0

Elastic module (MPa)

63000

147200

coefficient of linear expansion (1/℃)

20.9×10-6

13.0×10-6

Rated broken (N)

119410

203380

3 tower design data

Tower

type

Nominal

Height

Scope (mm)

Horizontal

span

(m)

Vertical

Span

(m)

Angle

º

Nominal height tower weight Kg

10A1   ZMJ

57

500

700

3～10

75752

4 type and force of conductor and OPGW



Power

voltage



1000KV





Conductor

type

8×JL/

GIA-500/35

Max. operation

Tension force

(KN/phase)



363.006



Un-balance

Stress value(%)



30

OPGW

Type

JLB20A-170

Max. operation

Tension force

(KN/pc)

56.827





Un-balance

Stress value(%)



40



5 Operation data



Item



Horizontal

span

(m)

Vertical

Span

(m)

Representative

Span (m)

Angle

º

Height

(m)



KV



data

500

700

400

3~10

57

0.75

6 loading data



Site   condition

Normal operation condition

Accident condition

Installation

condition

Uneven icing

Basic wind speed

Ice

Mini.

temperature

Non-

broken

broken

Climate condition

(t/v/b)

-5/27/0

-5/10/10

-150/0

-5/0/10

-5/10/0

-5/10/0

-5/10/10

Horizontal   loading

conductor

148366

81284

44529

44296

44296

57471

-----

Insulator

Power fitting

3768

364

0

0

0

364

-----

Jump & string

15873

181973

115397

115397

115397

193877

-----

OPGW

22555

27066

22555

22555

22555

22555

-----

Vertical   loading







conductor

8703

14155

8703

5703

5703

23147

-----

Insulator

Power fitting

310472

363024

253912

---

---

243968

-----

Jump & string

310472

363024

253912

---

---

243968

-----

OPGW

8703

14155

8703

8703

8703

23147

----

Climate condition

(t/v/b)

-5/27/0

-5/10/10

-150/0

-5/0/10

-5/10/0

-5/10/0

-5/10/10

Stress  force

conductor

One side

310472

363024

253912

---

---

243968

-----

The other side

310472

363024

253912

---

---

243968

-----

Stress differences

0

0

0

90758

0

-----

OPGW

One side

50372

56468

49851

---

---

47364

-----

The other side

50372

56468

49851

---

---

47364

-----

Stress differences

0

0

0

28240

0

-----














7 Foundation distance size



Nominal

Height   (m)

Foundation distance (mm)

Anchor bolt

Front

distance

Side

distance

Type and quantity

Distance /radius (mm)

Material

36

15360

15360



8×M68





S1=360  S2=210



Chinese type

35 steel

39

16200

16200

S1=360  S2=210

42

17040

17040

S1=360  S2=210

45

17880

17880

S1=360  S2=210



8 Foundation force

Nominal

Height (m)

Tx

Ty

T

Nx

Ny

N

36

754

613

3927

922

698

4825

39

733

589

3984

907

705

4901

42

752

616

4025

924

714

4970

45

745

616

4069

911
