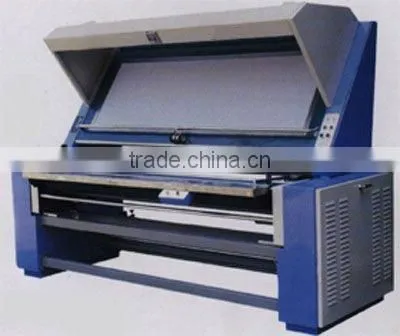

MB 551F Inspecting-rolling machineIs mainly used in cotton mill,printing-dyeing plantPURPOSE
MB 551F Inspecting-rolling machineIs mainly used in cotton mill,printing-dyeing plant, wool mill.garment factory, man-made fur tactory ,artificial leather factory and by commodity-inspection units for the inspection of the diverse fabrics and their full-width rolling.It allows to feed the fabrics in foll or folded way. Especially it is good for the inspecting and rolling of export fabrics.
FEATURES
1.Frequency variation stepless speed adjustment for controlling the inspection & rolling speed.
2.Photoelectric control for automatic edge-alignment.
3. Correctable electronic length-measuring meter(available of counting in metre ,yard, totalization and automatic stop functions, also displays linear speed , shift of inspecting and rolling)
4.Pioneering system in China-a roller speed differential device for free adjustment
5.of the tension of the fabrics under inspecting and rolling.
May be optionally fitted with an edge suction device.
May be optionally fitted with an automatic stopper in case of fabric feeding bredkage.
May be optionally fitted with imported or China made length and defect point printer or barcode printer.
May be optionally fitted with imported or China-made automatic or manual cutter.
May be optionally fitted with computer interface to effect the computer nte connection also optionally fitted with software for the finished products workshop,finished warehouse management to effect a database management over the warehouse-in/out of the finished products and their indexing.
SPECIFICATIONS |
|
Model no |
MB 551F |
Max diameter of fabric rolls |
350mm -800mm (at choice) |
Working width |
1800mm -3200mm ( at choice ) |
Speed of rolling |
9 -90m /min(stepless) |
Edge-ailiging error for reeling |
≤ 6mm |
Max.error for fabric length counting |
0.5% |
Dimensions(L X W X H) |
2430 × 2200 × 2000mm (180) |
Weight |
1000kg |
Working with up 4000mm
