Large Power Screening Lentil Agricultural Processing Machine

Large power screening lentil agricultural processing machine

Product Description

Cereal seeds selection rate more than 95% selection machine is the multi functional grain cleaner sorting separating dust machine which working on gravity platform combine the air blower and different screen decks. It is mainly used for sieving and cleaning of the grain seeds like wheat, barley, corn, beans, paddy, cotton seed and camellia.It is to clean dust, leaf, light impurities and separate the grain seed in three grades: big size, medium size and small size. This machine can also separate the moldy empty seed and stone which has different size with grain seed. It's cleaning rate could be 98%.

TIPS:Cleaning is the removal of foreign substances and impurities in the material;Classification refers to the classification of materials according to their size, shape, density or quality.

Working Principle

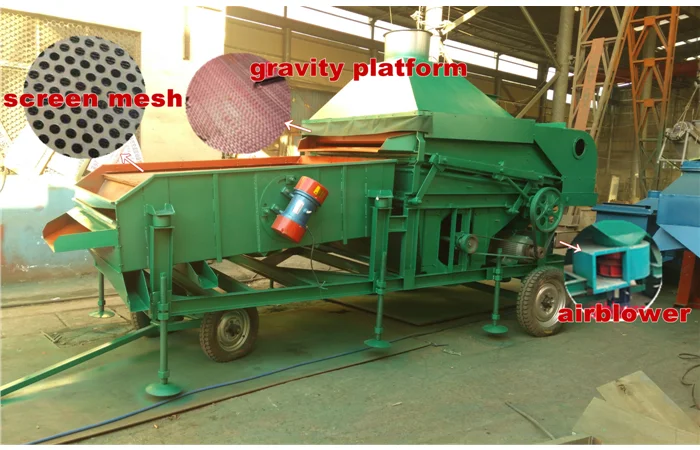

Feeding the grain material by grain auger /belt conveyor/ bucket elevator into the grain cleaner inside, the light impurities can be sucked out by air blower and top axial flow fan system; After that the gravity platform will make good seed and bad seed separate by different weight; The heavy seed move to the triple screen decks while the light bad seed go back and sucked out by back air blower system. Working on by the vibration motor, the triple screen decks will sorting the seed by its different seed size. Then the good cleaning seeds will be discharged from 2 layer outlet, and the large and small impurities will be removed and separated into different levels and be out from different dust outlet.

Working Procedure

1st procedure for impurities removing and separation: Forced by the gravity and vibration, the grain materials is forward to the 1st screening surface for sieving and grading, and the impurities is backward to the impurities outlet.

2nd procedure for grain and impurities separation: The grain particles is sieved from 1st screen surface to the 2nd surface. The hole size of screen mesh is equal to the grain particle size, in this case, the small impurities and the broken grains will be sieved to the 3rd screen surface,the refined grain particles will forward to the finished product outlet for packing or conveying to the grain depot.

3rd procedure for tiny impurities and broken grain separation: The hole size of the 3rd mesh is only for passing the tiny impurities and food debris and then to the impurities outlet. And the small grain particles will forward to the outlet for bagging.

Machine Working Performance

After processed by Grain cleaning machine,grains will more clean and quality will be improved. It will be better for both next milling procedure or selling in the market, which make it becomes one of the most favorite grain cleaners in the global market.

The grain classifier has a wide application for paddy seeds, corns, wheat, sorghum, millet, rape seeds, sunflower seeds, beans, also for remove the impurities husks or the sand from the chemical particles and so on. It is widely applied in the livestock breeding, grain depot, small farm, small feed producing company, grain and cooking oil processing factory, wind plant, chemical plant and pharmaceutical factory etc.

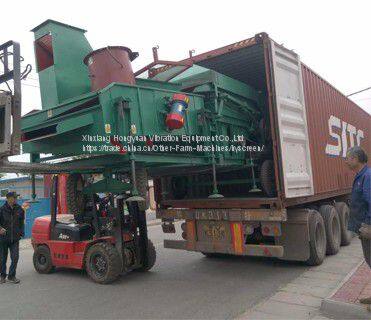

Deliever
