USB interface ALLEN BRADLEY SLC 5/03,5/04,5/05 PLC programming adapter
Introduction

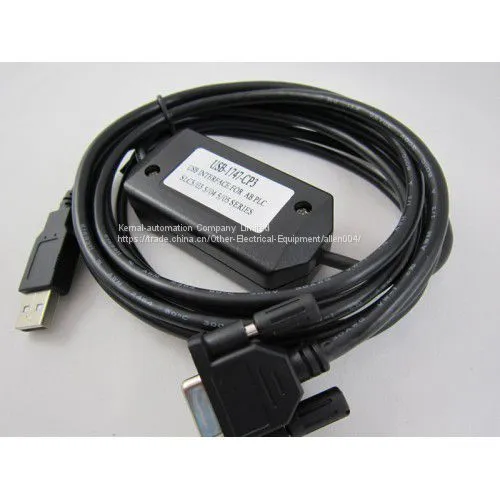

USB-1747-CP3 programming cable simulates the computer's USB interface as
the traditional serial (known as COM interface), thus various existing
programming softwares,communication softwares, monitoring softwares and
other applications can be normally used. The two-color LED on the converter
box indicates data’s transceiving status.
USB-1747-CP3 programming cable is applicable to Allen Bradley SLC 5/03、
5/04、5/05 PLC.
USB-1747-CP3 principle and figure structure:
Functions
●Support USB-1747-CP3 operating system: Windows2000/XP
(WinNT4/95/98/Me/DOS not included)
● support USB-1747-CP3 programming software version:RS Logix 500
and above
● fully compatible with USB 2.0 standard
● USB bus-powered, the current consumption of about 50 mA
● each PC only supports a USB cable programming
● temperature: -20 ~ +75 ℃
● Cable length: three meters, colors: black
System requirement
Please make sure your PC is IBM PC compatible and has the following
system requirements before using the USB programming cable.
● Intel is compatible with 586DX4-100MHz CPU or higher
● A standard USB port (4-pin A plug)
● Operating system is Windows2000 or Windows XP
Setting of RSLogix
After completing Driver installation, the corresponding COM port for the
USB-1747-CP3 programming cable will be displayed in the “Device Manager”
of Window. The step next is just to choose this COM port in the programming
software and other application software and keep other communication
parameters as in the Default settings. And the following steps are exactly the
same as in the traditional programming cables with RS232 interfaces.
