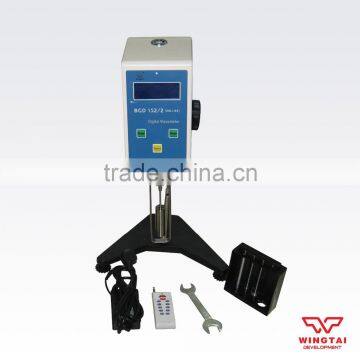

152/2 Digital ViscosimeterUS$ 984 - 1,015MOQ: 1 Unit -
Digital Rotating Viscometer 155US$ 984 - 1,015MOQ: 1 Unit
-
Digital Display Krebs Viscometer 186US$ 963 - 1,008MOQ: 1 Unit
-
AARON Printing Ink Zahn CupUS$ 68 - 70MOQ: 1 Unit
-
Stormer Viscometer BGD 186 Viscosity Meter For PaintUS$ 963 - 1,008MOQ: 1 Unit

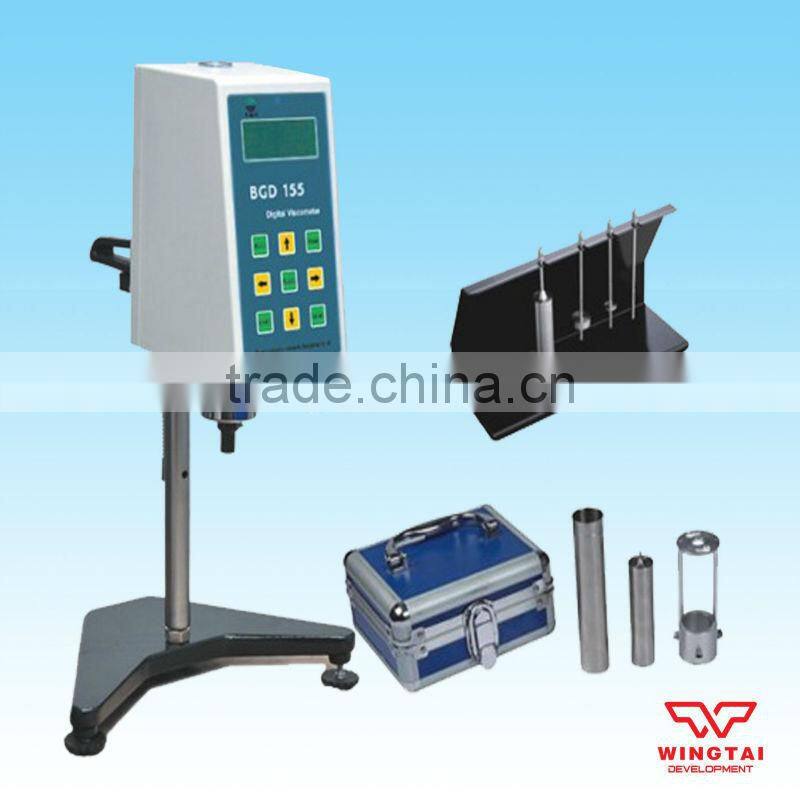

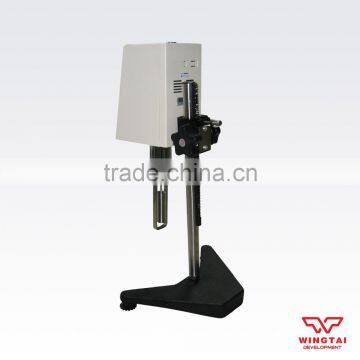

Intelligentized Digital Rotational Viscometer (155-2)
155 series of intelligent digital viscometer is our newly developed product, its speed can realize gearless drive gear, can be quickly and accurately measuring the viscosity of the sample
1.The single use, also can be connected to a miniature printer and computer data acquisition.
2.Of humane, personalized design, speed stepless set.
3.May synchronous display speed, rotor number, viscosity, temperature, torque.
4.May purchase SNB data collection and mapping software for data collection and data analysis, can buy miniature monochrome printer to achieve timing print measurement results.
5.Instrumental full range, the profile of linearity all through the computer interface measurement correction, the measurement of performance, functional reach the same type of foreign advanced level.
6.The built-in RTD temperature probe real-time monitoring the temperature of the sample, a precision of 0.1°C, the temperature range of 0-100°C.
7.The optional remote control operation device, realize the non-contact operation viscometer, operation more simple and convenient, and can reduce the error caused by the contact type touch.
8.Adopting 16 bit microcomputer processor as the core, high subdivision drive stepper motor, digital liquid crystal with a blue backlight.
9.According to need can choose different standard rotor.
10.According to need to buy Bureau of standard substance to correct the viscometer, which makes the testing standards and international standards.
The main technical parameters:
Ordering information | 155/1 | 155/2 | 155/3 |
Measuring range ( mPa ·s ) | 10-600,000 | 10-6,000,000 | 100-80,000,000 |
Rotor speed ( R/M ) | 1-60;Continuously variable transmission ( no gear drive ) | 0.1-99.9; Continuously variable transmission ( no gear drive ) | |
Standard rotor number | 4 ( 1#, 2#, 3#, 4# ) | ||
Accuracy of measurement | ±1.0%( full range ) | ||
Reproducibility | 0.5%( full range ) | ||
Power supply | 220V/50Hz | ||
Optional accessories | Ultra low viscosity adapter ( 0 rotor ); printer; the constant temperature water tank; the RTD temperature probe; remote control; BGD data collection and mapping software; small sample adapter ( 21# configuration, 27#, 28#, 29# rotor; standard oil Note: if selecting small sample adapter, the instrument will by the standard 1#, 2#, 3#, 4# rotor to configure 21#, 27#, 28#, 29#, rotor, if there is a need for more rotor, when ordering in particular. | ||
It can be used to measure the liquid viscous force and the absolute viscosity. Widely used in grease, paint, food, drugs, adhesives, cosmetics and other industries and research institutes.
| | |
| Ford Cup 4 Viscosity With Holder | Ford Viscosity Cup For Ink,Glue | Din 4 Viscosity Cup For Paints |
| | |
| Aluminum Alloy Paint Viscosity Cup | Ink Din 4 Viscosity Cup | Stainless Steel TOYO Viscosity Flow Cup |
| | |

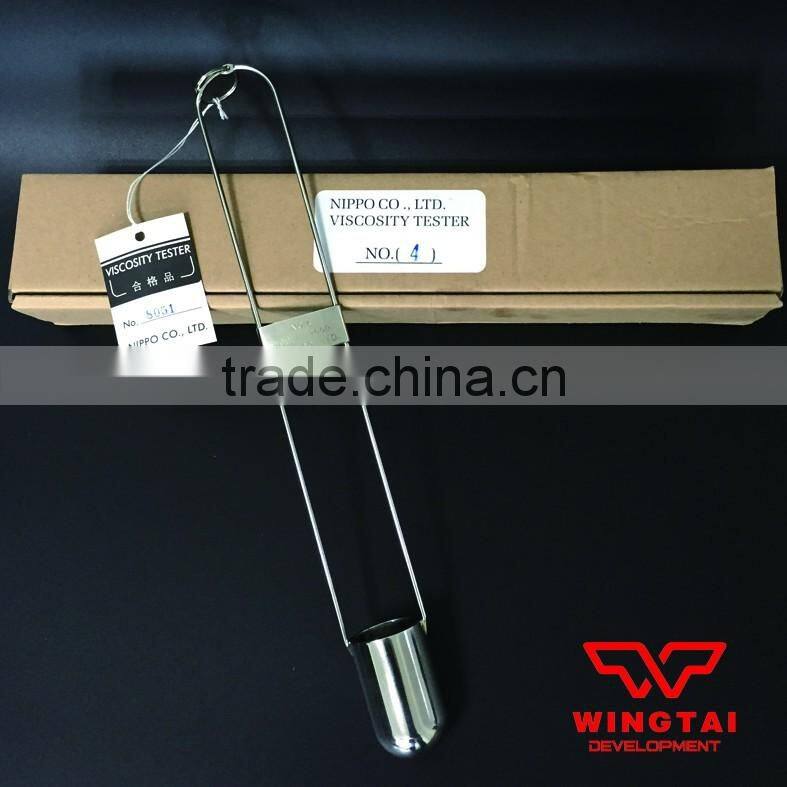

| NIPPO Ink Flow Viscosity Cup | AARON Printing Ink Zahn Cup | Japan NK2 IWATA CUP |
