Nitto Heat Resistant Masking Tape 973UL-S
A good performance of protect from electric leakage, contribute to freedom of electric machine design and miniaturization
Overview
Used in glass fiber brie infiltration tetra fluoride ethylene resin (PTFE) dispersion solution formed after the firing of the material substrate. The single-sided tape to the surface treatment, coated with silicone-based adhesive with excellent heat resistance and mechanical strength.
• Environmentally friendly products.
• Has a good off models and smoothness.
• Has good heat retention and dimensional stability.
• Non-adhesive surface with electrical characteristics, heat resistance, weather resistance, chemical resistance, water resistance (waterproof), low coefficient of friction, adhesion and other four non-fluorinated ethylene resin possess good properties.
• Scope of application: used for Heatproof, Masking; Heat sealing; Heat-resistant electric appliance insulation
• Widely used in the pharmacy industry, food industry, printing industry, industry, chemical industry, etc
• Paste with electronic tape and sticky mat heat-resistant cloth, make the seal of film bag arranged a bump symmetrical mark lines, increase the beauty of packing bag forming.
Structure
Specification
Model | color | Specification | Short-term heat resistance (℃) | Continuous use temperature(℃) | ||
Thickness (mm) | Width(mm) | Length (m) | ||||
No.973UL-S | Beige | 0.13 | 10 | 10 | 300℃ | -60~260℃ |
No.973UL-S | Beige | 0.13 | 13 | 10 | 300℃ | -60~260℃ |
No.973UL-S | Beige | 0.13 | 15 | 10 | 300℃ | -60~260℃ |
No.973UL-S | Beige | 0.13 | 19 | 10 | 300℃ | -60~260℃ |
No.973UL-S | Beige | 0.13 | 25 | 10 | 300℃ | -60~260℃ |
No.973UL-S | Beige | 0.13 | 38 | 10 | 300℃ | -60~260℃ |
No.973UL-S | Beige | 0.13 | 50 | 10 | 300℃ | -60~260℃ |
No.973UL-S | Beige | 0.13 | 75 | 10 | 300℃ | -60~260℃ |
No.973UL-S | Beige | 0.13 | 100 | 10 | 300℃ | -60~260℃ |
No.973UL-S | Beige | 0.13 | 300 | 10 | 300℃ | -60~260℃ |
No.973UL-S | Beige | 0.13 | 600 | 10 | 300℃ | -60~260℃ |
No.973UL | Beige | 0.18 | 19 | 10 | 300℃ | -60~260℃ |
No.973UL | Beige | 0.18 | 25 | 10 | 300℃ | -60~260℃ |
No.973UL | Beige | 0.18 | 50 | 10 | 300℃ | -60~260℃ |
Characteristics
Model | Substrate thickness [mm] | Tensile strength [N/19mm] | Breakdown Voltage[N/19mm] |
No.973UL-S | 0.13 | 6.8 | 240 |
No.973UL | 0.18 | 11 | 670 |
Test methods | JIS C 2107(Ref.) | ||
The above data is only an example of the measured values, not guaranteed values
Usages
• For the heat-resistant masking
• For heat sealing
• For the heat-resistant electrical insulation
For more product's and info, please kindly contact us.:)
|
|
|

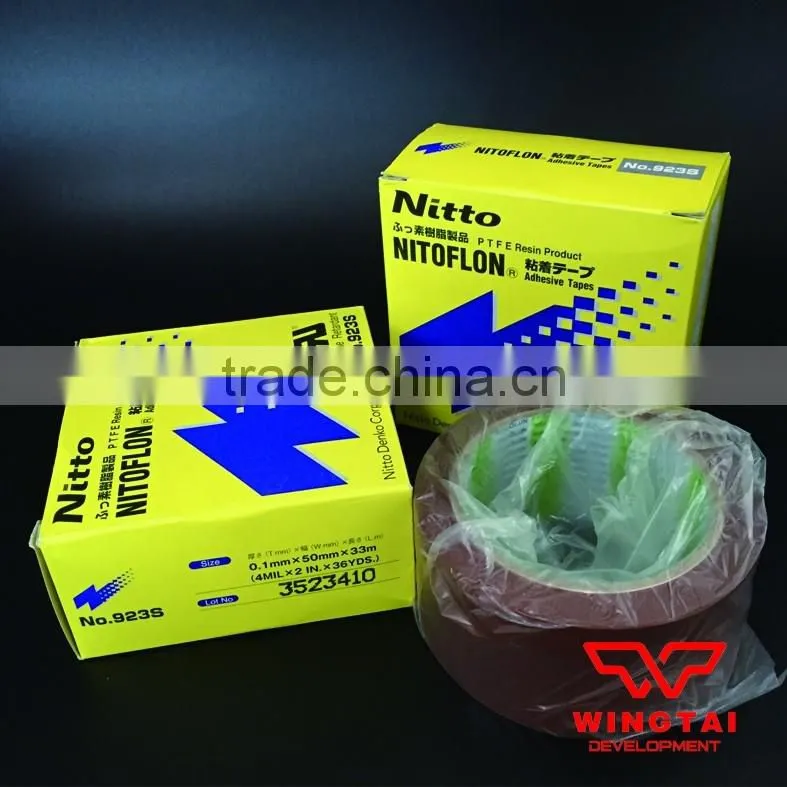

NITTO DENKO Adhesive Tape 903UL | Nitto Denko 923S PTFE Heat Resistant Tape | Nitto Denko Japan 970-2UL Fiberglass Tape |
| | |
| Nitto 975 Electrical Insulation Tape | 3M CIP36 PTFE Glass cloth tape | TOFO High Temperature Resistant Adhesive Tape
|
| |
|

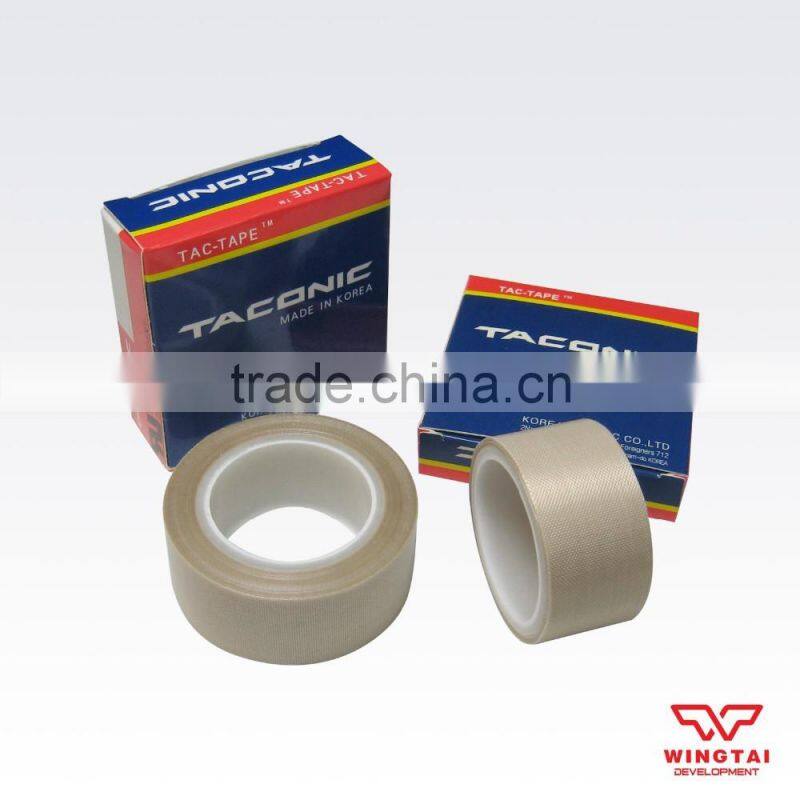

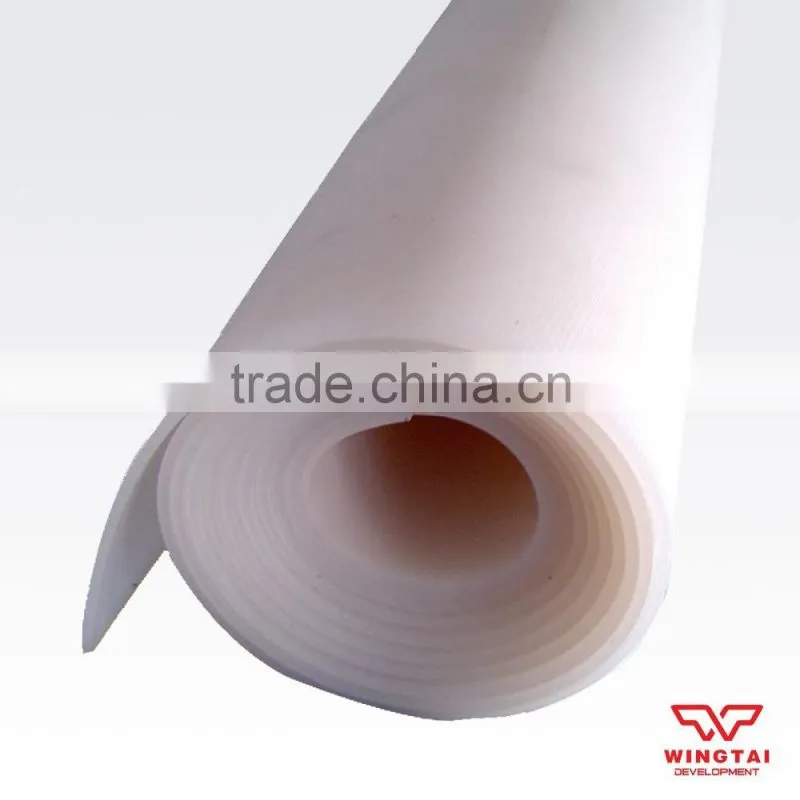

| TACONIC PTFE Coated Glass Fiber Adhesive Tape | PTFE High Temperature Adhesive Cloth Sheet | Heat resistance silicon gel plate |
