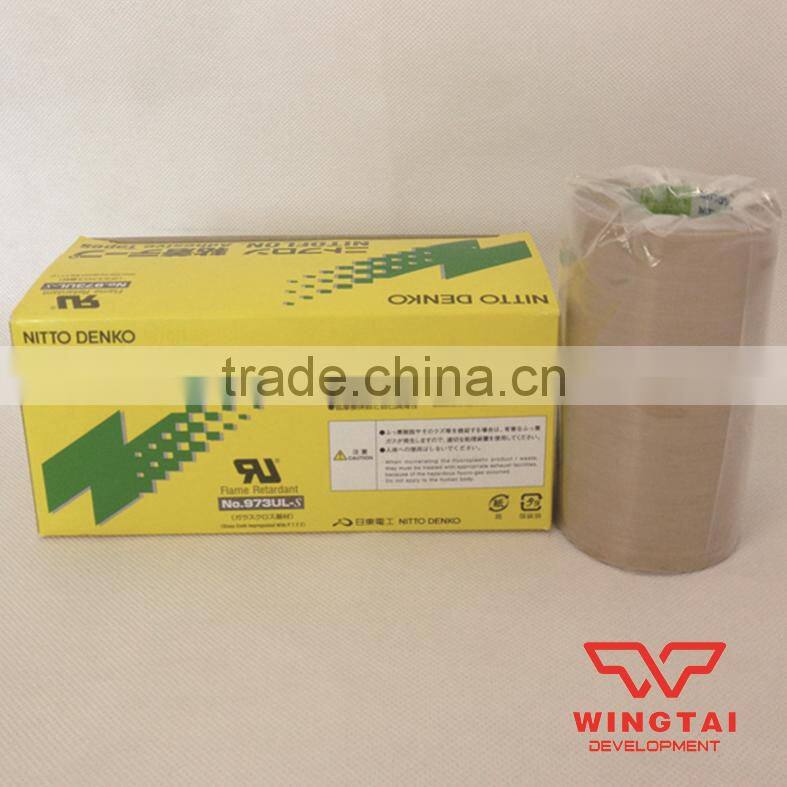

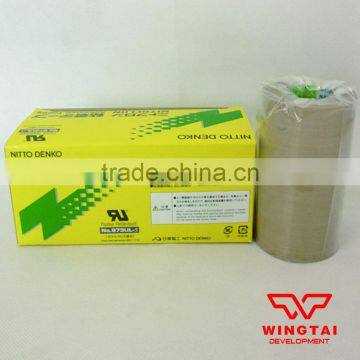

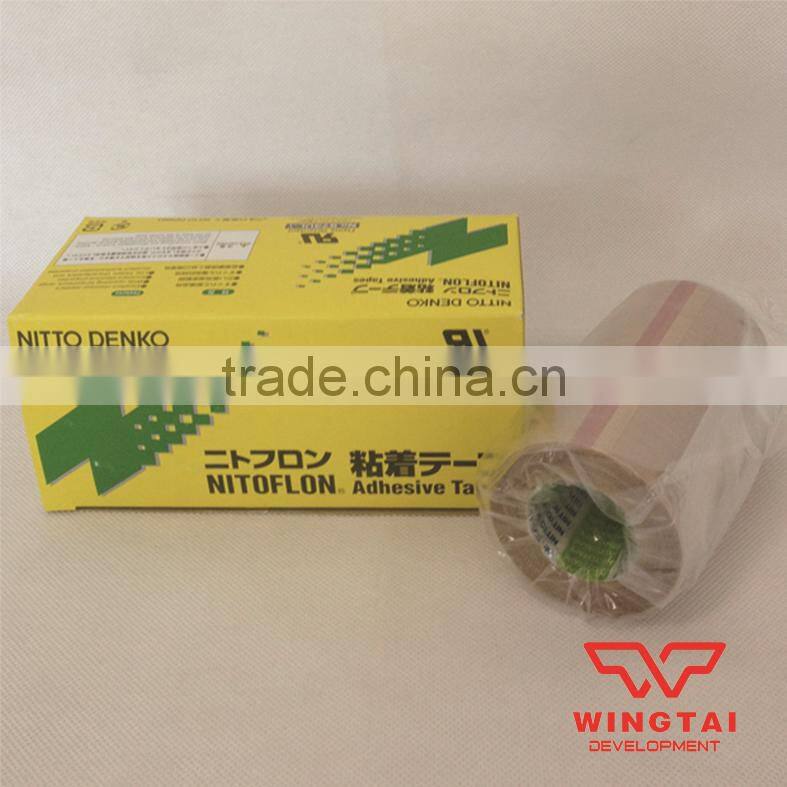

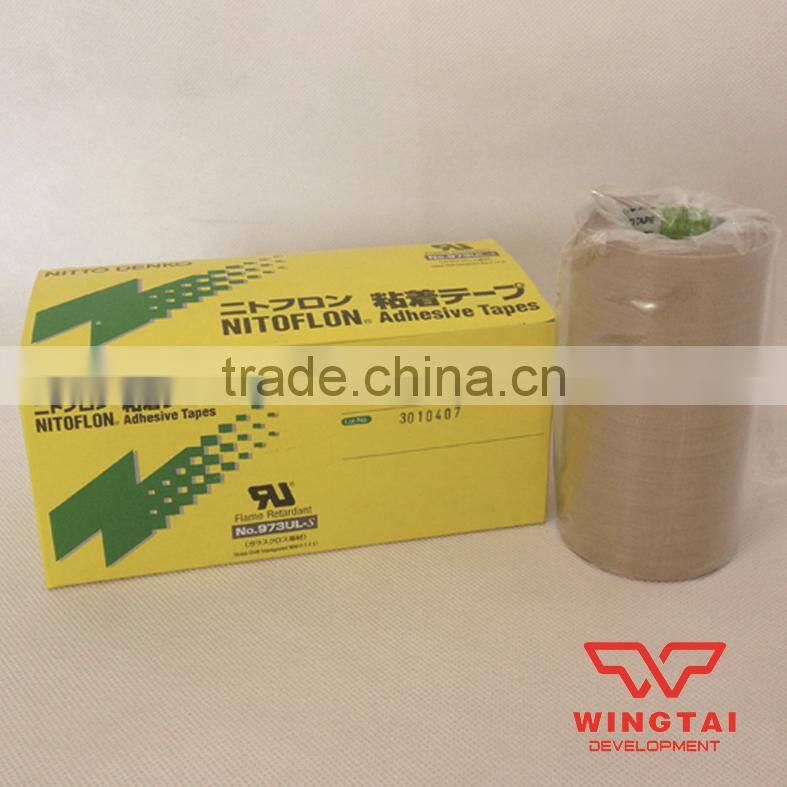

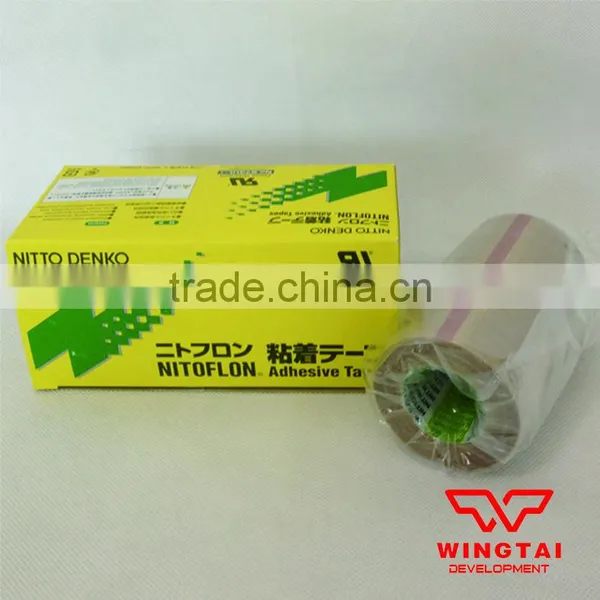

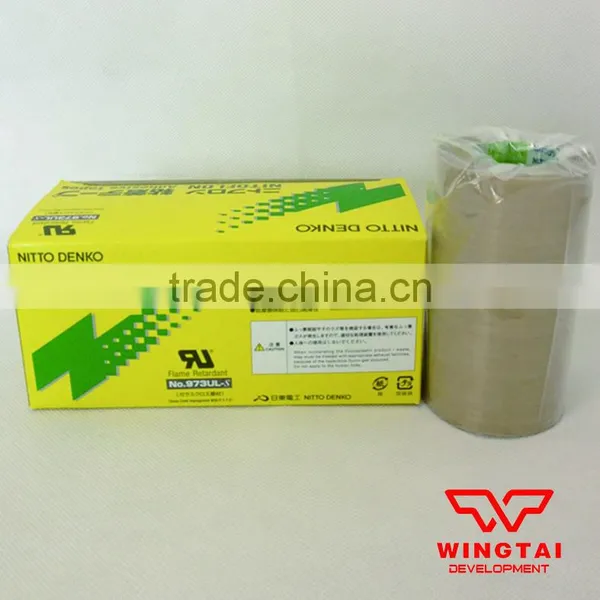

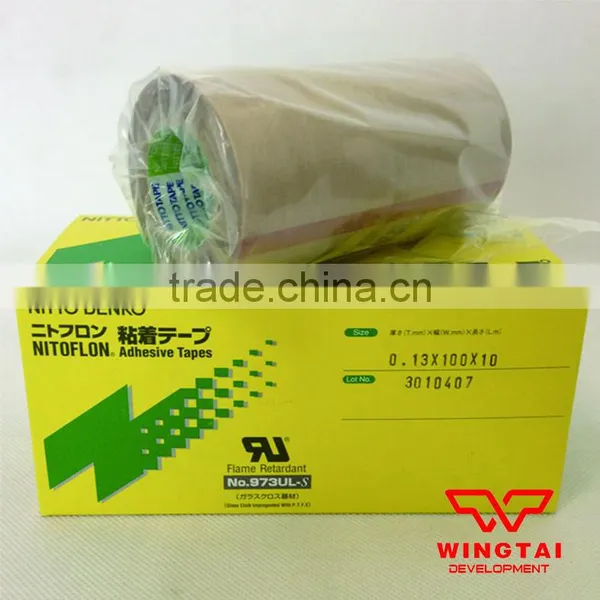

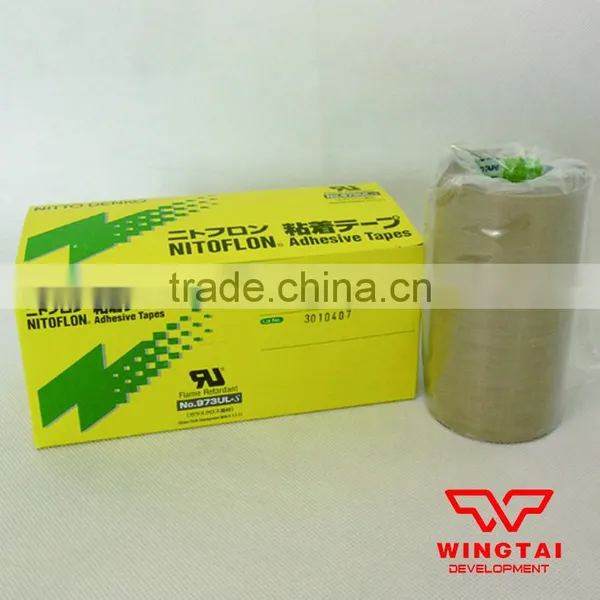

NITTO DENKO Heat Resistant Adhesive Tapes 973UL-S
denko 973UL-S electrical insulation silicone Tape
NITTO DENKO high temperature tape is high-temperature super-tack electronic tape imported from Japan.
It’s top quality, stability and durability, a variety of model specifications. This tape is widely used in high-temperature enveloping, blanching combined equipment.
It can resist higher temperature and more cold than common tape. In continuous use, the temperature range is -100-260 degrees Celsius, melting point up to 327 degrees, low friction, and good lubricity; on the high voltage insulator with good effect; on the chemicals or solvents not Chemical reaction; and has anti-light, anti-oxidation effect; good stickiness. Other features are wear-resisting, anti-pressure, anti-erosive, anti-microwave, high temperature resistant, anti-rubbing, slippery, sticking firmly.
Brand: NITTO DENKO
Origin: Japan
Stickiness attribute: Silicone
Long-term temperature resistant: -50/250 ° C, short-term temperature resistant: -50/300 ° C,
Tensile strength: (n / cm) 135-150;
Adhesion: (n/25mm)> 6.5,
Hot resistant, shelter; heat seal; heat electrical insulation;
Widely used in the pharmaceutical industry, food industry, printing industry, industrial, chemical and other fields.
The product is mainly used for bag sealing machine.
Specification
Model |
color |
Substrate |
Short-term heat resistance (℃) |
Continuous use temperature(℃) |
||
Thickness (mm) |
Width(mm) |
Length (m) |
||||
No.973UL-S |
Beige |
0.13 |
13 |
10 |
300℃ |
-60~280℃ |
No.973UL-S |
Beige |
0.13 |
19 |
10 |
300℃ |
-60~280℃ |
No.973UL-S |
Beige |
0.13 |
25 |
10 |
300℃ |
-60~280℃ |
No.973UL-S |
Beige |
0.13 |
38 |
10 |
300℃ |
-60~280℃ |
No.973UL-S |
Beige |
0.13 |
50 |
10 |
300℃ |
-60~280℃ |
No.973UL-S |
Beige |
0.13 |
75 |
10 |
300℃ |
-60~280℃ |
No.973UL-S |
Beige |
0.13 |
100 |
10 |
300℃ |
-60~280℃ |
No.973UL-S |
Beige |
0.13 |
300 |
10 |
300℃ |
-60~280℃ |
No.973UL-S |
Beige |
0.13 |
600 |
10 |
300℃ |
-60~280℃ |
No.973UL-S |
Beige |
0.18 |
50 |
10 |
300℃ |
-60~280℃ |
Characteristic:
Model |
Substrate thickness [mm] |
Tensile strength [N/19mm] |
Breakdown Voltage[N/19mm] |
No.973UL-S |
0.13 |
6.8 |
240 |
No.973UL |
0.18 |
11 |
670 |
Test methods |
JIS C 2107(Ref.) |
||
Detail:
|
|
|
