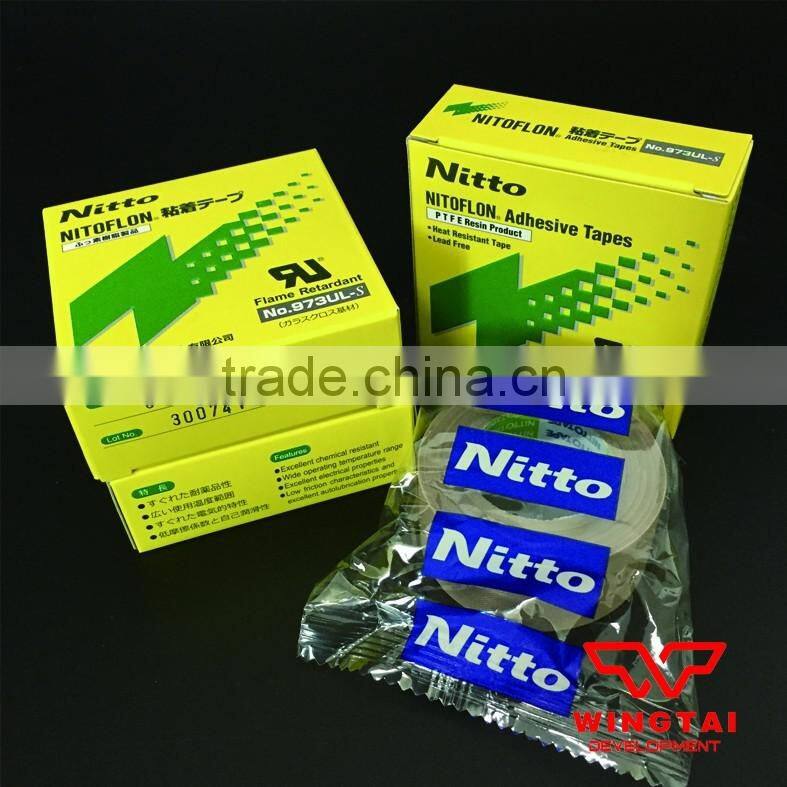

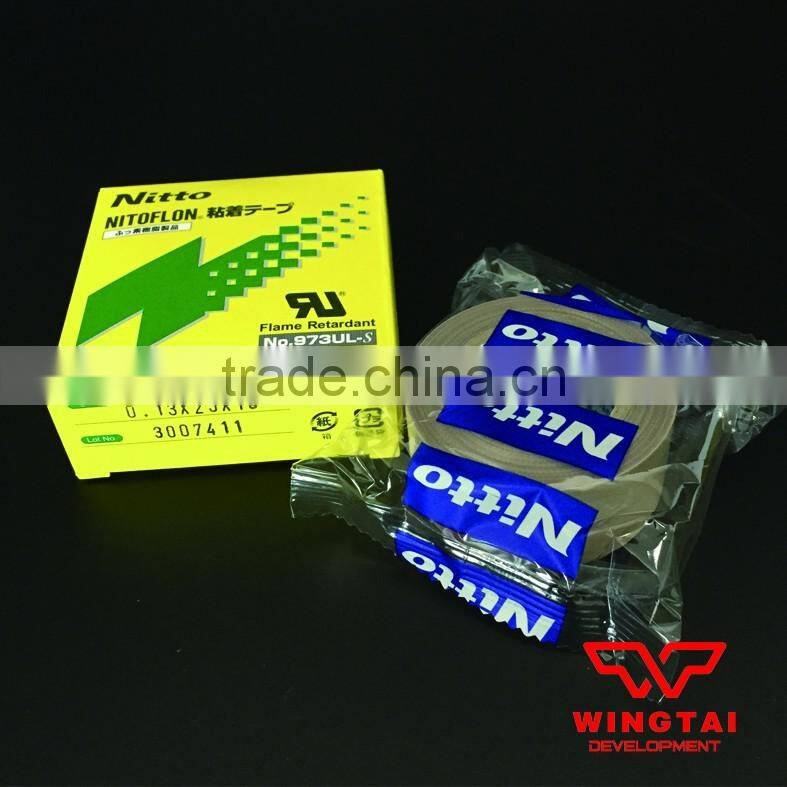

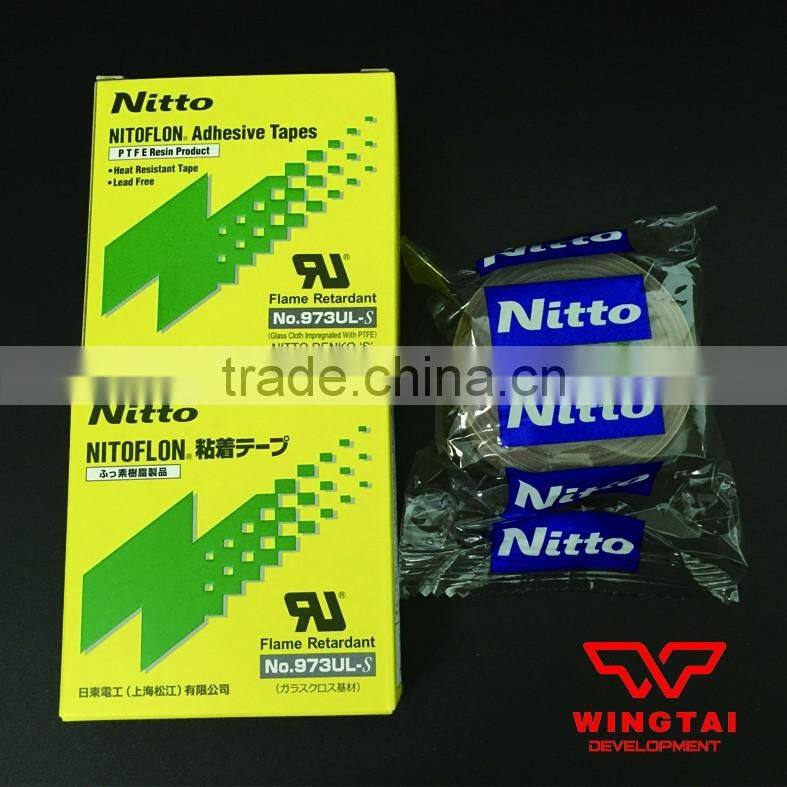

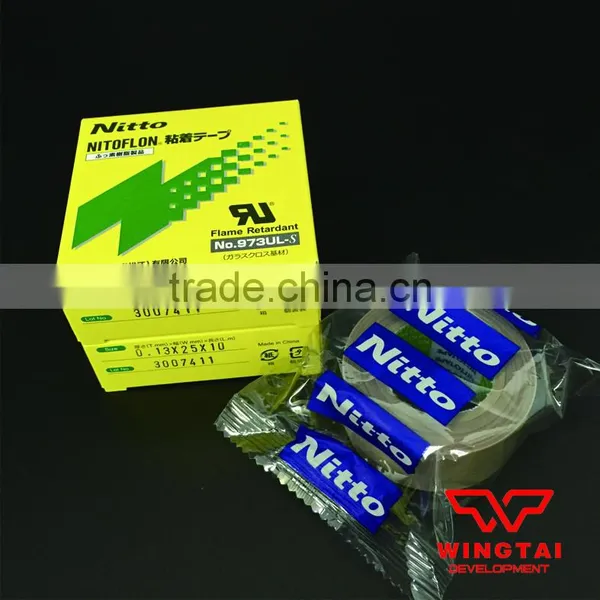

Made in Japan Nitto Nitoflon 973ul-s Heat Resistant Tape
NITOFLON Fluoroplastic-impregnated Glass-cloth Adhesive Tape No.973UL
Outline
Glass cloth base material impregnated with polytetrafluoroethylene (PTFE) dispersion then sintered. Single surface treated and coated with a silicone adhesive, which exhibits excellent heat resistance and mechanical strength.
Features
1,Superior mold-releasing and sliding properties.
2, Good holding property at elevated temperatures and dimensional stability.
3,The non-adhesive side exhibits excellent characteristics of polytetrafluoroethylene such as electrical properties, resistance to heat, weather, chemical, and water (water-shedding), and non-adhesiveness.
Applications
1,Heat-resistant insulation
2,Heat-resistant lubricants for heat sealing
3,Chute and hopper linings
4,Surface coating of sizing rolls for dying and resin treatment
Widely used in the pharmaceutical industry, food industry, printing industry, industry, chemical industry
General Properties
Item |
Unit |
No.973UL-S |
No.973UL |
Test Method |
||
Thickness |
mm |
0.13 |
0.15 |
0.18 |
Compatible with JIS C 2107 |
|
Tensile strength |
N/19mm |
240 |
590 |
530 |
||
Adhesive strength |
25°C |
N/19mm |
6.8 |
9.0 |
9.7 |
|
100°C |
3.2 |
3.9 |
4.7 |
|||
150°C |
2.2 |
2.6 |
3.0 |
|||
Unwinding force |
N/19mm |
5.9 |
5.9 |
7.5 |
||
Temperature range |
°C |
-60~260 |
|
|||
Specification
Model |
color |
Specification |
Short-term heat resistance (℃) |
Continuous use temperature(℃) |
||
Thickness (mm) |
Width(mm) |
Length (m) |
||||
No.973UL-S |
Beige |
0.13 |
10 |
10 |
300℃ |
-60~260℃ |
No.973UL-S |
Beige |
0.13 |
13 |
10 |
300℃ |
-60~260℃ |
No.973UL-S |
Beige |
0.13 |
15 |
10 |
300℃ |
-60~260℃ |
No.973UL-S |
Beige |
0.13 |
19 |
10 |
300℃ |
-60~260℃ |
No.973UL-S |
Beige |
0.13 |
25 |
10 |
300℃ |
-60~260℃ |
No.973UL-S |
Beige |
0.13 |
38 |
10 |
300℃ |
-60~260℃ |
No.973UL-S |
Beige |
0.13 |
50 |
10 |
300℃ |
-60~260℃ |
No.973UL-S |
Beige |
0.13 |
75 |
10 |
300℃ |
-60~260℃ |
No.973UL-S |
Beige |
0.13 |
100 |
10 |
300℃ |
-60~260℃ |
No.973UL-S |
Beige |
0.13 |
300 |
10 |
300℃ |
-60~260℃ |
No.973UL-S |
Beige |
0.13 |
600 |
10 |
300℃ |
-60~260℃ |
No.973UL |
Beige |
0.18 |
13 |
10 |
300℃ |
-60~260℃ |
No.973UL |
Beige |
0.18 |
19 |
10 |
300℃ |
-60~260℃ |
No.973UL |
Beige |
0.18 |
25 |
10 |
300℃ |
-60~260℃ |
No.973UL |
Beige |
0.18 |
50 |
10 |
300℃ |
-60~260℃ |
