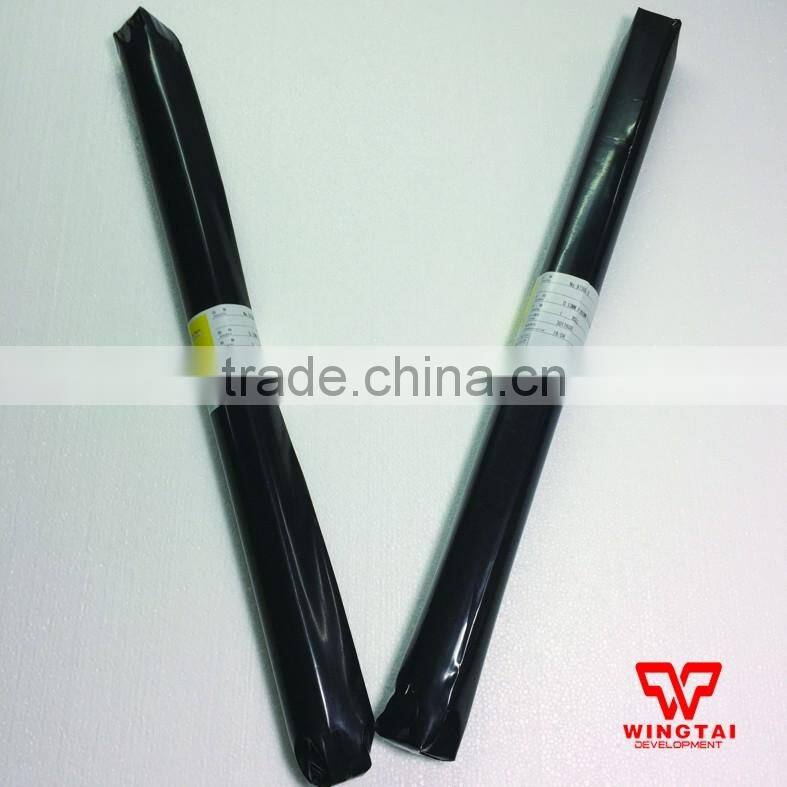

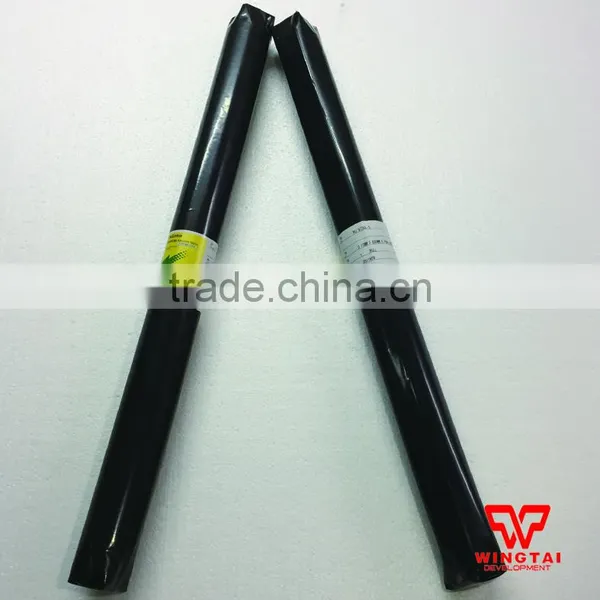

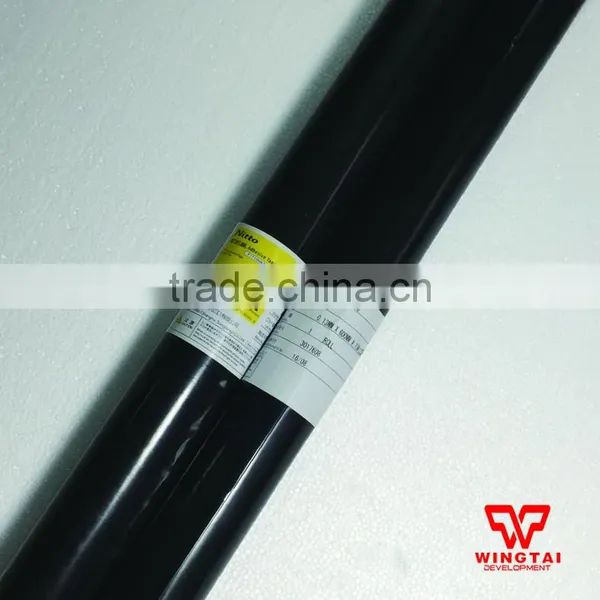

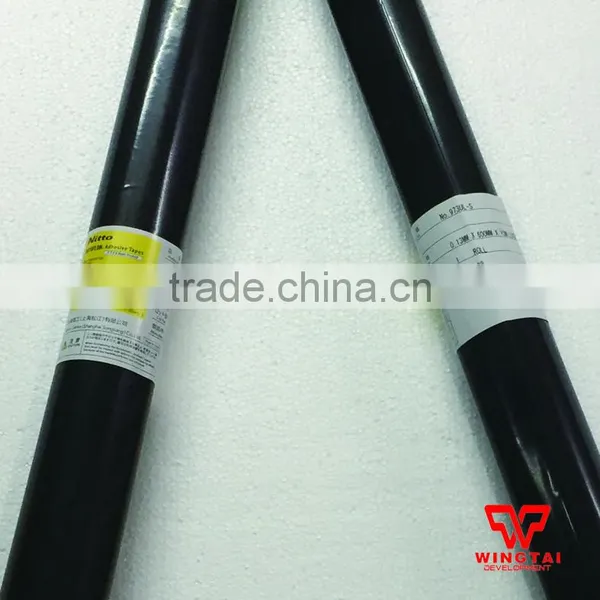

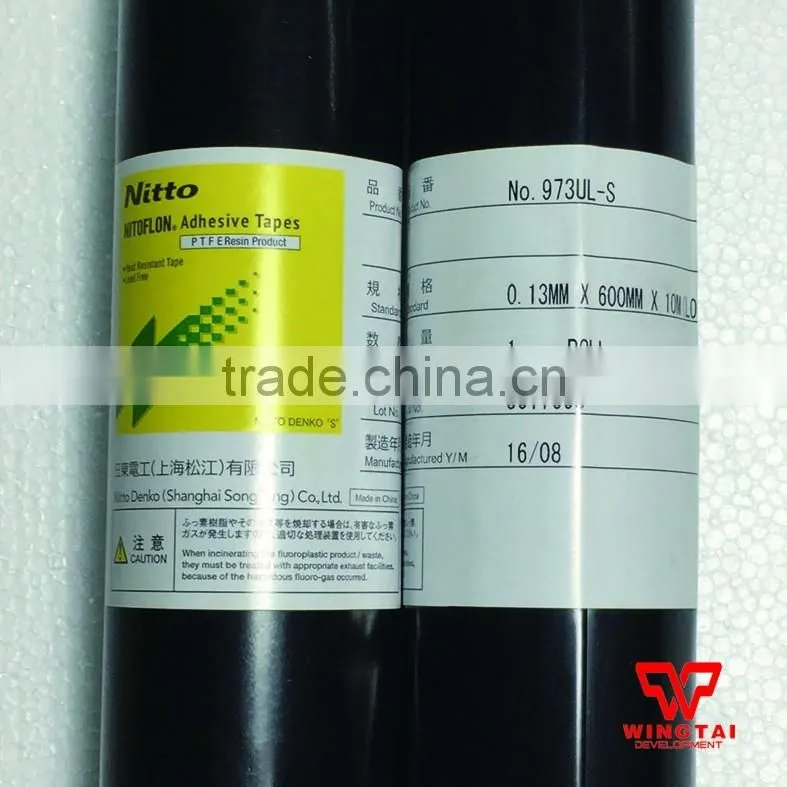

Nitto denko high temperature resistant tape 973UL-S T0.13mmW600mmL10m

Name: Nitto denko high temperature resistant tape 973UL-S T0.13mm*W600mm*L10m
Brand: NITTO DENKO
Price: USD $200 - 230 / Roll

FOB Price

USD $200 - $230 / Roll

1 Roll(Min.Order)

Supply Ability 1000 Roll / Rolls per Month
Port Shantou /Shenzhen
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Material:	PTFE	Use:	Masking	Adhesive Side:	Single Sided
Adhesive Type:	Hot Melt, Pressure Sensitive
Design Printing:	No Printing	Place of Origin:	Japan	Brand Name:	NITTO DENKO
Model Number:	NO.973UL-S

Product Description

nitto denko high temperature resistant tape 973UL-S T0.13mm*W600mm*L10m

Product Description

NITTO DENKO high temperature tape is high-temperature super-tack electronic tape imported from Japan.
It’s top quality, stability and durability, a variety of model specifications. This tape is widely used in high-temperature enveloping, blanching combined equipment.

Features

It can resist higher temperature and more cold than common tape. In continuous use, the temperature range is -100-260 degrees Celsius, melting point up to 327 degrees, low friction, and good lubricity; on the high voltage insulator with good effect; on the chemicals or solvents not Chemical reaction; and has anti-light, anti-oxidation effect; good stickiness. Other features are wear-resisting, anti-pressure, anti-erosive, anti-microwave, high temperature resistant, anti-rubbing, slippery, sticking firmly, and shapely grain.

Brand: NITTO DENKO
Origin: Japan

General Properties:

Item		Unit	No.973UL-S	No.973UL		Test Method
Thickness		mm	0.13	0.15	0.18	Compatible with JIS C 2107
Tensile strength		N/19mm	240	590	530
Adhesive strength	25°C	N/19mm	6.8	9.0	9.7
	100°C		3.2	3.9	4.7
	150°C		2.2	2.6	3.0
Unwinding force		N/19mm	5.9	5.9	7.5
Temperature range		°C	-60~260

More relative Model Number:

Model	color	Specification			Short-term heat resistance (℃)	Continuous use temperature(℃)
Model	color	Thickness (mm)	Width(mm)	Length (m)	Short-term heat resistance (℃)	Continuous use temperature(℃)
No.973UL-S	Beige	0.13	10	10	300℃	-60~260℃
No.973UL-S	Beige	0.13	13	10	300℃	-60~260℃
No.973UL-S	Beige	0.13	15	10	300℃	-60~260℃
No.973UL-S	Beige	0.13	19	10	300℃	-60~260℃
No.973UL-S	Beige	0.13	25	10	300℃	-60~260℃
No.973UL-S	Beige	0.13	38	10	300℃	-60~260℃
No.973UL-S	Beige	0.13	50	10	300℃	-60~260℃
No.973UL-S	Beige	0.13	75	10	300℃	-60~260℃
No.973UL-S	Beige	0.13	100	10	300℃	-60~260℃
No.973UL-S	Beige	0.13	300	10	300℃	-60~260℃
No.973UL-S	Beige	0.13	600	10	300℃	-60~260℃
No.973UL	Beige	0.18	19	10	300℃	-60~260℃
No.973UL	Beige	0.18	25	10	300℃	-60~260℃
No.973UL	Beige	0.18	50	10	300℃	-60~260℃

More relative Model Number

Type	Spec.
923S	T0.10mmW38/50mmL33m
903UL	T0.08mmW13/19/25/38/50mmL10m
903UL	T0.18mmW19mmL10m
973UL-S	T0.13mmW13/19/25/38/50mmL10m

Stickiness attribute: Silicone

Long-term temperature resistant: -60~280℃ ,

short-term temperature resistant: -50/300 ° C,
Tensile strength: (n / cm) 135-150;
Adhesion: (n/25mm)> 6.5,

Application

hot resistant, shelter; heat seal; heat electrical insulation;

Widely used in the pharmaceutical industry, food industry, printing industry, industrial, chemical and other fields.

The product is mainly used for bag sealing machine.
