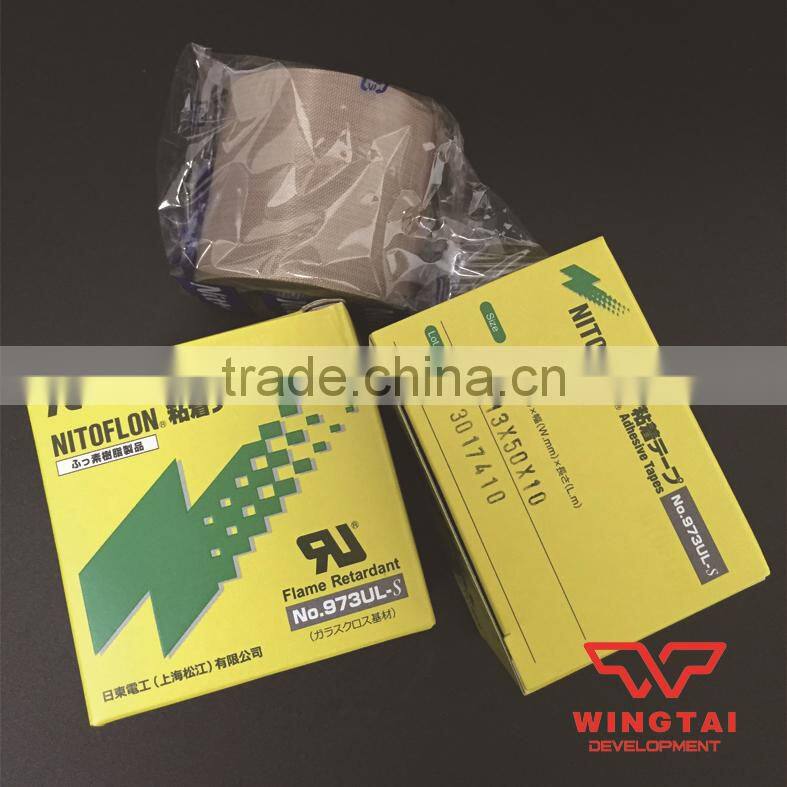

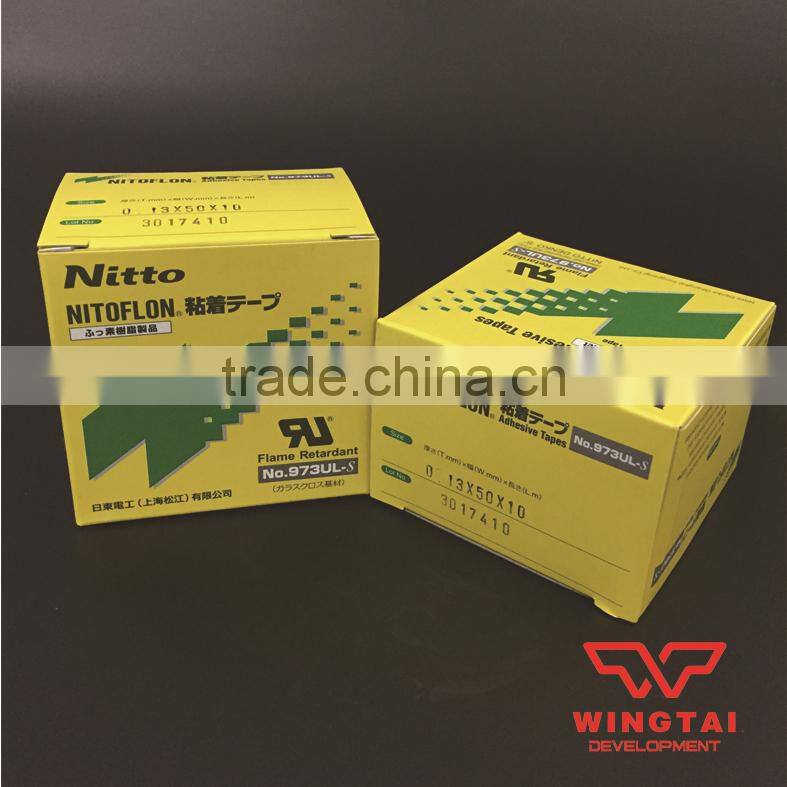

Nitto tape for printing machine 973UL-S T0.13mm*W50mm*L10m
NITTO DENKO high temperature tape is high-temperature super-tack electronic tape imported from Japan.
It’s top quality, stability and durability, a variety of model specifications. This tape is widely used in high-temperature enveloping, blanching combined equipment.
It can resist higher temperature and more cold than common tape. In continuous use, the temperature range is -100-260 degrees Celsius, melting point up to 327 degrees, low friction, and good lubricity; on the high voltage insulator with good effect; on the chemicals or solvents not Chemical reaction; and has anti-light, anti-oxidation effect; good stickiness. Other features are wear-resisting, anti-pressure, anti-erosive, anti-microwave, high temperature resistant, anti-rubbing, slippery, sticking firmly, and shapely grain.
Brand: NITTO DENKO
Origin: Japan
General Properties:
Item |
Unit |
No.973UL-S |
No.973UL |
Test Method |
||
Thickness |
mm |
0.13 |
0.15 |
0.18 |
Compatible with JIS C 2107 |
|
Tensile strength |
N/19mm |
240 |
590 |
530 |
||
Adhesive strength |
25°C |
N/19mm |
6.8 |
9.0 |
9.7 |
|
100°C |
3.2 |
3.9 |
4.7 |
|||
150°C |
2.2 |
2.6 |
3.0 |
|||
Unwinding force |
N/19mm |
5.9 |
5.9 |
7.5 |
||
Temperature range |
°C |
-60~260 |
|
|||
More relative Model Number:
Model |
color |
Specification |
Short-term heat resistance (℃) |
Continuous use temperature(℃) |
||
Thickness (mm) |
Width(mm) |
Length (m) |
||||
No.973UL-S |
Beige |
0.13 |
10 |
10 |
300℃ |
-60~260℃ |
No.973UL-S |
Beige |
0.13 |
13 |
10 |
300℃ |
-60~260℃ |
No.973UL-S |
Beige |
0.13 |
15 |
10 |
300℃ |
-60~260℃ |
No.973UL-S |
Beige |
0.13 |
19 |
10 |
300℃ |
-60~260℃ |
No.973UL-S |
Beige |
0.13 |
25 |
10 |
300℃ |
-60~260℃ |
No.973UL-S |
Beige |
0.13 |
38 |
10 |
300℃ |
-60~260℃ |
No.973UL-S |
Beige |
0.13 |
50 |
10 |
300℃ |
-60~260℃ |
No.973UL-S |
Beige |
0.13 |
75 |
10 |
300℃ |
-60~260℃ |
No.973UL-S |
Beige |
0.13 |
100 |
10 |
300℃ |
-60~260℃ |
No.973UL-S |
Beige |
0.13 |
300 |
10 |
300℃ |
-60~260℃ |
No.973UL-S |
Beige |
0.13 |
600 |
10 |
300℃ |
-60~260℃ |
No.973UL |
Beige |
0.18 |
19 |
10 |
300℃ |
-60~260℃ |
No.973UL |
Beige |
0.18 |
25 |
10 |
300℃ |
-60~260℃ |
No.973UL |
Beige |
0.18 |
50 |
10 |
300℃ |
-60~260℃ |
More relative Model Number
Type |
Spec. |
923S |
T0.10mm*W38/50mm*L33m |
903UL |
T0.08mm*W13/19/25/38/50mm*L10m |
903UL |
T0.18mm*W19mm*L10m |
973UL-S |
T0.13mm*W13/19/25/38/50mm*L10m |
Stickiness attribute: Silicone
Long-term temperature resistant: -60~280℃ ,
short-term temperature resistant: -50/300 ° C,
Tensile strength: (n / cm) 135-150;
Adhesion: (n/25mm)> 6.5,
hot resistant, shelter; heat seal; heat electrical insulation;
Widely used in the pharmaceutical industry, food industry, printing industry, industrial, chemical and other fields.
The product is mainly used for bag sealing machine.
|
|
|
