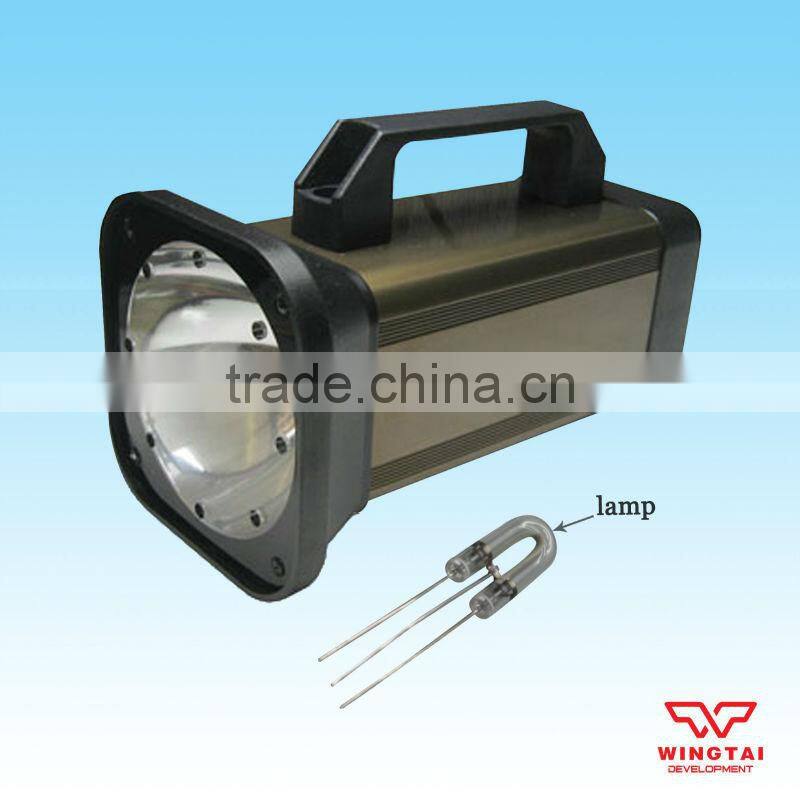

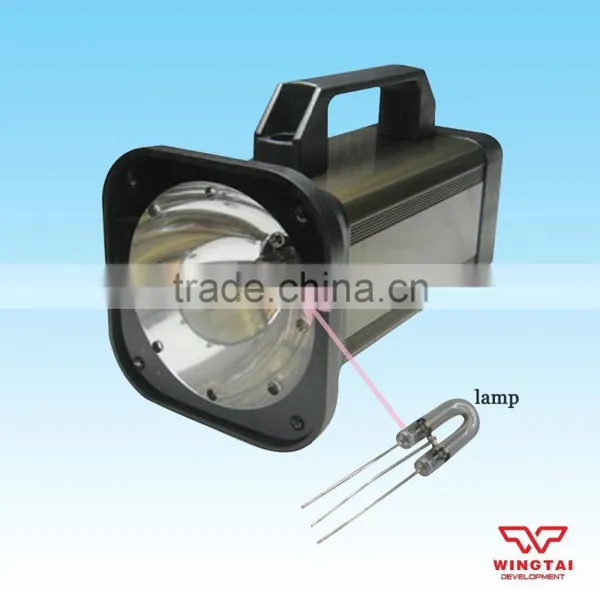

Help CenterPortable Digital Stroboscope DT-20101C
Related Products
-
Shantou Rongtai Split-type StroboscopeUS$ 384 - 1,040MOQ: 1 Unit -
Charged Type Portable StroboscopeUS$ 224 - 240MOQ: 1 Set
-
Rechargeable & Digital Diaplay Stroboscope DT-05BUS$ 368 - 400MOQ: 1 Set
-
Tachometer StroboscopeUS$ 144 - 160MOQ: 1 Set
-
DT-2010C Portable Strobe Tachometer For PrintingUS$ 150 - 250MOQ: 1 Set
Rechargeable Portable Stroboscope
Stroboscope is also known as instrument, stroboscope lamp, tachometer. The instrument can be issued short-term and frequent flash, when adjusting the flashing frequency to match the measured object (such as: motor) speed of rotation or movement close to or synchronized, making high-speed movement of the measured object to be slow movements or relatively static. People can easily observe the high-speed moving objects’ surface quality and physical activities, can also analyze object’s oscillation, moving contrail and observing printing on-line. Congeal moving not stop. Stroboscope widely used in packaging and printing industry, can inspect high-speed printing process chromatography conditions, ink color matching, model cutting, punching, folding on-line material monitoring, labels, forms, flexo, gravure marking symbol in detection.
widely used in printing packaging industries, can monitor the overprint condition during high speed printing process; including match colors of ink, cut film, punch hole, fold film, insect the whole at the same time; and inspect the printing of line mark such as label and form in flexographic printing and gravure printing. As to textile industries, can inspect the weaving spindle, thread rotating speed in spinning machine and rotating thread machine, and monitor the spinning and the operating of other parts of Sartorius. As to machinery, can slow down the showing speed of complex operating process with the “slow down” button, and inspect all kinds of rotor, gear, mesh and vibrate equipment. And this stroboscope can also used in air plane, motorcar, steamship, cable, steel, chemical engineering, pharmaceutical, medical treatment, optics .
Technique parameters:
Type |
DT2010C |
Working power |
AC 220V |
Working frequency |
50Hz~60Hz |
Total Power |
25W~100W |
Internal trigger frequency range: |
1roll / minute ~ 6000 rolls / minute |
External Trigger frequency range |
1 roll / min ~ 30000 rolls / minute |
Germany Hyman lamp, |
working life is more than a hundred million times |
Working temperature |
0°C~50°C |
Relative humidity |
lower than 75°C |
Indicator light specifications:
1. FPM: linear velocity indicator light
2. Hz: frequency indicator light
3. SIG: External trigger indicator light
4. MODE: Internal trigger indicator light
Key-press operation directions:
1. ×2 under internal mode, this switch can increase the frequency geminately
2. ÷2 under internal mode, this switch can decrease half of the frequency
3. HZ/ FPM circulation switch
4. + linear velocity frequency shows increase
5. - linear velocity frequency shows decrease
6. SIG: input and output joint, according to the external single to adjust the strobeflash and single output.
7. POWER: power plug
8. ON/OFF: power switch
|
|
|
|
