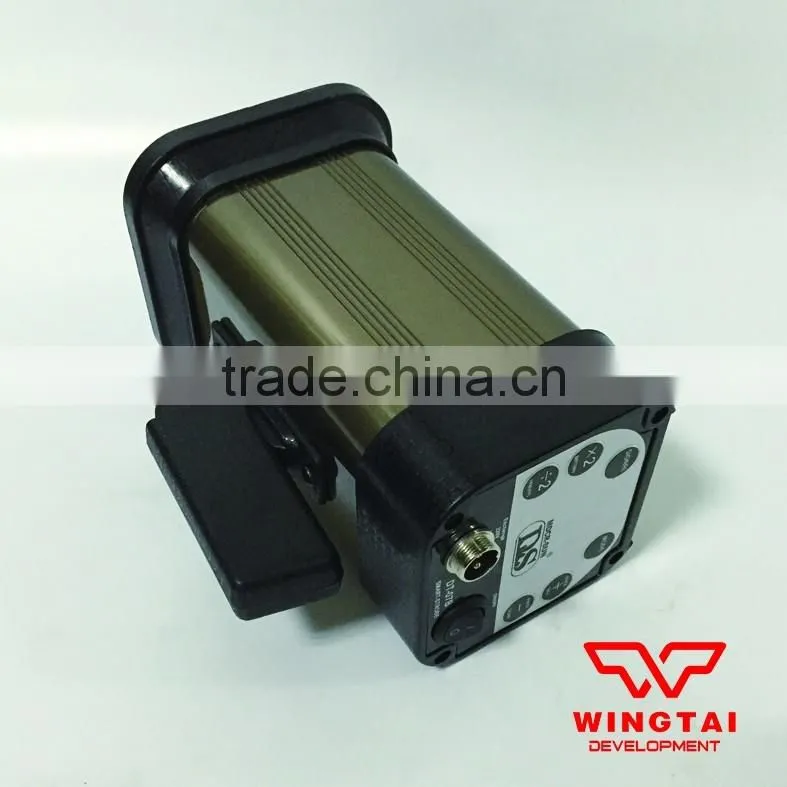

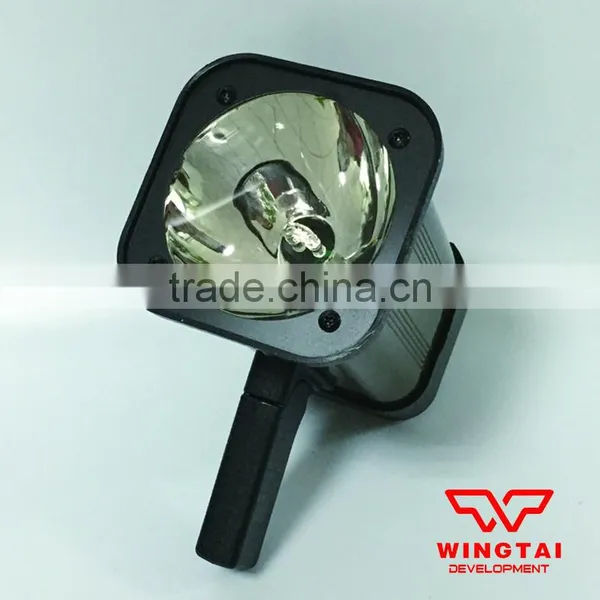

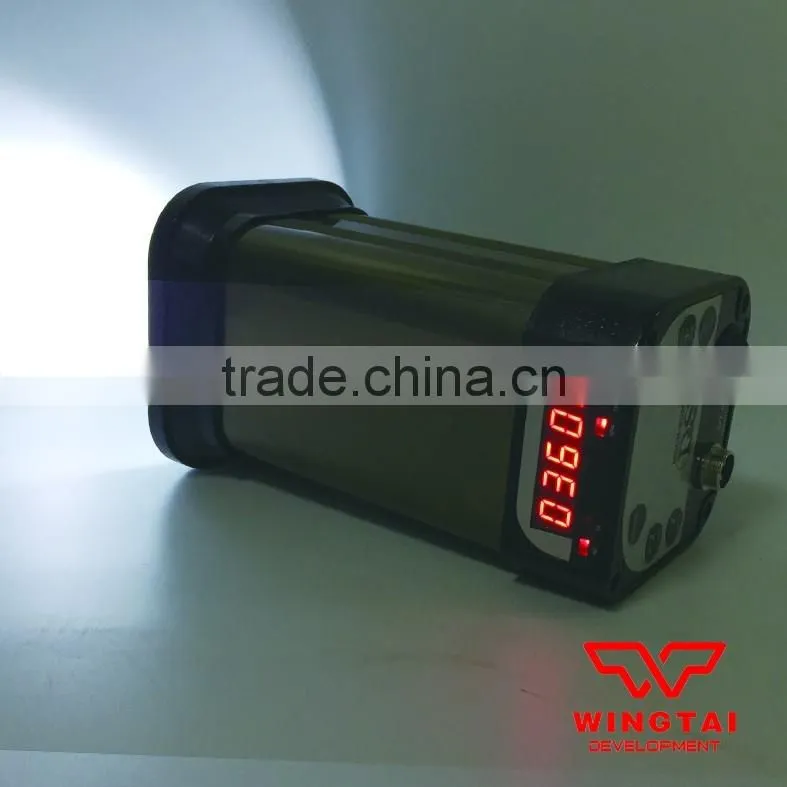

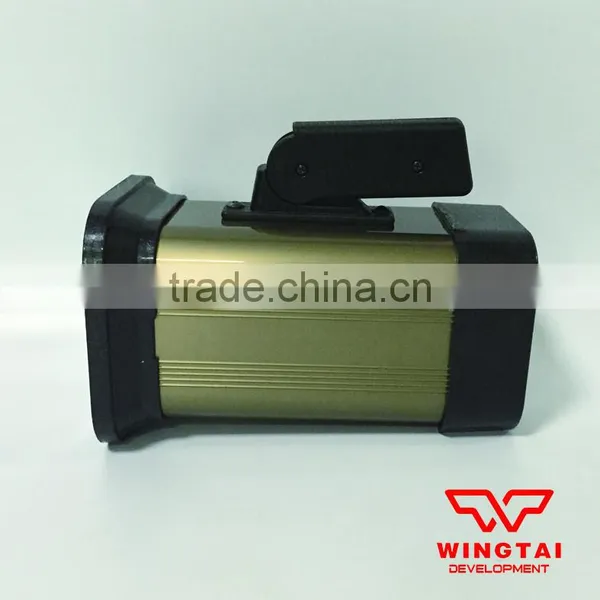

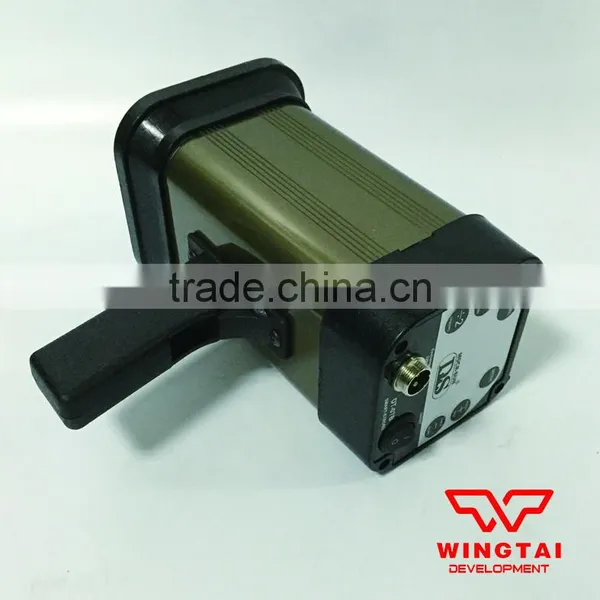

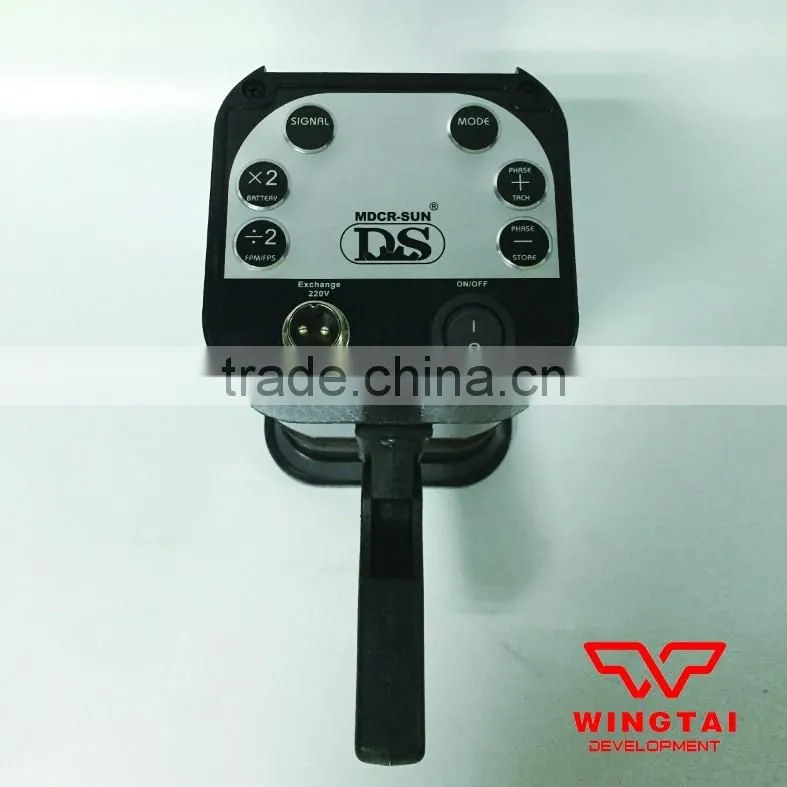

Rechargeable Digital Stroboscope DT-07B 50~3600times/min
Stroboscope with fast frequency flashing light. In stroboscopic instrument observation high speed rotation or movement of objects, by modulating stroboscope flashing frequency, and the measured object rotating or moving close to the speed of the object to be measured and synchronization, while at high speed, but it is the slow motion or relative rest. The persistence of vision, so that the people can be easily observed by high-speed operation object status.
Main technical index:
5. Power supply: AC110V, AC220V ±10%, 2A, 50HZ
6. Power: ≤80W
7. Trigger frequency range: factory set : 50 times / ~3600 times/ minute, can be upgrade to 4000 times / min, 5400 times / min, 14400 beats / min (Alternative)
8. Single work time: the function key set
9. Ambient light illumination: < 10000 Lux
10. External trigger signal range: 5~12V pulse signal
11. Optional configuration: External trigger frequency range: 50 times / min ~3600 / min, 14400 beats / min (This configuration should equipped with photoelectric contact, please contact online if you need. )
Widely used in packaging and printing industry, can be detected by high speed printing process color, ink color matching, die cutting, punching, folding conditions; suitable for the textile industry, can detect the spindle rotation and loom weft cloth machine yarn; suitable for mechanical manufacturing industry, observe various rotor, gear machinery manufacturing movement; suitable in chemical, optical, shipbuilding and other industries.
1. External trigger or Internal trigger methods are optional.
2. When it is external trigger working mode,it can track the image automatically.
3. Stop flashing automatically function.
4. DT-07B is a chargeable muti function lithium stroboscope, can charging intelligently and quickly.When charging, you need to connect 220V power line, then intelligent charging circuit starts to work, it can charge over 95% into Li battery within 30 minutes and then get into slow filling state. It will stop charging when its batteries are full so that it can protect the batteries using life. It can be used withou batteries, only need to connect the power line. It is an ideal and essential tool.
|
|
|
|
