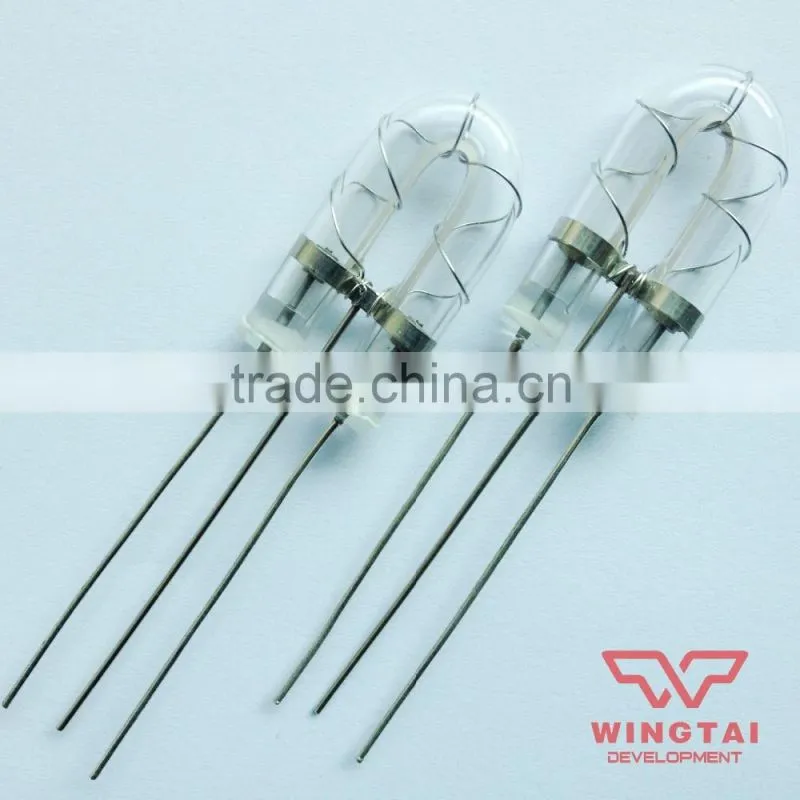

Germany Hyman Stroboscope Flashing Light TubeUS$ 24 - 26MOQ: 1 Piece
-

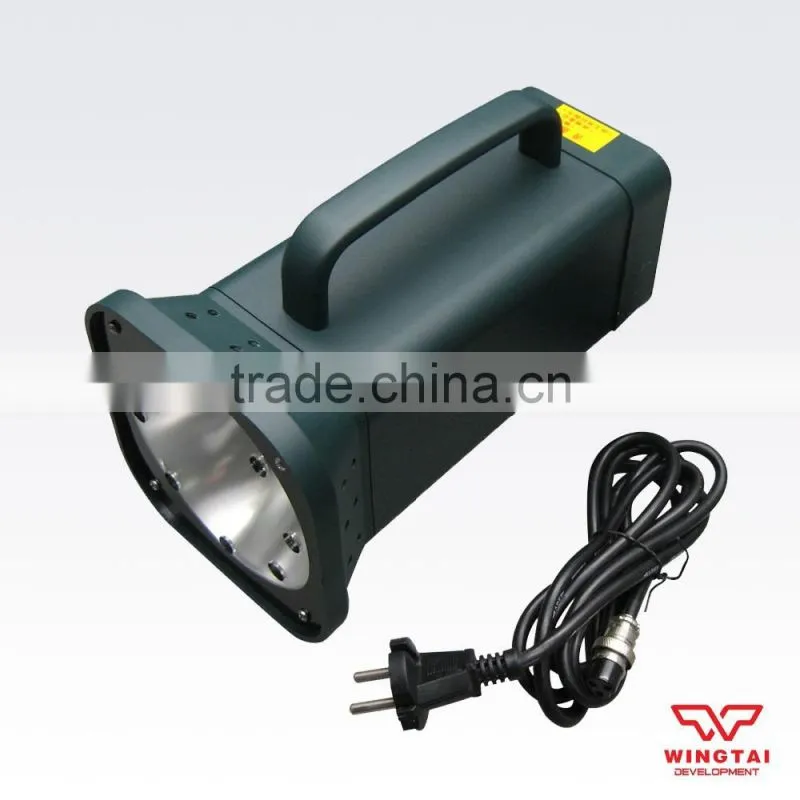

Portable StroboscopeUS$ 144 - 160MOQ: 1 Set
-
Portable ColorimeterUS$ 577 - 634MOQ: 1 Unit
-
HS-851 Portable Stroboscope LampUS$ 144 - 160MOQ: 1 Set

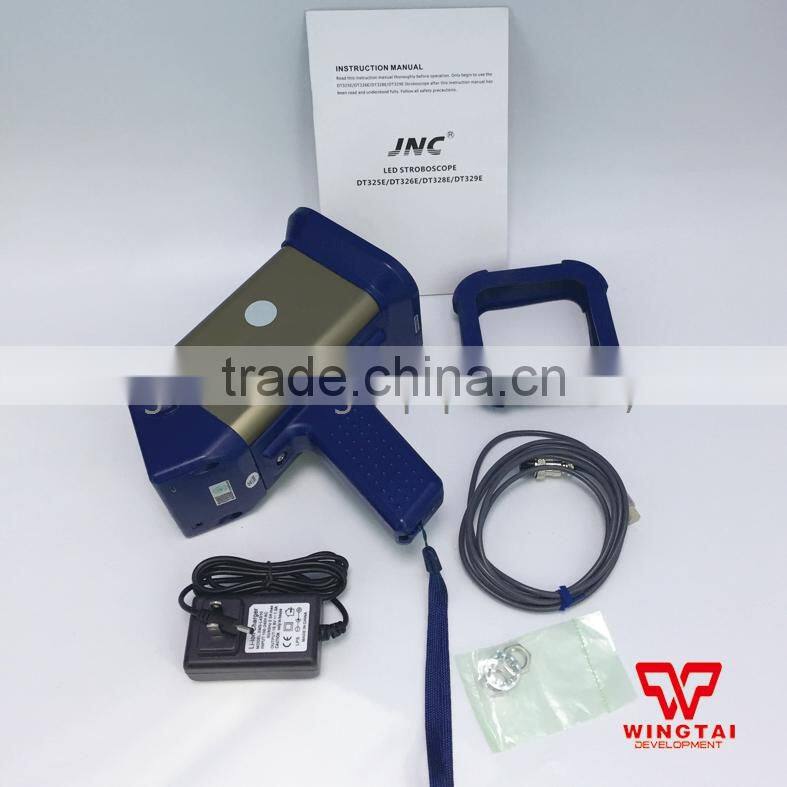

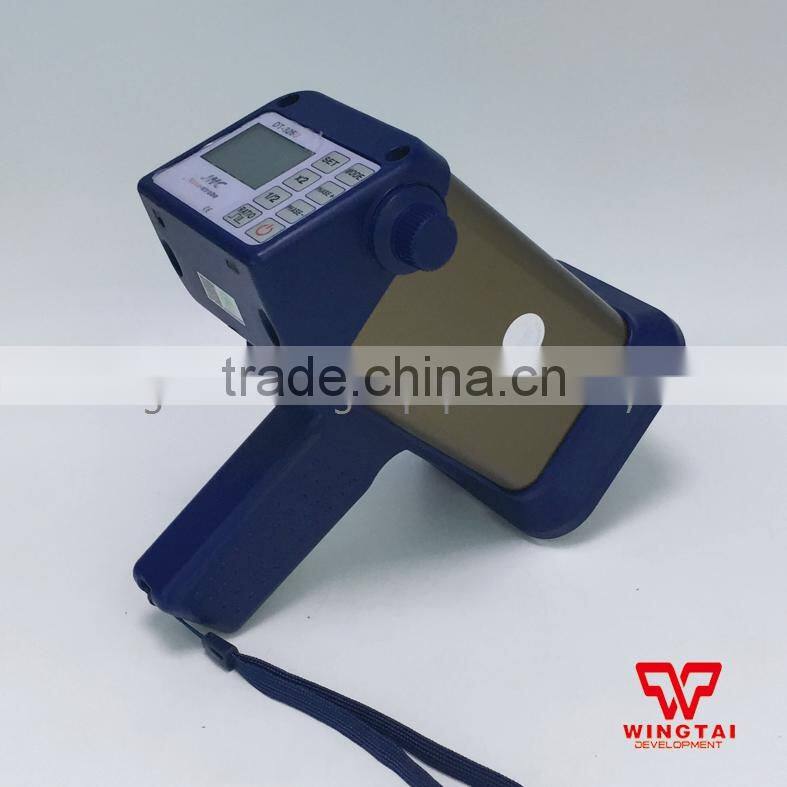

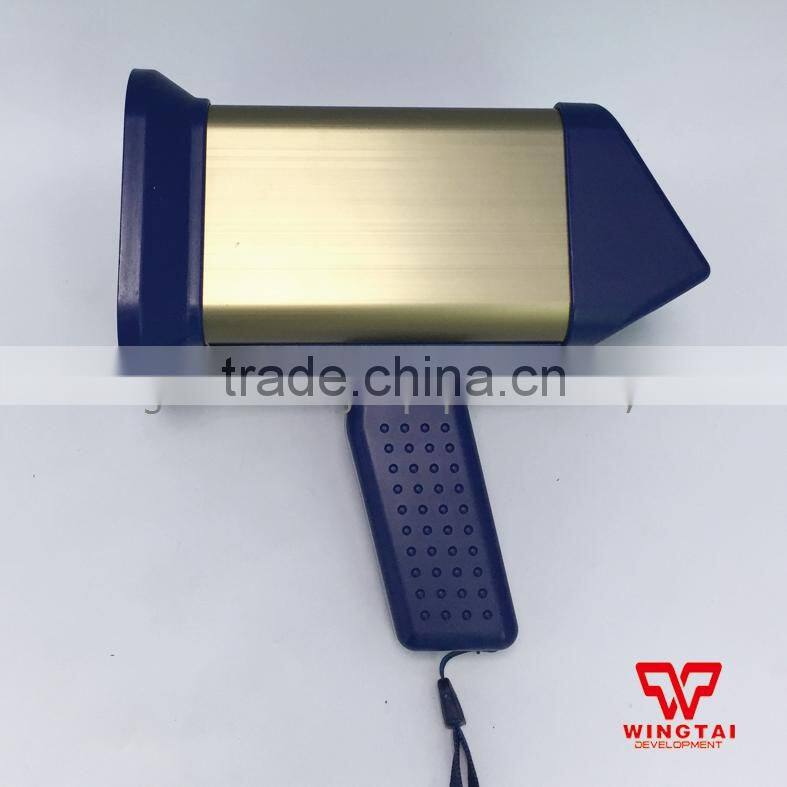

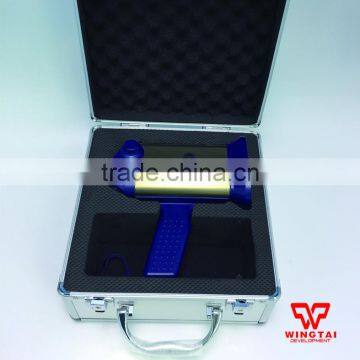

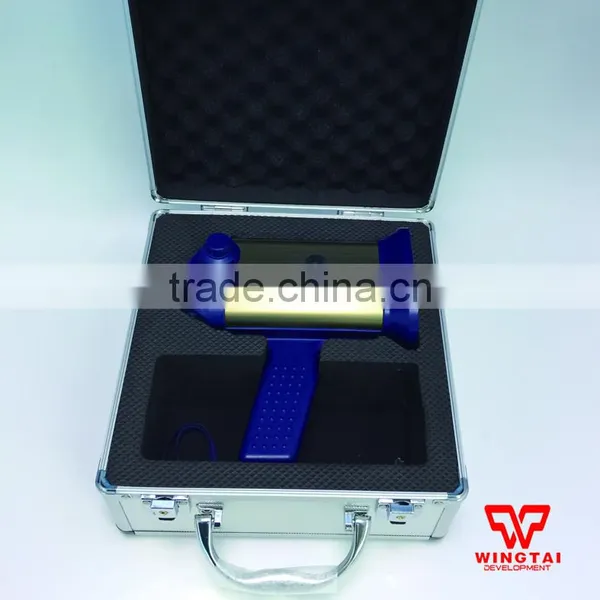

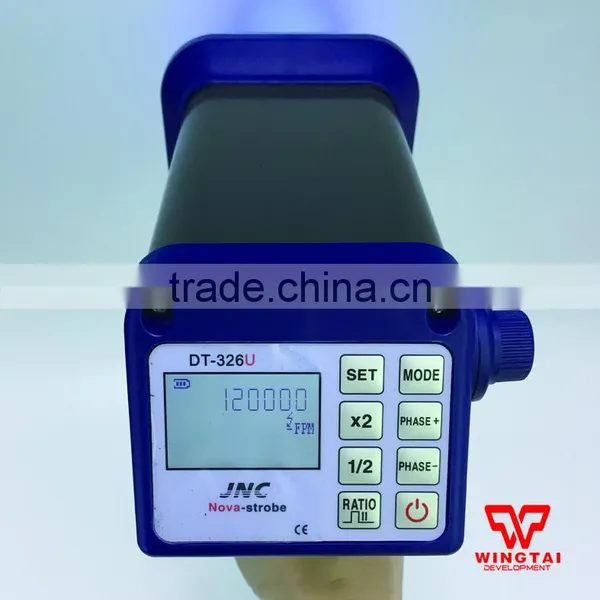

60-12000FPM For UV Ink LED Type Digital Stroboscope DT326U
A stroboscope, also known as a strobe, stroboscopic lght, strobe light, tachometer is an instrument used to
make a cyclically moving object appear to be slow-moving, or stationary so that the objects can be visible,
otherwise, it can not be observed by naked eyes.
The principle is by synchronizing the flash frequency to the movement of the observed object and emitting
intensive light pulse of short duration, the object is always illuminated at the same point of its movement,
so that it appears to the eye as if it were motionless. It is suitable for non-contact RPM measurement,
inspection and observation of moving parts.
For example: a motor speed and movement frequency (printed bags), can also take advantage of the frequency
scintillation analysis of object vibration, the action of high-speed moving objects, as well as high-speed photography.

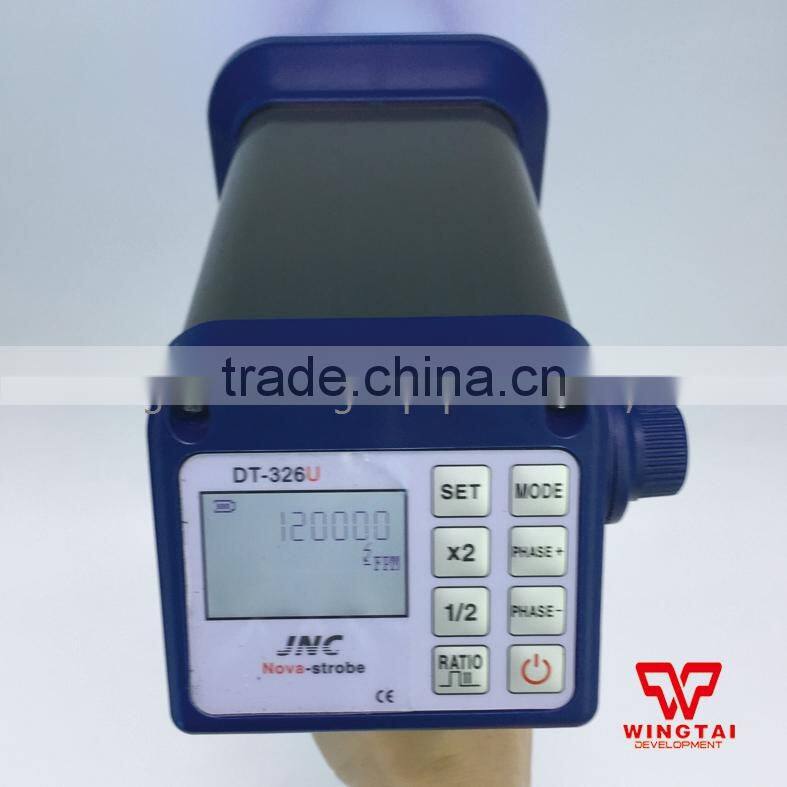

1) . LCD digital display, easy to read

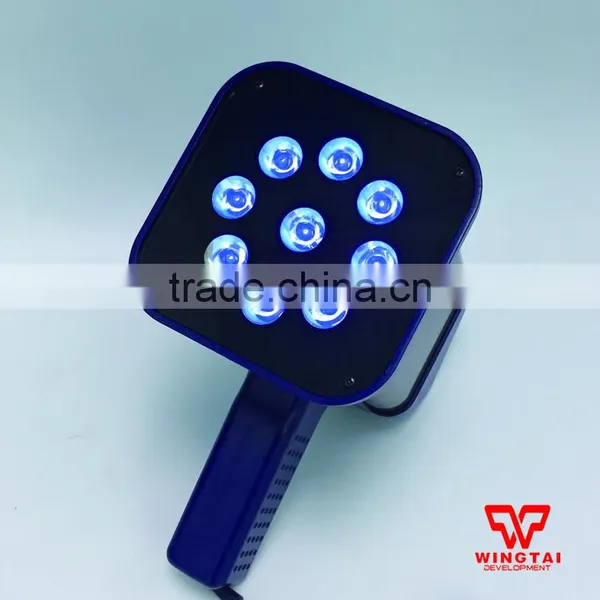

2). Adopts 9 pices America CREE LED lamps with long lifetime
3). wide trigger frequency range, 60fpm/min-120,000 fpm/min.. Frequency of each unit can be easily adjusted
4) good light brightness, with illunimation about 10,000 Lux.
5). portable, rechargeable, easy to operate and adjust
6). accurate and simple yet highly stable, repeatable flash rate setting.
7). internal components are independent, thus easy to disassemabled for problem solving
8). accredited with ISO, CE certification and pass EMC test.
9). competitive price with high quality
10). fast delivery, environmental friendly paper packaging.
11). after sale service guaranteed
Type |
Portable and Rechargeable |
Power Type |
Powered by Rechargeable Battery |
Battery Type |
Lithium rechargeable Battery |
Battery Spec. |
DC16V, 3000MA |
Battery Recharging Time |
About 5 hours (have indicating light) |
Working Time |
14 hours after each charging |
Total Power |
About 90W |
Environment Illumination |
Less than 10,000 Lux |
LED Lamp Spec. |
America CREE 10W LED Lamp (9 lamps) |
LED Lamp Lifetime |
3-5 years |
Trigger Mode |
Internal and External |
Setting Accuracy ( Vibration) |
0.01%±1 digit (25℃) |
Resolution Setting (Vibration) |
60.0-12000FPM 0.1FPM |
12000.1-120,000FPM 1 FPM | |
1-200HZ 0.01HZ | |
200.1-2000HZ 0.012HZ | |
Flash Frequency Range |
60-120,000 FPM/min. |
Product Size |
203mm*110mm*192mm |
Packaging Size |
265mm*265mm*145mm |
|
|
|
|
| Rechargeable Strobe Lamp For Printing DT-05B | Rechargeable Battery Type DT-07B Palm Strobe | HS-851 Tachometer For Packaging and Printing Industries | HS852 Stroboscopic Lamp For Packaging Industry |
|
|
|
|

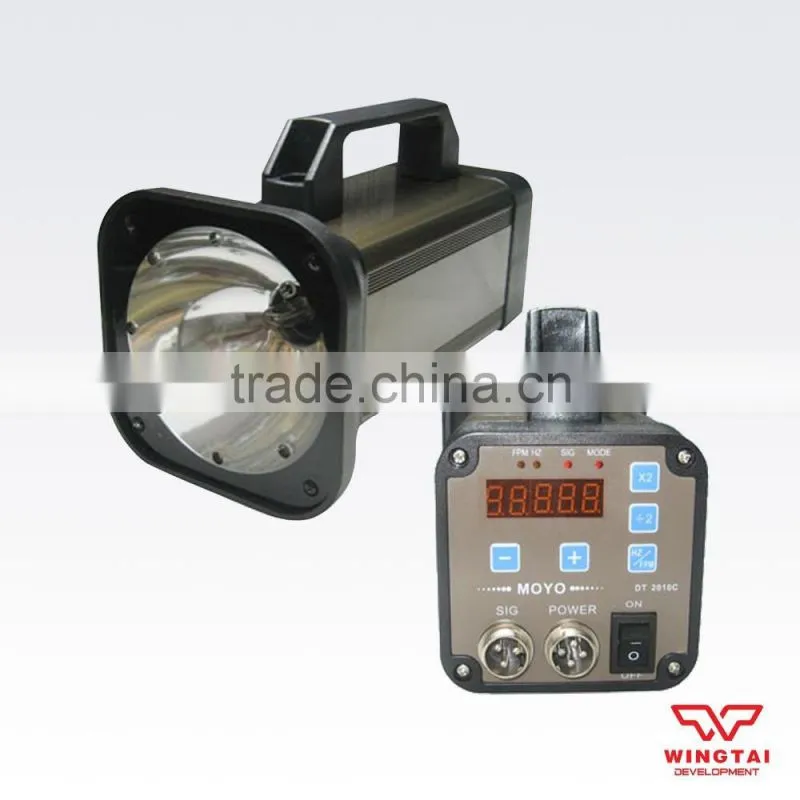

| DT-2010C Portable Stroboscope Instruments | Portable tachometer stroboscope HS-851 | Extra Strength Stroboscope Tube Light DT-12U | Germany Hyman Strobe Light Bulb For DT-12 |
