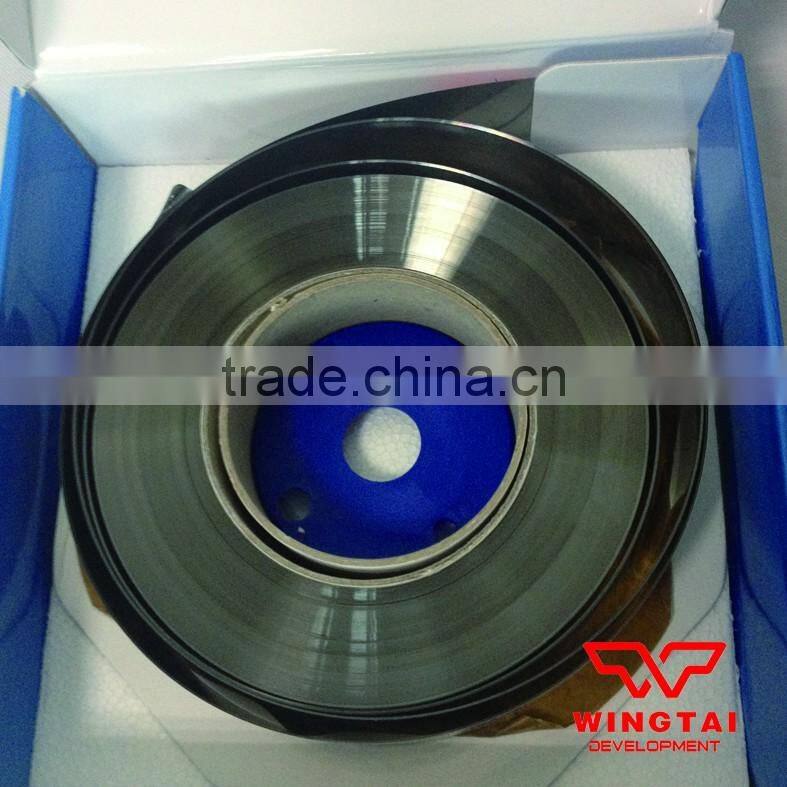

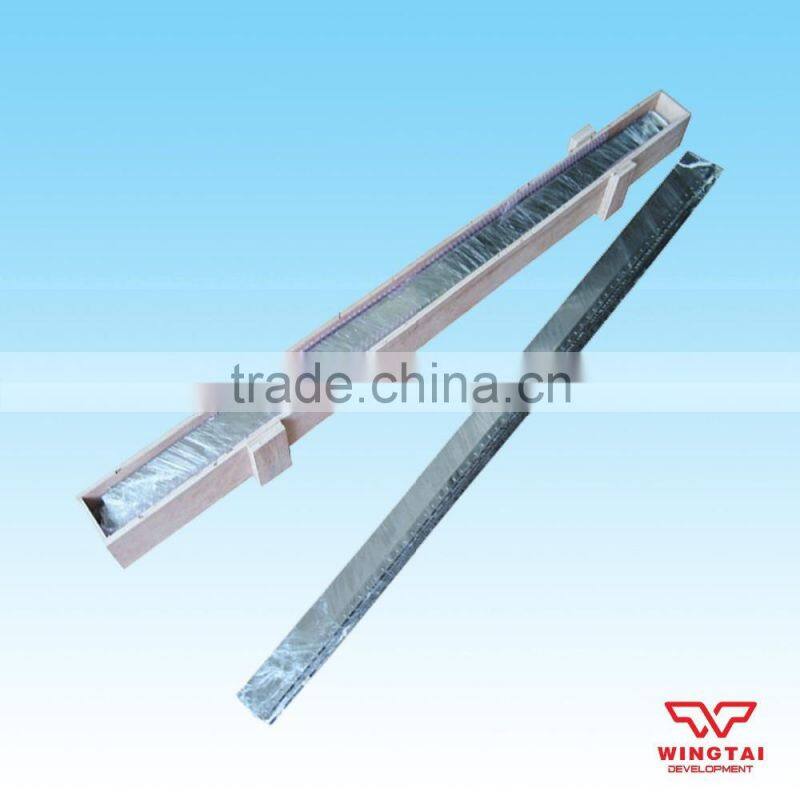

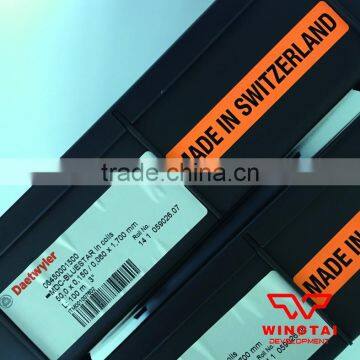

MDC BLUESTAR Doctor Blade For Gravure Printing
by Daetwyler SwissTec
Place of origin:Switzerland
Brand:Daetwyler
Model:MDC-Bluestar in Coils
Specification:W40/50/60*0.15mm
Blade size:0.06mm*1.7 mm
Material:Carbon steel
Length: 100m
Blade type:Multiblade
Angle of blade:3 degree
Heat-treated blue carbon steel and a 30 bevel give the Bluestar durability, stability and a clean, crisp wipe.A 3°flat beveled doctor blade increases stiffness and reduces tip deflection caused by high blade pressure and fast press speeds. The thin tip wipes clean, helping to decrease print related toning and hazing issues. The 60 micron tip increases proportionally to the 3°angled bevel
Advantage
·The tip design promotes stiffness whilst retaining a small contact area
·Suitable for short-run Flexo HD
·Low cost
·Alternative to standard steel for flexographic and gravure printing
·The material is also heat-treated
·Commonly used blade for all applications
Application
·Flexo Print
·Gravure
·Special applications
Specification
·Width 20.0 - 80.0 mm
·Thickness 0.150 / 0.200 / 0.250 mm
Item Name |
Specification |
Lamella(thickness/bevel) |
Material |
Machine Speed |
MDC Bluestar |
W40/50/60*T0.15mm*L100m |
0.06* 1.7mm/3° |
Carbon Steel |
Up to 180/M |
MDC Bluestar |
W40/50/60*T0.2mm*L100m |
0.06* 2.7mm/3° |
Carbon Steel |
Up to 180/M |
