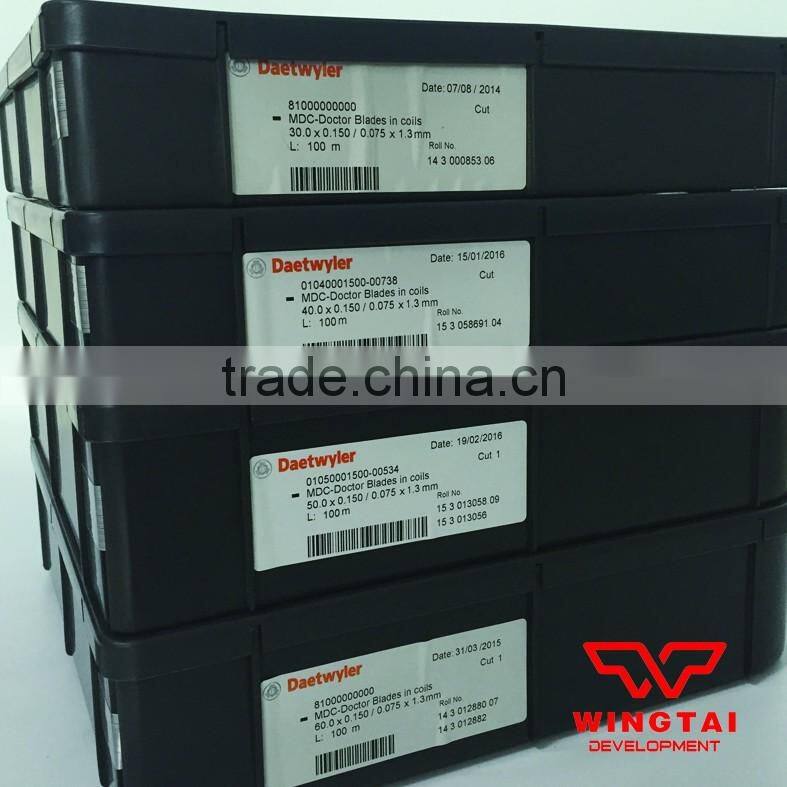

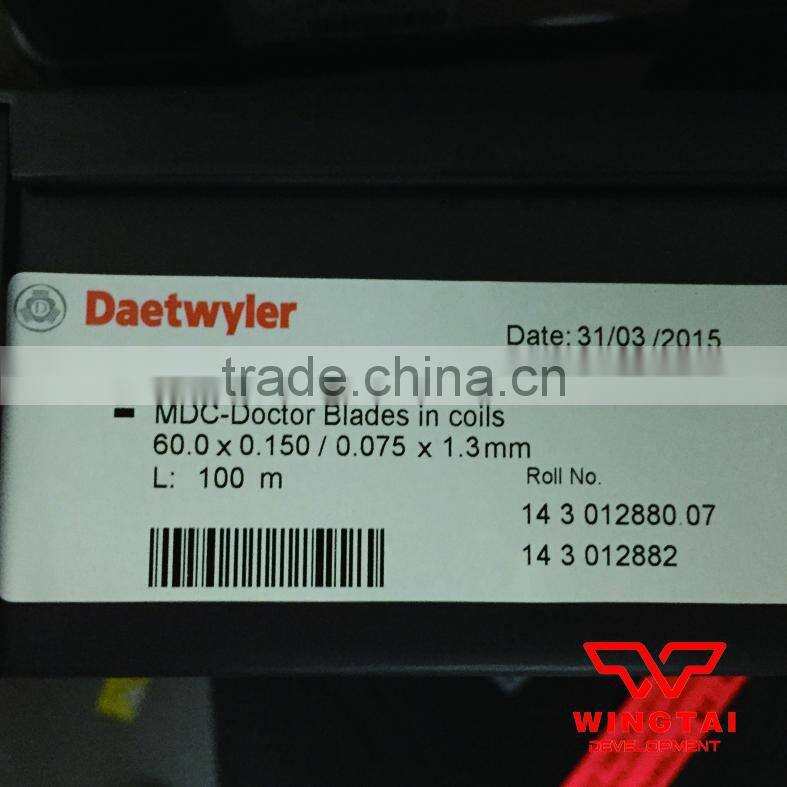

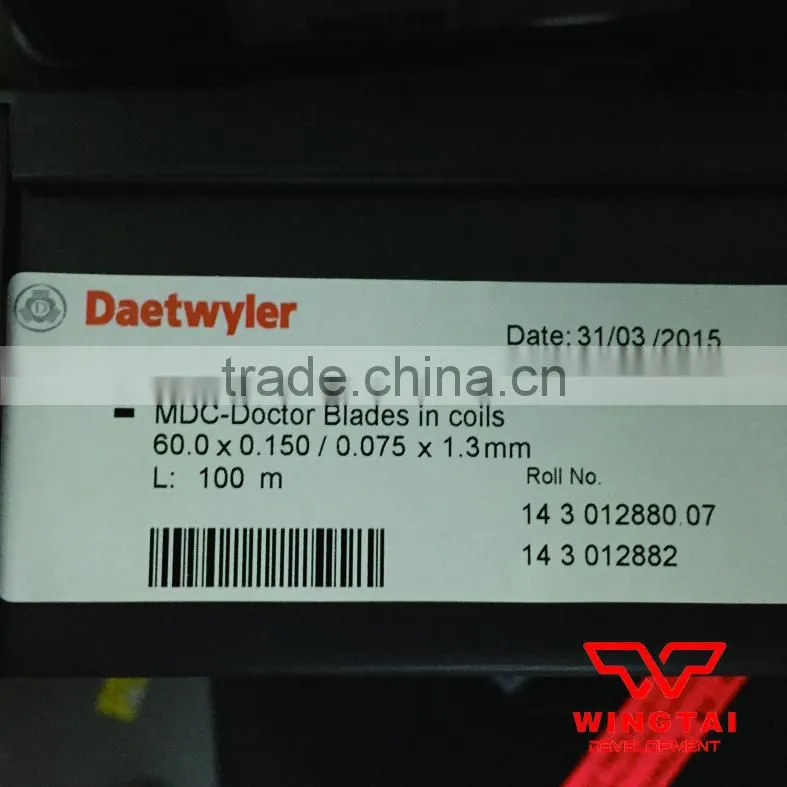

Genuine Daetwyler MDC Lamella Doctor Blade
Brand: MDC
Place of origin: Switzerland
Manufacturer: Daetwyler
Model number: Doctor Blades in coils
Material: Carbon Steel
Common width: 30/40/50/60 mm
Common thickness: 0.15/0.2mm

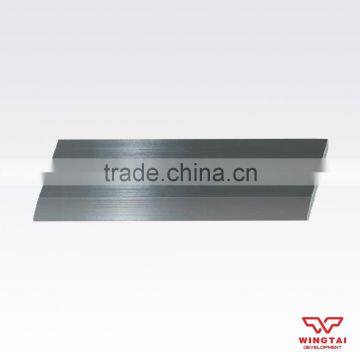

MDC standard doctor blade(carbon steel material)
Standard doctor blade has identical blade thickness, within the service life of the blade, it keeps consistent with the contact surface of the roller, therefore, its hue is the same. The blade point has unique polishing processing, will not waste and fit with the roller quickly when start printing.

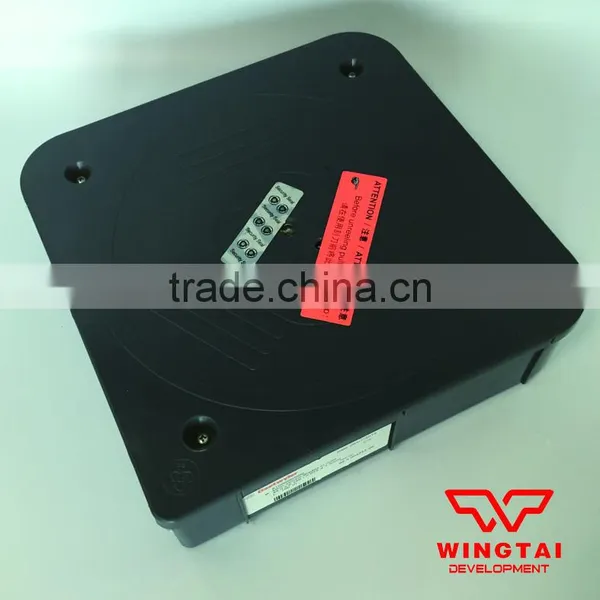

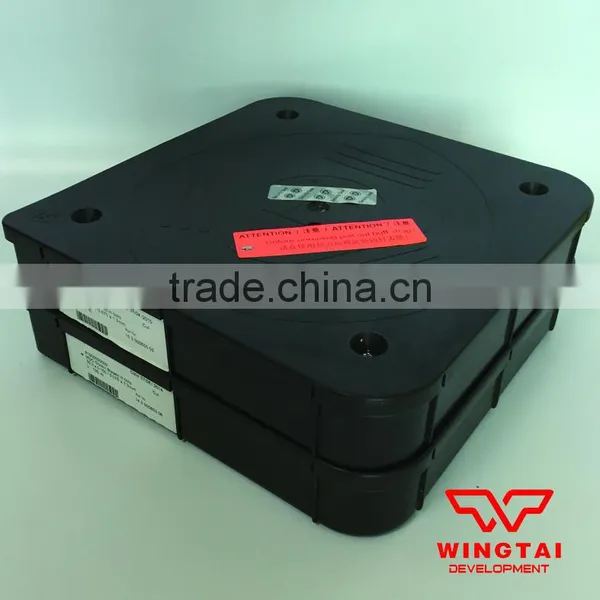

1. 100m per box, anti-corrosion plastic security packaging, more stable and durable.
2. It is suitable for more than 180m high-speed machine.
3. Do not need to open the box when using, instant available.
4. Linearity: each 3000cm length, the linearity tolerance is less than 0.6mm.
Suitable industries:
MDC doctor blade is widely used in rotogravure packing printing, publication rotogravure printing, flexo printing, flexible UV printing, coating printing, offset coating, pressure-sensitive printing, screen printing and decorative materials printing.
Advantage
·High quality European steel
·The specially polished blade guarantees smooth and sharp doctoring
·Available in all configurations
·Reduce anilox roll wear
·Can be used in solvents or water-based inks
Application
·Flexo Print
·Gravure
Specification
• WIdth 8.5 - 80.0 mm
• Thickness 0.150 / 0.200 / 0.250 / 0.300 / 0.400 mm
MDC standard doctor blade specification:
Specification |
Material |
Suitable machine speed |
|
MDC-Doctor Blades in coils |
W30*T0.15mm/0.075*1.3* L100m |
Carbon Steel |
180m / min |
MDC-Doctor Blades in coils |
W30*T0.2mm/0.125*1.7* L100m |
Carbon Steel |
180m / min |
MDC-Doctor Blades in coils |
W40*T0.15mm/0.075*1.3* L100m |
Carbon Steel |
180m / min |
MDC-Doctor Blades in coils |
W45*T0.15mm/0.065*1.3* L100m |
Carbon Steel |
180m / min |
MDC-Doctor Blades in coils |
W50*T0.15mm/0.075*1.3* L100m |
Carbon Steel |
180m / min |
MDC-Doctor Blades in coils |
W60*T0.15mm/0.075*1.3* L100m |
Carbon Steel |
180m / min |
MDC-Doctor Blades in coils |
W25*T0.2mm/0.125*1.7* L100m |
Carbon Steel |
180m / min |
MDC-Doctor Blades in coils |
W30*T0.2mm/0.125*1.7* L100m |
Carbon Steel |
180m / min |
MDC-Doctor Blades in coils |
W40*T0.2mm/0.125*1.7* L100m |
Carbon Steel |
180m / min |
MDC-Doctor Blades in coils |
W50*T0.2mm/0.125*1.7* L100m |
Carbon Steel |
180m / min |
MDC-Doctor Blades in coils |
W60*T0.2mm/0.125*1.7* L100m |
Carbon Steel |
180m / min |
MDC-Doctor Blades in coils |
W40*T0.2mm/0.08*1.7* L100m |
Carbon Steel |
Special lamella need to booking |
MDC-Doctor Blades in coils |
W80*T0.25mm/0.08*1.7* L100m |
Carbon Steel |
180m / min |
|
|
|
Daetwyler MDC Squeegee For Gravure Flexo |
Switzerland MDC-Ultralife Doctor Blade | Daetwyler MDC Blue Star Doctor Blade |
|
|
|
| Switzerland Daetwyler MDC SinoLB Doctor Blade | Swedish Swedcut Doctor Blade |
AM Doctor Blade |
