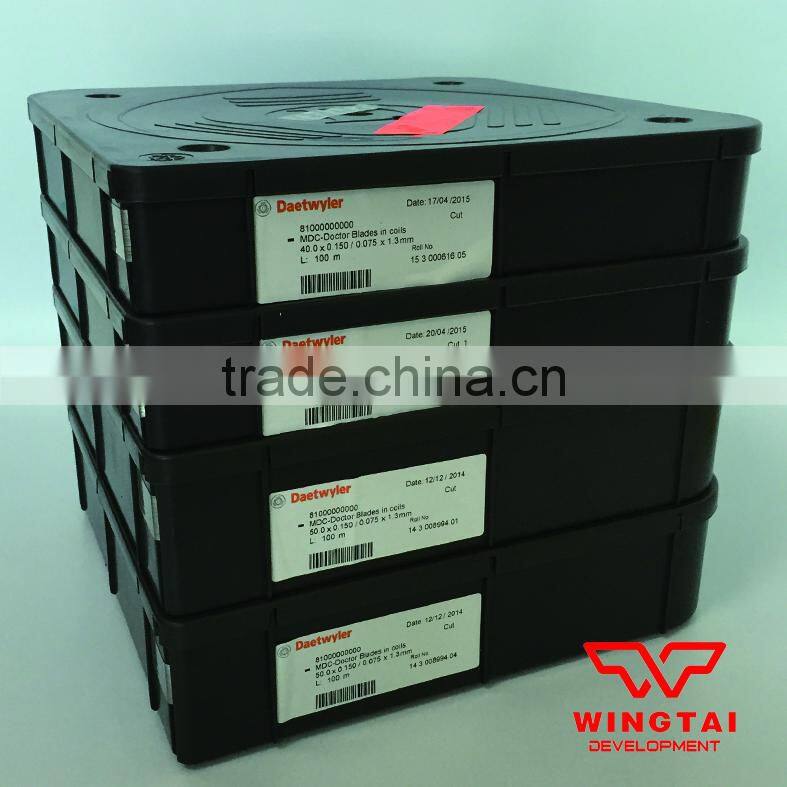

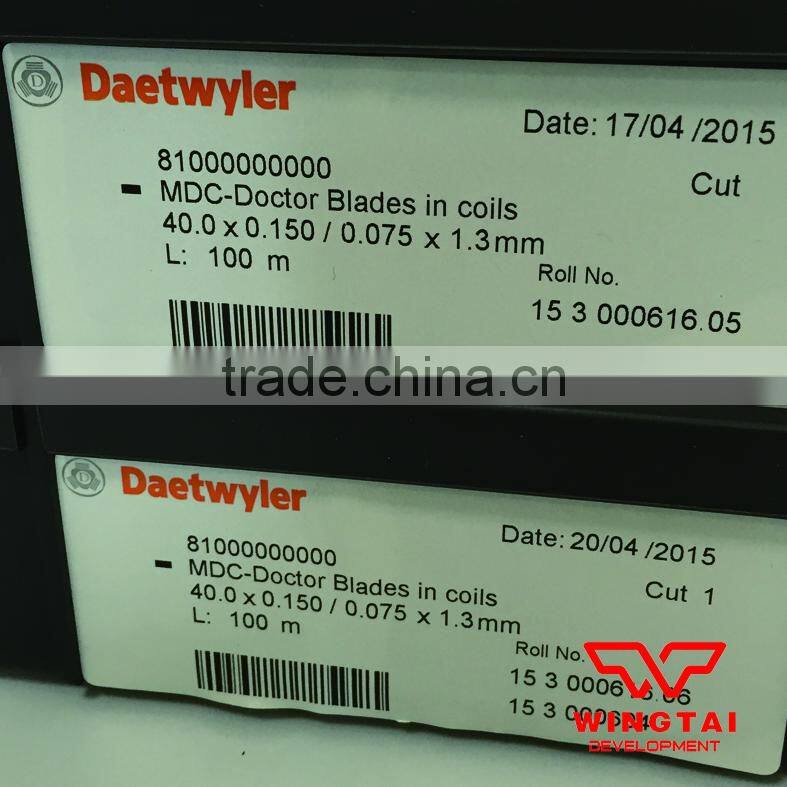

Print Consumables MDC Datwyler Doctor Blade W40/50mm 0.075mmx1.3mm
Brand: MDC
Place of origin: Switzerland
Manufacturer: Daetwyler
Model number: Doctor Blades in coils
Material: Carbon Steel (White)
Suitable machine speed: 150~300 m / min
Specification:W40/50mmxT0.15mmxL100m
Thickness: 0.15/0.2mm
Lamella: 0.075*1.3mm
Switzerland MDC doctor blades in coils, adopts the high-end steel belt!
MDC standard doctor blade(carbon steel material)
Standard doctor blade has identical blade thickness, within the service life of the blade, it keeps consistent with the contact surface of the roller, therefore, its hue is the same. The blade point has unique polishing processing, will not waste and fit with the roller quickly when start printing.
Suitable industries:
MDC doctor blade is widely used in rotogravure packing printing, publication rotogravure printing, flexo printing, flexible UV printing, coating printing, offset coating, pressure-sensitive printing, screen printing and decorative materials printing.
Usage---used for scrape off the extra ink or glue on printing roller surface.
MDC standard doctor blade other specification:
Advantage
·High quality European steel
·The specially polished blade guarantees smooth and sharp doctoring
·Available in all configurations
·Reduce anilox roll wear
·Can be used in solvents or water-based inks
Application
·Flexo Print
·Gravure
Specification
• WIdth 8.5 - 80.0 mm
• Thickness 0.150 / 0.200 / 0.250 / 0.300 / 0.400 mm
MDC standard doctor blade specification
Specification |
Material |
Suitable machine speed |
|
MDC-Doctor Blades in coils |
W30*T0.15mm/0.075*1.3* L100m |
Carbon Steel |
180m / min |
MDC-Doctor Blades in coils |
W30*T0.2mm/0.125*1.7* L100m |
Carbon Steel |
180m / min |
MDC-Doctor Blades in coils |
W40*T0.15mm/0.075*1.3* L100m |
Carbon Steel |
180m / min |
MDC-Doctor Blades in coils |
W45*T0.15mm/0.065*1.3* L100m |
Carbon Steel |
180m / min |
MDC-Doctor Blades in coils |
W50*T0.15mm/0.075*1.3* L100m |
Carbon Steel |
180m / min |
MDC-Doctor Blades in coils |
W60*T0.15mm/0.075*1.3* L100m |
Carbon Steel |
180m / min |
MDC-Doctor Blades in coils |
W25*T0.2mm/0.125*1.7* L100m |
Carbon Steel |
180m / min |
MDC-Doctor Blades in coils |
W30*T0.2mm/0.125*1.7* L100m |
Carbon Steel |
180m / min |
MDC-Doctor Blades in coils |
W40*T0.2mm/0.125*1.7* L100m |
Carbon Steel |
180m / min |
MDC-Doctor Blades in coils |
W50*T0.2mm/0.125*1.7* L100m |
Carbon Steel |
180m / min |
MDC-Doctor Blades in coils |
W60*T0.2mm/0.125*1.7* L100m |
Carbon Steel |
180m / min |
MDC-Doctor Blades in coils |
W40*T0.2mm/0.08*1.7* L100m |
Carbon Steel |
Special lamella need to booking |
MDC-Doctor Blades in coils |
W80*T0.25mm/0.08*1.7* L100m |
Carbon Steel |
180m / min |
|
|
|
Daetwyler MDC Squeegee For Gravure Flexo |
Switzerland MDC-Ultralife Doctor Blade | Daetwyler MDC Blue Star Doctor Blade |
|
|
|
| Switzerland Daetwyler MDC SinoLB Doctor Blade | Swedish Swedcut Doctor Blade |
AM Doctor Blade |
|
|
|
| AKE Printing Doctor Blade For Gravure/Flexo | Sweden AKEBOOSE Printing Back-up Blade | Sweden AKE Combinational Doctor Blade holder |
