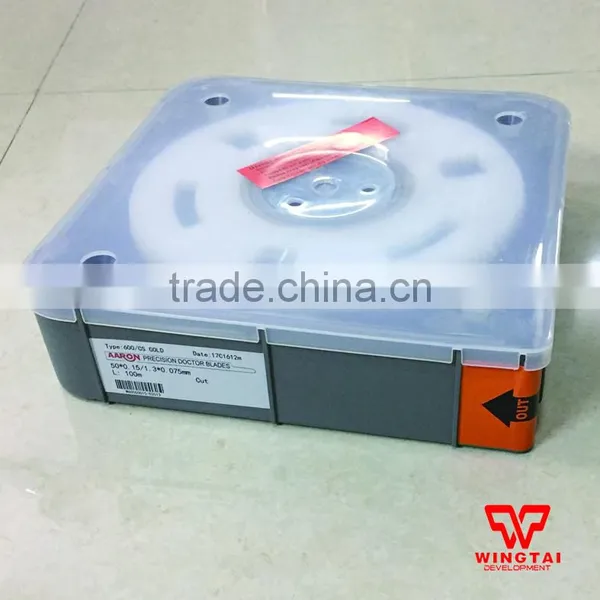

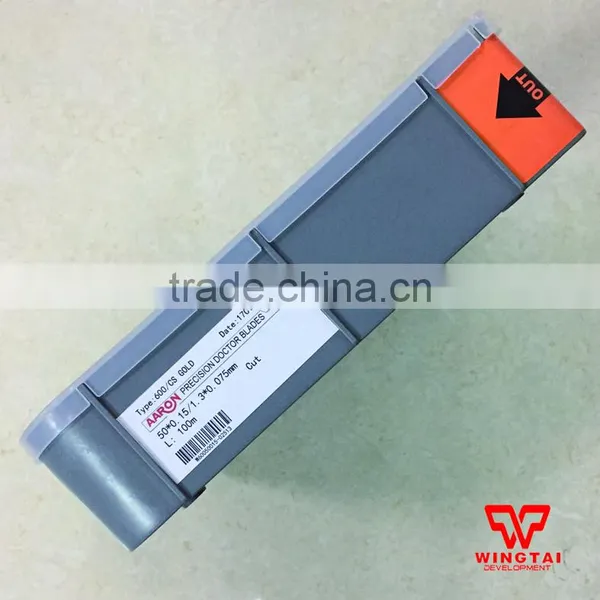

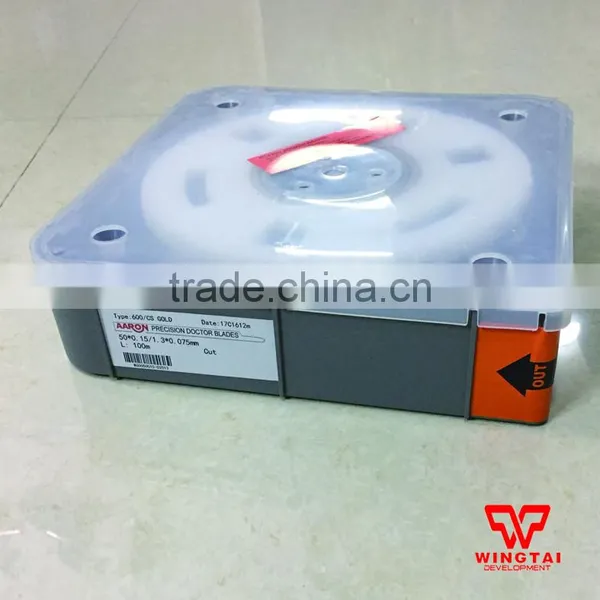

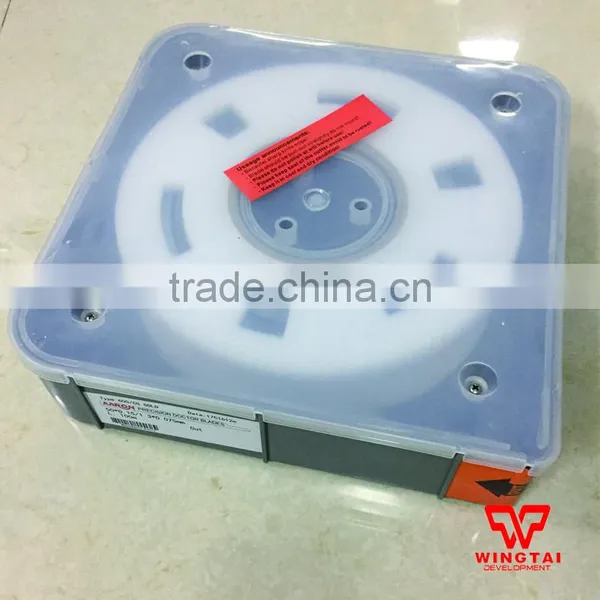

AARON Coating Printing Doctor Blade For Water-Based Ink
Steel Strip: made in Sweden
Material: Carbon steel based, harder coating on the surface
Suitable ink: UV, water-based ink, coating, and glaze, etc...
Suitable industries: gravure printing, flexo printing, coating, glaze and decorative material,etc.
Doctor blade width: 30/40/50/60mm
Doctor blade thickness: 0.15mm
Doctor blade Length: 100m
Lamella height: 1.3mm
Lamella thickness: 0.075mm
Hardness: 580HV +/-15
AARON blade adopts carbon steel substrate, the surface coated with harder coating. Coating provides better corrosion resistance and oxidation resistance. Suitable for corrosive inks and varnish for printing. harder coating on the blade tip, extend the life of the blade. Can effectively reduce printing problems and to provide a clear effect, meanwhile, can effectively reduce dragging, thereby reducing waste. And reduce the times of replacing blade, it means less downtime, printing cylinders stripping and re-carving is also reduced. During use, the coating can also protect the doctor blade from the damage of ink impurities, thereby reducing the color change and stripes It appears.
AARON doctor blade is also suitable for coating application, it is good effective when using UV ink.
1. Special lamella workmanship, make it as the round circle, protect cylinder well.
2. Good elasticity, high stability, durable and better doctoring effect.
3. Having better mechanical properties, makes a better embodiment of high-speed and lasting printing.
4. No need to grind when using, keep a good contact with the cylinder, and to achieve the better scraping results.
5.Doctor blade common width 30 /40/50/60mm, choose according to your machine and printing material.
6.Doctor blade thickness 0.15mm, standard lamella: height 1.3mm, tip’s thickness: 0.075mm
7.Doctor blade hardness: 580HV +/- 15, protect the plate cylinder.
8.Doctor blade is widely used in gravure pring, flexo printing, coating application
Lamella Size |
Material |
|
T0.15mm*W30mm*L100m |
1.3mm*0.075mm |
CarbonSteel & Coating |
T0.15mm*W40mm*L100m |
1.3mm*0.075mm |
Carbon Steel & Coating |
T0.15mm*W50mm*L100m |
1.3mm*0.075mm |
Carbon Steel & Coating |
T0.15mm*W60mm*L100m |
1.3mm*0.075mm |
Carbon Steel & Coating |
Rongtai as Germany AARON scraping knife regional general agent of China, focusing on the gravure printing equipment development and supply,
Our service will bring you value for money!
AARON scraping knife, stable quality, reasonable price, economy and practicality, is the most cost-effective of high-middle speed scraping knife.
|
|
|
