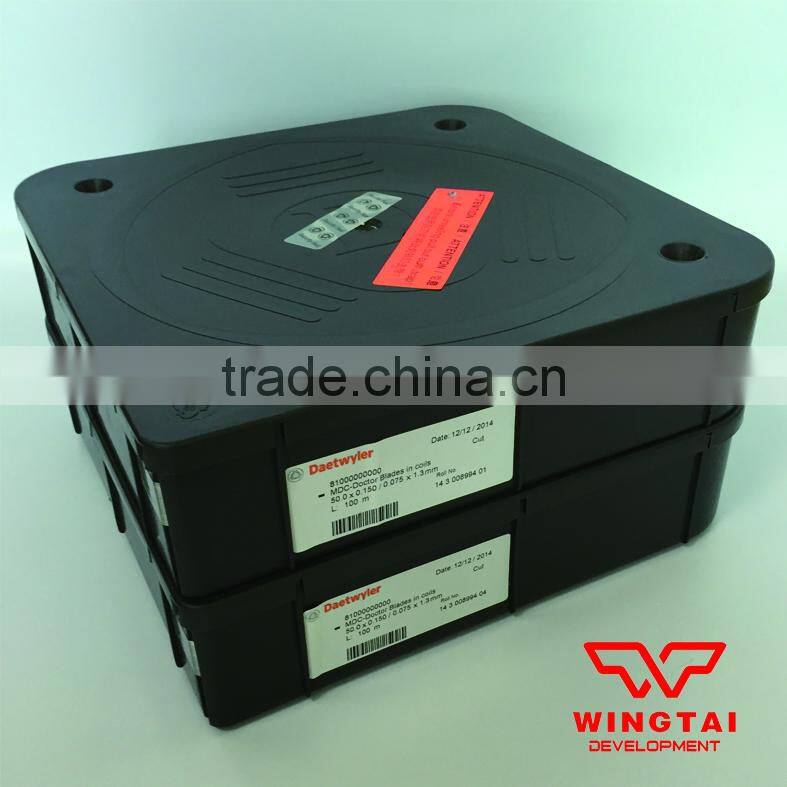

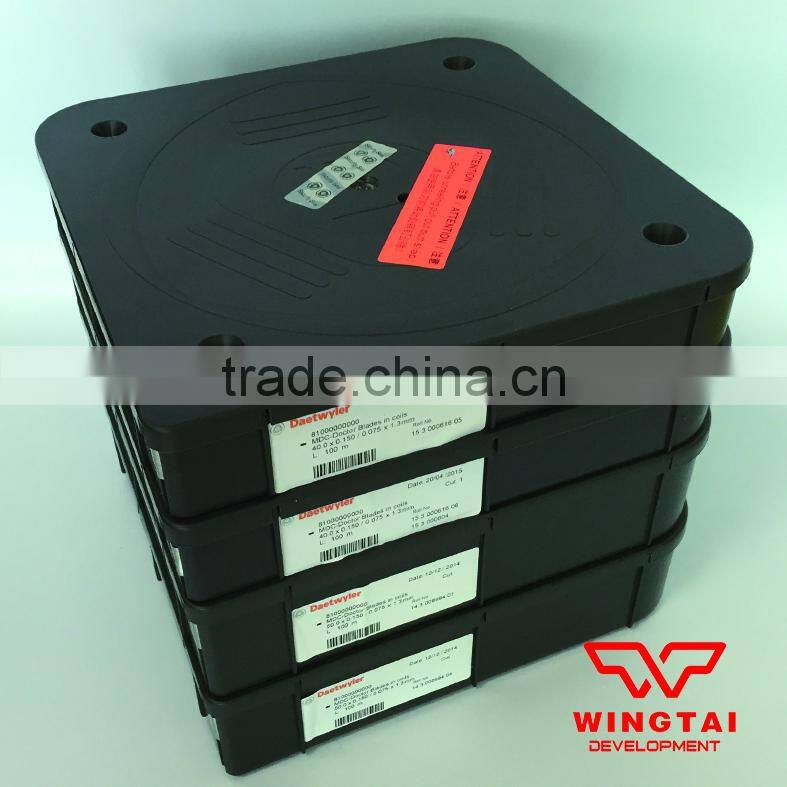

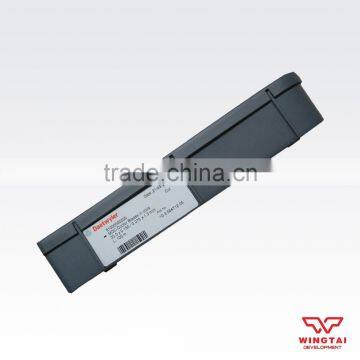

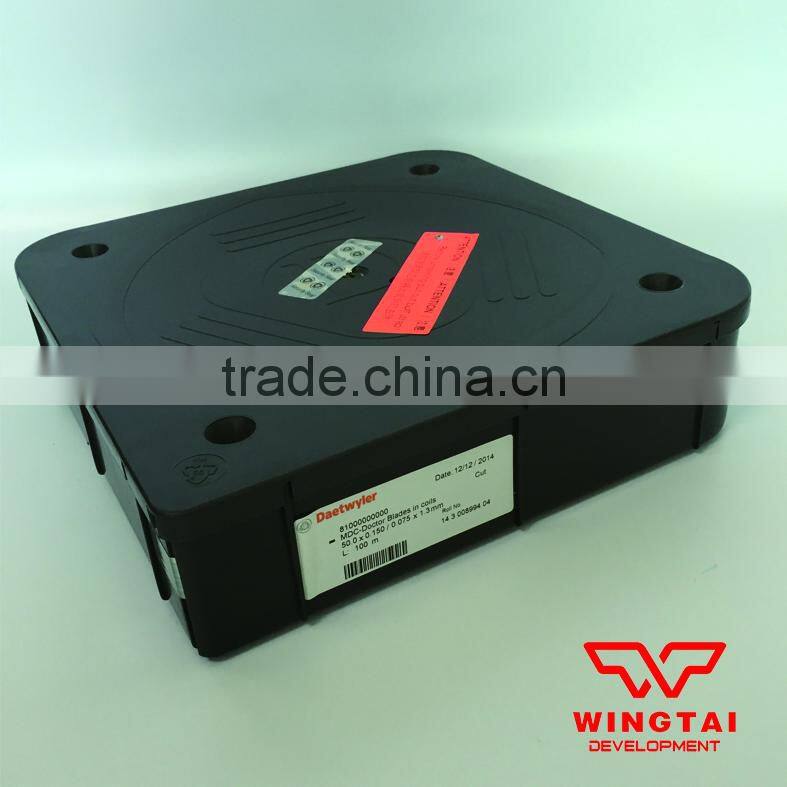

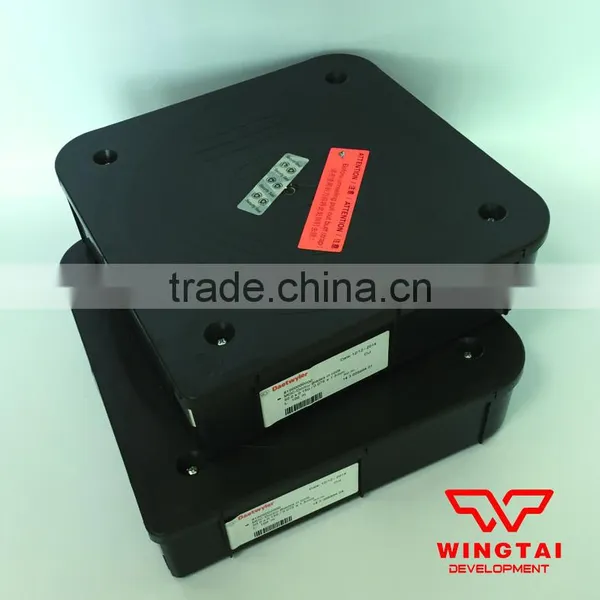

Switzerland Daetwyler MDC Carbon Steel Doctor Blade
Brand: MDC
Place of origin: Switzerland
Manufacturer: Daetwyler
Model number: Doctor Blades in coils
Material: Carbon Steel (White)
Suitable machine speed: 150~300 m / min
Common width: 30/40/50/60 mm
Common thickness: 0.15/0.2mm
Common lamella: 0.075*1.3mm
Special lamella: 0.08*1.7mm / 0.65*1.3 mm T0.2mm* W40mm*L100m (need to booking)
Switzerland MDC doctor blades in coils, adopts the high-end steel belt!
To make sure the blades quality and original, Daetwyler makes a laser maker on the blades every 1.5 meter.
Smooth Blade, good flexibility, good scratching effect, durable, reducing downtime, excellent mechanical properties. No grinding during using, can ensure a good surface contact of ink plate to achieve the best effect.
1. 100m per box, anti-corrosion plastic security packaging, more stable and durable.
2. It is suitable for more than 180m high-speed machine.
3. Do not need to open the box when using, instant available.
4. Linearity: each 3000cm length, the linearity tolerance is less than 0.6mm.
Suitable industries:
MDC doctor blade is widely used in rotogravure packing printing, publication rotogravure printing, flexo printing, flexible UV printing, coating printing, offset coating, pressure-sensitive printing, screen printing and decorative materials printing.
Usage---used for scrape off the extra ink or glue on printing roller surface.
MDC standard doctor blade(carbon steel material)
Standard doctor blade has identical blade thickness, within the service life of the blade, it keeps consistent with the contact surface of the roller, therefore, its hue is the same. The blade point has unique polishing processing, will not waste and fit with the roller quickly when start printing.
MDC standard doctor blade specification:
Item name |
Specification |
Material |
Suitable machine speed |
MDC-Doctor Blades in coils |
W10*T0.15mm/0.075*1.3* L100m |
Carbon Steel |
180m / min |
MDC-Doctor Blades in coils |
W20*T0.15mm/0.075*1.3* L100m |
Carbon Steel |
180m / min |
MDC-Doctor Blades in coils |
W30*T0.15mm/0.075*1.3* L100m |
Carbon Steel |
180m / min |
MDC-Doctor Blades in coils |
W40*T0.15mm/0.075*1.3* L100m |
Carbon Steel |
180m / min |
MDC-Doctor Blades in coils |
W50*T0.15mm/0.075*1.3* L100m |
Carbon Steel |
180m / min |
MDC-Doctor Blades in coils |
W60*T0.15mm/0.075*1.3* L100m |
Carbon Steel |
180m / min |
MDC-Doctor Blades in coils |
W40*T0.2mm/0.075*1.3* L100m |
Carbon Steel |
180m / min |
MDC-Doctor Blades in coils |
W50*T0.2mm/0.075*1.3* L100m |
Carbon Steel |
180m / min |
MDC-Doctor Blades in coils |
W60*T0.2mm/0.075*1.3* L100m |
Carbon Steel |
180m / min |
MDC-Doctor Blades in coils |
W40*T0.2mm/0.08*1.7* L100m |
Carbon Steel |
Special lamella need to booking |
MDC-Doctor Blades in coils |
W45*T0.15mm/0.065*1.3* L100m |
Carbon Steel |
Special lamella need to booking |
MDC-Doctor Blades in coils |
W25*T0.2mm/0.125*1.7* L100m |
Carbon Steel |
Special lamella need to booking |
|
|
|
