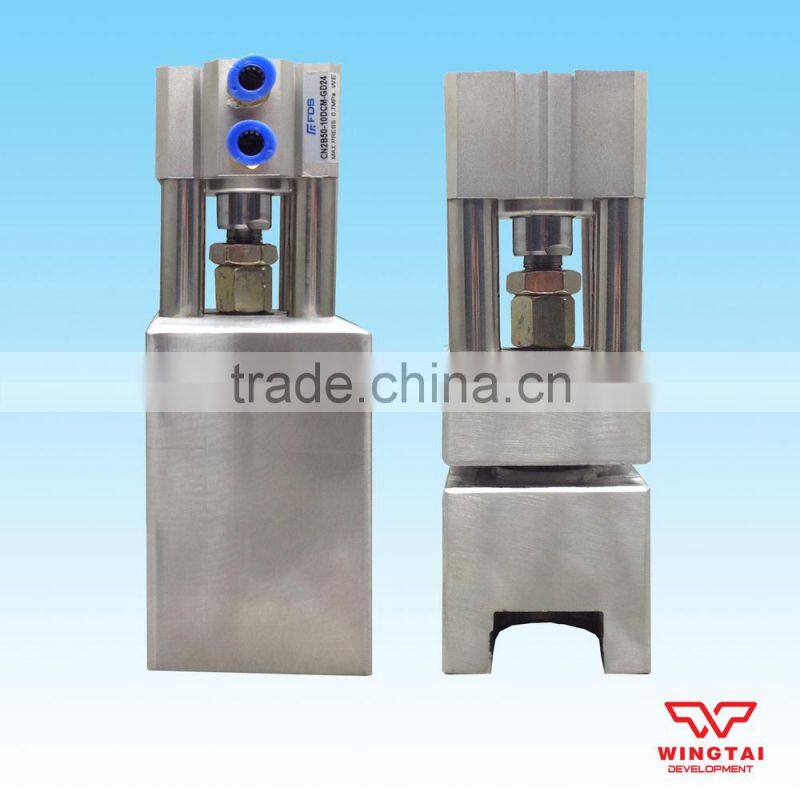

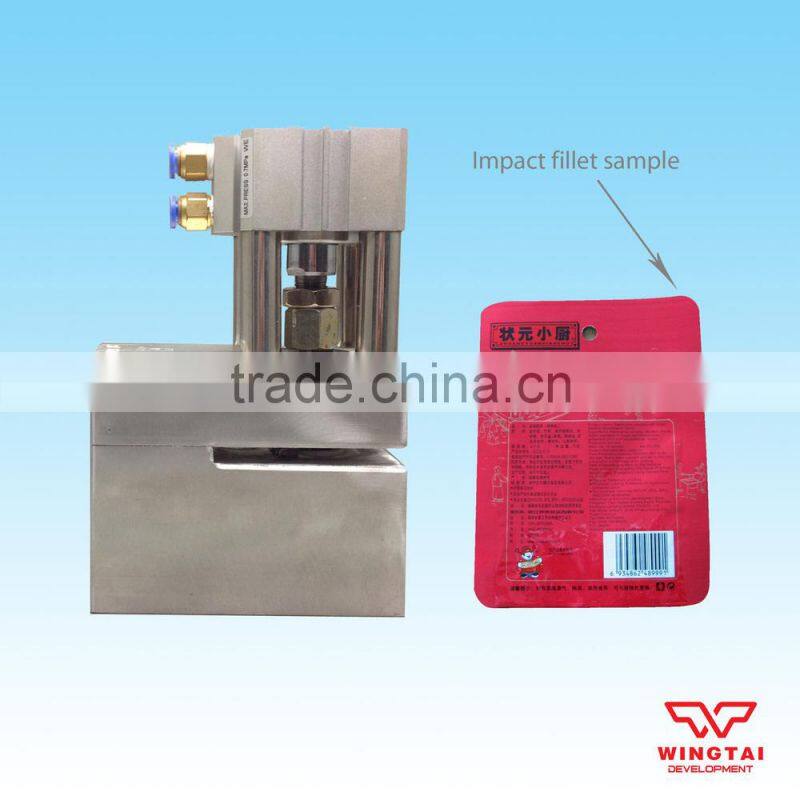

Rounded Corner Holes Pneumatic Punching Tool for Plastic Bags

We can customize the hole size according to customer's requests.

Punch Pin size: 19*9mm

Shape size: 120*65*185mm

Material:

1. Punch: Aluminum

2. Punch Pin: Imported steel

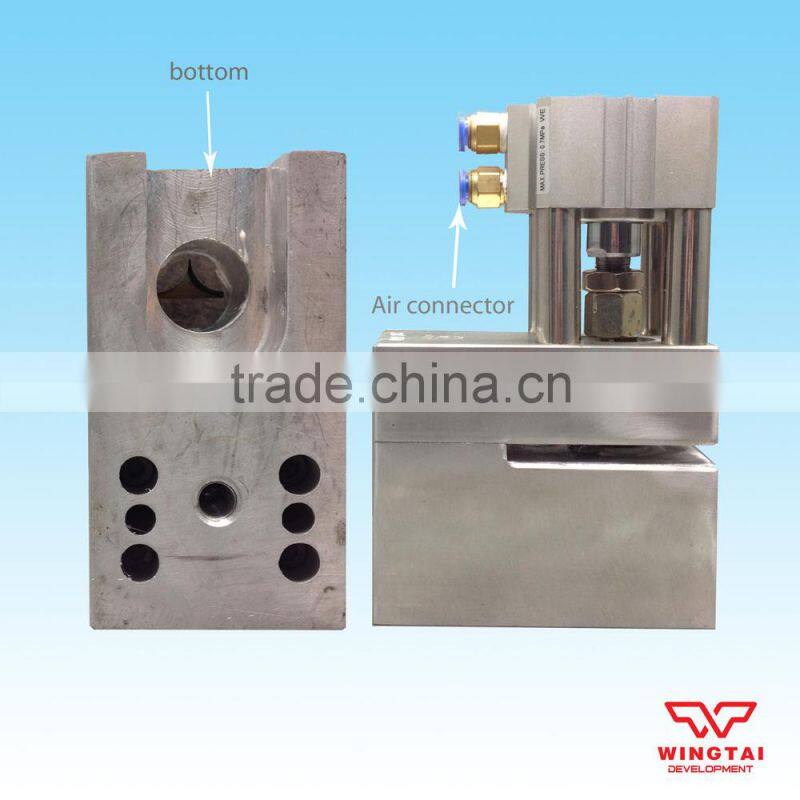

3. Air Faucet: Brass

Feature

Enhanced the plane hole, that is the cylinder and the punch is much bigger, punch section special treatment,the  pressure  of air source increased,in order to punch more thicker and harder material.

Application

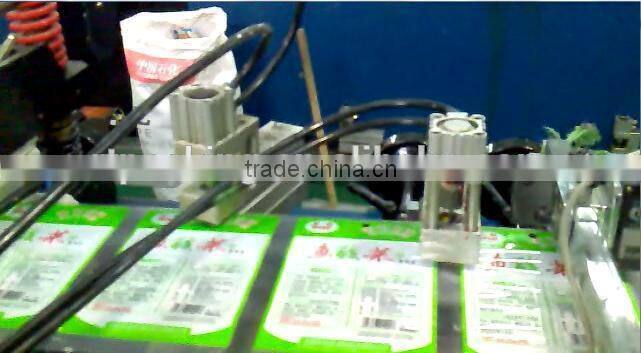

Suitable for those paper- poly bag making machine such as sealing machine, hot cutting machine, auto bag making machine and sewing machine, and use as synchronous punching machine.

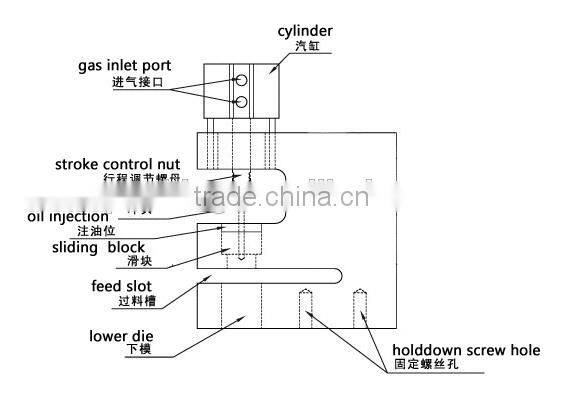

How dose it works?↓

Other holes:

1. Circular hole punching machine

Normal standard: Φ2~ 10mm, applying for punching machine and so on.

Circular pneumatic plastic bag punching machine is fit for plastic bag air hole, taken-bag pothook hole etc.

The material, such as PE, PP, OPP, PO, PVC, PPE, CPE etc, could thrust single plastic bag which is 0.02mm thickness with the speed 280 times/minute.

2. Airplane punching machine/butterfly hole punching machine

International standard: 25*6*9mm/30*6*6mm, applying for bag machine and so on.

Airplane/ butterfly pneumatic plastic bag punching machine is fit for plastic bags’ pearly-luster film, pothook hole of plastic bags.

The material, such as PE, PP, OPP, PO, PVC, PPE, CPE etc, could thrust single plastic bag which is 0.02mm thickness with the speed 280 times/minute.

3. Portable punching machine

Normal standard: 50*2mm~70*20mm, applying for hot cutting machine

Portable pouching mould is fit for shopping bag, rice bag, washing powder bag and lot kinds of plastic bags, woven bags, paper bags which are portable in design.

The material, such as PE, PP, OPP, PO, PVC, PPE, CPE etc, could thrust single plastic bag which is 0.02mm thickness with the speed 280 times/minute.

4. Lengthening portable punching machine

Normal standard, applying for dividing and cutting machine, edge banding machine.

Check this →Go to Hole Punching Machine Serie

 More punching information kindly contact with us!  : )
