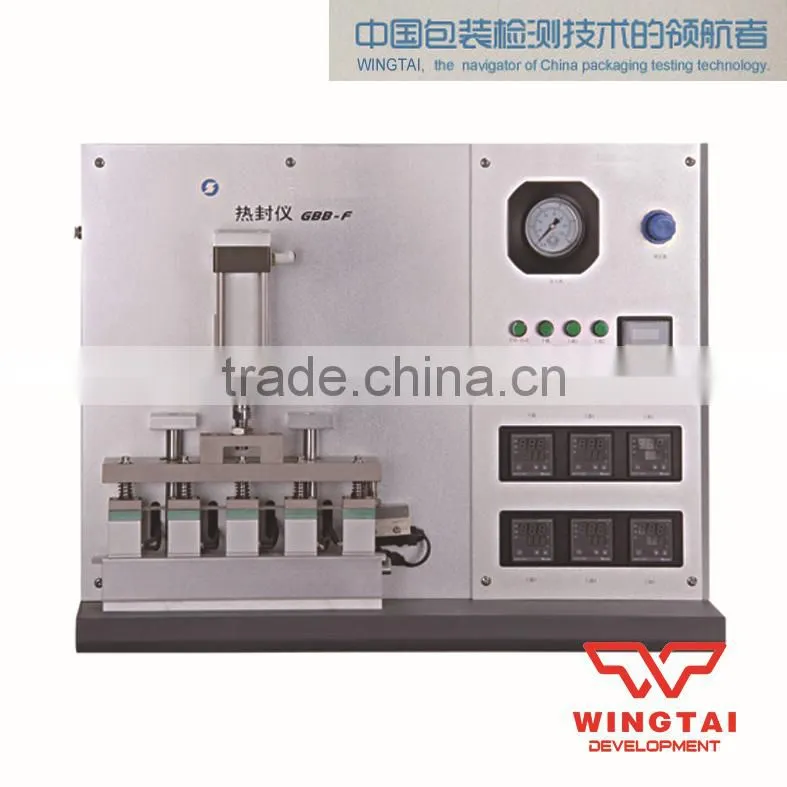

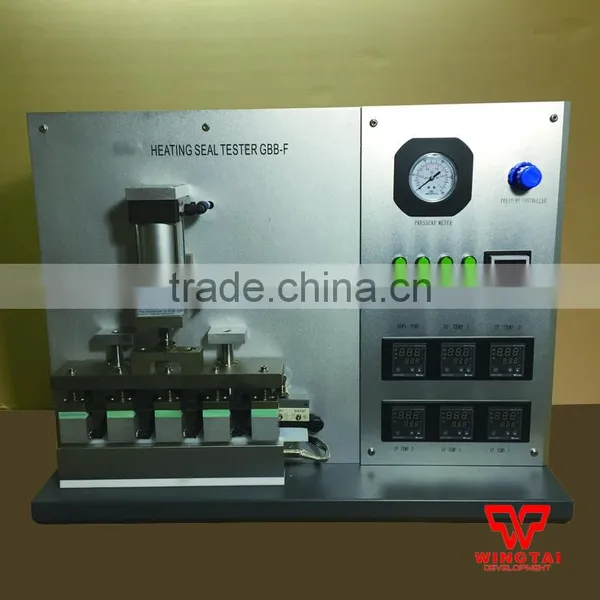

GBB-F Heat Seal Tester For Plastic Film
To test the temperature, pressure, time and strength for heat sealing of various plastic films, composite film, aluminum foil and so on, widely used in industries of plastic films, food, pharmaceuticals, inspection agency, research institute and so on.
Reach the standards:
QB/T 2358, ASTM F 2029, YBB 00122003
Technical parameters:
Heat sealing temperature |
Room temperature ~300℃ |
Temperature accuracy |
+/- 0.1℃ |
Heat sealing time |
0.01s ~ 99.99h |
Heat sealing pressure |
0.05~0.8MPa |
Heat sealing area |
45*10mm*5 points, smooth, (lower blade with silicon pad) can customize size |
Heating mode |
Double heating, Automatic or manual, air cylinder built-in |
Instrument size |
L700*B400*H540mm |
Power supply |
220V, 50 Hz |
To test the temperature, pressure, time and strength for heat sealing of various plastic films, composite film, aluminum foil and so on. Five points heat sealing, every point works independently. High efficiency, different temperature, small influence, also can be single or double testing.
Configuration:
Main machine, foot switch, power cable
(Note: air source is provided by user. )
Base application |
Film material-- smooth surface |
Suitable for heat sealing test on all kinds of plastic film, plastic laminated film, paper-plastic composite film, co-extrusion film, aluminum plating film, aluminum foil, aluminum foil composite film. Smooth surface, sealing width can be designed by user’s request. |
Film material--pattern surface |
Suitable for heat sealing test on all kinds of plastic film, plastic laminated film, paper-plastic composite film, co-extrusion film, aluminum plating film, aluminum foil, aluminum foil composite film. Heat sealing area can be designed by user’s request. |
|
Expanding application |
Jelly Bowl Cover (Note: Need to customize accessories.) |
|
