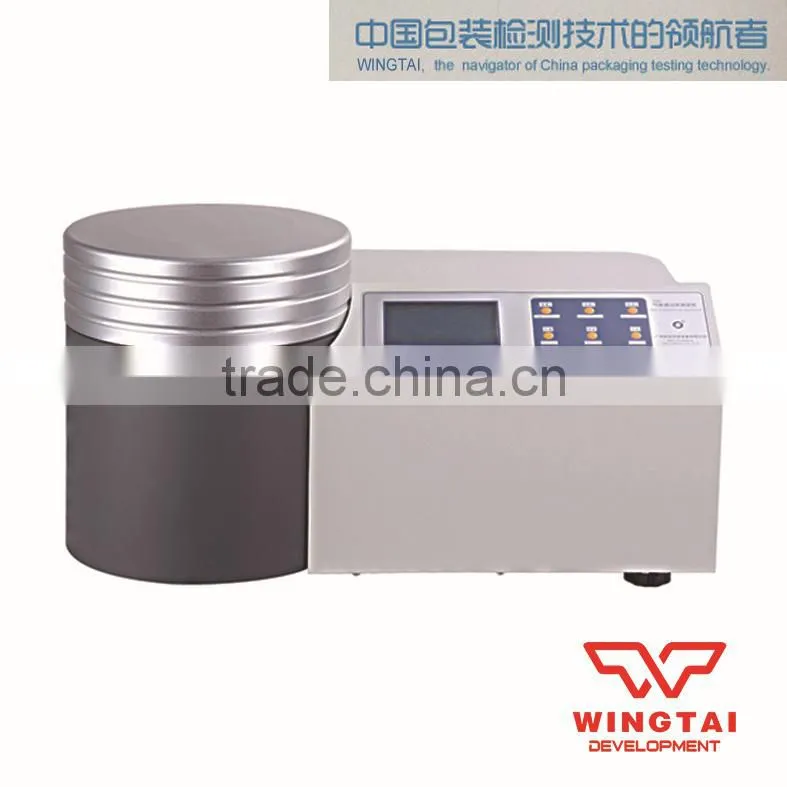

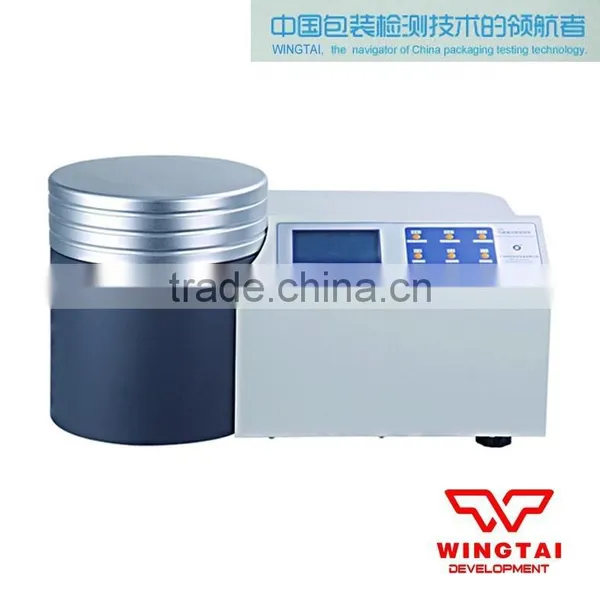

Gas Transmission Rate Tester N500
- 1000 Piece / Pieces per Month
- Shantou
- Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Rongtai | Model Number: | N500 |
Power: | Other, Electronic, 1100W | Usage: | Other, To test the gas (O2, N2, CO2 etc) transmission rate(GTR) of packaging |
Product Description
Gas Transmission Rate Tester For Packing Material N500
To test the gas (O2, N2, CO2 etc) transmission rate(GTR) of packaging materials,
such as plastic film, composite film, coextrusion film, aluminum-plated film, aluminum foil, infusion bag, sheets, paper, paper board,
solar battery panel, cellophane, ceramics and porcelain, and various containers such as bag,
bottle, can, widely used in the industries of food, pharmaceuticals, personal care, household,
electronics and so on.
Reach the standard:
GB/T 1038,ISO 2556,ISO15105-1,ASTM D1434,YBB00082003,JIS K7126-A
Testing principle:
Pressure differential method. Fix the test sample in the middle of test chamber to separate the
chamber into upperroom and lower room, between which there is a constant pressure difference.The gas molecules penetrate through the sample from higher pressure room into lower pressure room, then the system monitor the pressure change in lower pressure room and calculate the
gas transmission rate.
Technical Parameters:
Test Range | 0.02~25000cm^3/ m^2 *24h *0.1 Mpa |
Test accuracy | 0.01cm^3/ (m2*24*0.1Mpa) |
Temperature range | 15℃~45℃ |
Temperature accuracy | +/-0.01℃ |
Humidity range | 0% RH, 30~90%RH, 100%RH |
Humidity accuracy | +/-2% RH |
Vacuum degree | <10Pa |
Vacuum resolution | 0.1pa |
Test pressure | -0.1%~+0.1MPa |
Test gas | O2, CO2, N2 etc |
Sample thickness | ≤2mm |
Sample size | D 110mm, test area 50.24cm2 |
Gas supply pressure | 0.2~0.8MPa |
Dimension | 680*560*340mm |
Power supply | 220V AC 50Hz |
Power | 1000W |
Weight | 70 KG |
Temperature control: International advanced electromagnetic technology, program controlled,
automatic temperature rise and fall, speed adjustable. Precision +/-0.01℃.
2. Automatically keep pressure difference.
3. Unique chamber and gas flow design, specialized sensor, high precision and stability.
4. Adaptable to environment, not affected by environment temperature.
5. Applicable to high barrier material and low barrier material; can display excellent reflect.
6. Real time curves display of transmission rate, pressure, pressure difference and temperature.
7. Simple software interface, easy to use, auto save data and report, can print curves.
8. Wholly automatic, over pressure protection, multiple safety protection.
9. Standard film calibration and pressure calibration.
10. Excellent hermetic sealing of test chamber, can test ceramics and porcelain.
Configuration:
Main machine, power cable, communication cable, spanner, sampler, tube,gas pipe connector,
sealing grease, filter paper, software, film, vacuum pump conversion connector, 0 type ring.
User provide: nitrogen (99.999%), oxygen (99.999%), carbon dioxide (99.999%),
pressure releasing valve, computer, vacuum pump
Testing application:
Basic application | Film | Suitable for all kinds of plastic film, plastic laminated film, paper-plastic composite film, co-extrusion film, aluminum plating film, aluminum foil, aluminum foil composite film. |
Sheet | Suitable for all kinds of engineering plastics, rubber, building materials, such as PP, PVC, PVDC sheets. | |
Expanding application | Various gas | Such as oxygen, carbon dioxide, nitrogen, air, helium. |
Flammable and explosive gas | Suitable for all kinds of film to testing barrier property of flammable and explosive gas | |
Biological film degradation | Such as starch biodegradable bags | |
Aerospace materials | Such as airship gasbag helium gas permeability test | |
Paper and paperboard | Such as cigarette package aluminum foil, tetra pack packing sheet, paper bowl of instant noodles, disposable paper cup | |
Paint film | Suitable for all kinds of paint film. | |
Glass fiber fabric, glass fiber paper | Such as PTFE coating cloth, PTFE heat resistance cloth, FVMQ cloth | |
Cosmetics tube sheet | Suitable for all kinds of cosmetics tube, aluminum plastic tube,toothpaste tube sheet | |
All kinds of rubber sheet | Such as car’s tyre |
