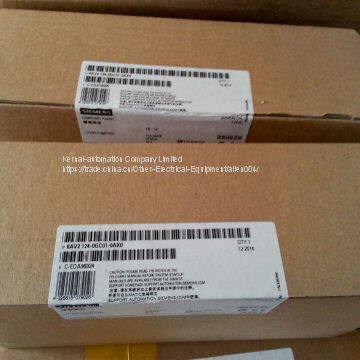

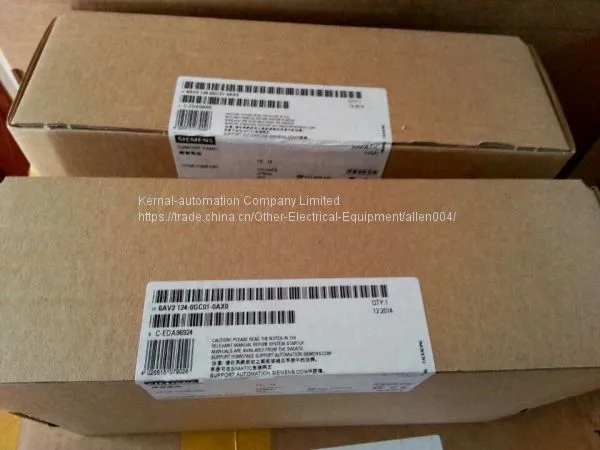

Siemens Comfort Panel 6AV2124-0GC01-0AX0
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
siemens
Place of Origin:
Germany
Model Number:
6AV2124-0GC01-0AX0
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Siemens Comfort Panel 6AV2124-0MC01-0AX0NegotiableMOQ: 1 Piece -
SIMATIC Basic KEY and TOUCH Panel(1st Generation) 6AV6647-0AA11-3AX0NegotiableMOQ: 1 Piece
-
SIMATIC HMI Basic Panel(2nd Generation) 6AV2123-2GB03-0AX0NegotiableMOQ: 1 Piece
-
SIMATIC HMI Basic Panel(2nd Generation) 6AV2123-2DB03-0AX0NegotiableMOQ: 1 Piece
-
SIMATIC Basic KEY AND TOUCH Panel(1st Generation) 6AV6647-0AK11-3AX0NegotiableMOQ: 1 Piece
Brand Name
siemens
Place of Origin
Germany
Model Number
6AV2124-0GC01-0AX0
Type
TFT

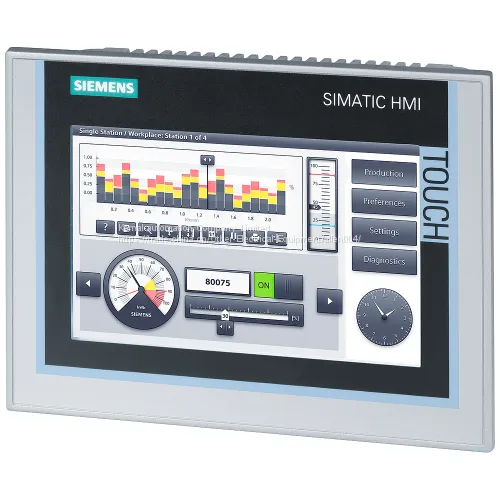

SIMATIC HMI TP700 COMFORT, COMFORT PANEL, TOUCH OPERATION, 7" WIDESCREEN-TFT-DISPLAY, 16 MIL. COLORS, PROFINET INTERFACE, MPI/PROFIBUS DP INTERFACE, 12 MB USER MEMORY, WINDOWS CE 6.0, CONFIGURABLE FROM WINCC COMFORT V11
| Display | ||
| Design of display | TFT | |
| Screen diagonal | 7 in | |
| Display width | 152.4 mm | |
| Display height | 91.4 mm | |
| Number of colors | 16 777 216 | |
| Resolution (pixels) | ||
| ● Horizontal image resolution | 800 | |
| ● Vertical image resolution | 480 | |
| Backlighting | ||
| ● MTBF backlighting (at 25 °C) | 80 000 h | |
| ● Dimmable backlight | Yes; 0-100 % | |
| Control elements | ||
| Keyboard | ||
| ● Number of function keys | 0 | |
| ● Keys with LED | No | |
| ● System keys | No | |
| ● Numeric/alphabetical input | ||
| — Numeric keyboard | Yes; Onscreen keyboard | |
| — Alphanumeric keyboard | Yes; Onscreen keyboard | |
| Touch operation | ||
| ● Design as touch screen | Yes | |
| Expansions for operator control of the process | ||
| ● DP direct LEDs (LEDs as S7 output I/O) | ||
| — F1...Fx | 0 | |
| ● Direct keys (keys as S7 input I/O) | ||
| — F1...Fx | 0 | |
| ● Direct keys (touch buttons as S7 input I/O) | 32 | |
| Installation type/mounting | ||
| Mounting in portrait format possible | Yes | |
| Mounting in landscape format possible | Yes | |
| Supply voltage | ||
| Type of supply voltage | DC | |
| Rated value (DC) | 24 V | |
| permissible range, lower limit (DC) | 19.2 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| Input current | ||
| Current consumption (rated value) | 0.5 A | |
| Inrush current A²s | 0.5 A²·s | |
| Power | ||
| Power consumption, typ. | 12 W | |
| Memory | ||
| Flash | Yes | |
| RAM | Yes | |
| Usable memory for user data | 12 Mbyte | |
| Type of output | ||
| Info LED | No | |
| Power LED | No | |
| Error LED | No | |
| Acoustics | ||
| ● Buzzer | No | |
| ● Speaker | Yes | |
| Time of day | ||
We Resell Full New Siemens HMI, Price is 10%-30% cheaper than other countries. | ||||||
Series |
Model |
Description |
||||
SIMATIC Basic Panels (1st Generation) |
6AV6647-0AA11-3AX0 |
KTP400 BASIC MONO PN,, KEY AND TOUCH, 4" | ||||
6AV6647-0AK11-3AX0 |
KTP400 BASIC COLOR PN, KEY AND TOUCH, 4" | |||||
6AV6647-0AB11-3AX0 |
KTP600 BASIC MONO PN, KEY AND TOUCH, 6" | |||||
6AV6647-0AC11-3AX0 |
KTP600 BASIC COLOR DP, KEY AND TOUCH, 6" | |||||
6AV6647-0AD11-3AX0 |
KTP600 BASIC COLOR PN, KEY AND TOUCH, 6" | |||||
6AV6647-0AE11-3AX0 |
KTP1000 BASIC COLOR DP, KEY AND TOUCH, 10" | |||||
6AV6647-0AF11-3AX0 |
KTP1000 BASIC COLOR PN, KEY AND TOUCH, 10" | |||||
6AV6647-0AH11-3AX0 |
KP300 BASIC MONO PN, KEY OPERATION, 3" | |||||
6AV6647-0AJ11-3AX0 |
KP400 BASIC COLOR PN, KEY OPERATION, 4" | |||||
6AV6647-0AG11-3AX0 |
TP1500 BASIC COLOR PN, TOUCH OPERATION, 15" | |||||
SIMATIC HMI Basic Panels (2nd Generation) |
6AV2123-2DB03-0AX0 |
KTP400 BASIC, KEY AND TOUCH OPERATION, 4" | ||||
6AV2123-2GA03-0AX0 |
KTP700 BASIC DP, KEY AND TOUCH OPERATION, 7" | |||||
6AV2123-2GB03-0AX0 |
KTP700 BASIC, KEY AND TOUCH OPERATION, 7" | |||||
6AV2123-2JB03-0AX0 |
KTP900 BASIC, KEY AND TOUCH OPERATION, 9" | |||||
6AV2123-2MA03-0AX0 |
KTP1200 BASIC DP, KEY AND TOUCH OPERATION, 12" | |||||
6AV2123-2MB03-0AX0 |
KTP1200 BASIC, KEY AND TOUCH OPERATION, 12" | |||||
Siemens Comfort Panel |
6AV2124-2DC01-0AX0 |
KTP400 COMFORT,TOUCH AND KEY OPERATION,4" | ||||
6AV2124-1DC01-0AX0 |
KP400 COMFORT,KEY OPERATION,4" | |||||
6AV2124-0GC01-0AX0 |
TP700 COMFORT,TOUCH OPERATION,7" | |||||
6AV2124-1GC01-0AX0 |
KP700 COMFORT,KEY OPERATION,7" | |||||
6AV2124-0JC01-0AX0 |
TP900 COMFORT,TOUCH OPERATION,9" | |||||
6AV2124-1JC01-0AX0 |
KP900 COMFORT,KEY OPERATION,9" | |||||
6AV2124-0MC01-0AX0 |
TP1200 COMFORT,TOUCH OPERATION,12" | |||||
6AV2124-1MC01-0AX0 |
KP1200 COMFORT,KEY OPERATION,12" | |||||
6AV2124-0QC02-0AX0 |
TP1500 COMFORT,TOUCH OPERATION,15" | |||||
6AV2124-1QC02-0AX0 |
KP1500 COMFORT,KEY OPERATION,15" | |||||
6AV2124-0UC02-0AX0 |
TP1900 COMFORT,TOUCH OPERATION,19'' | |||||
6AV2124-0XC02-0AX0 |
TP2200 COMFORT,TOUCH OPERATION,22" | |||||
