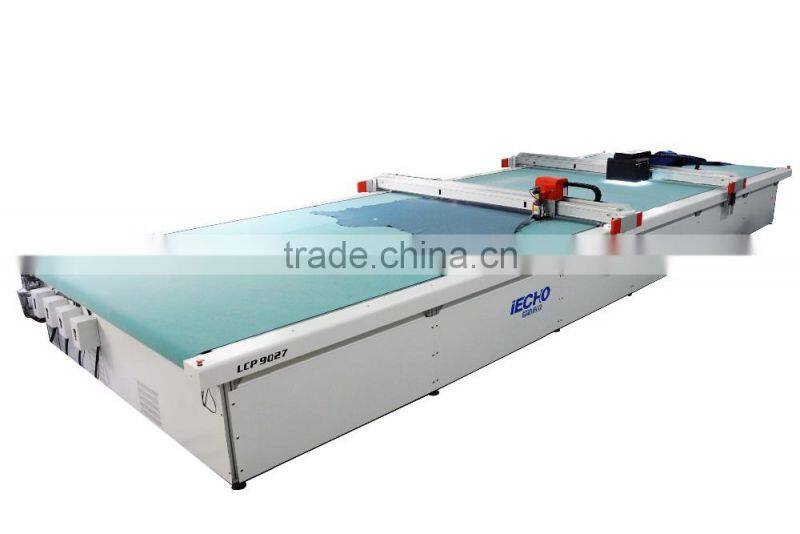

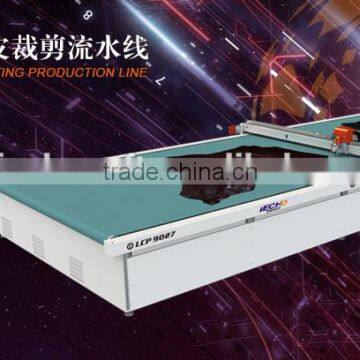

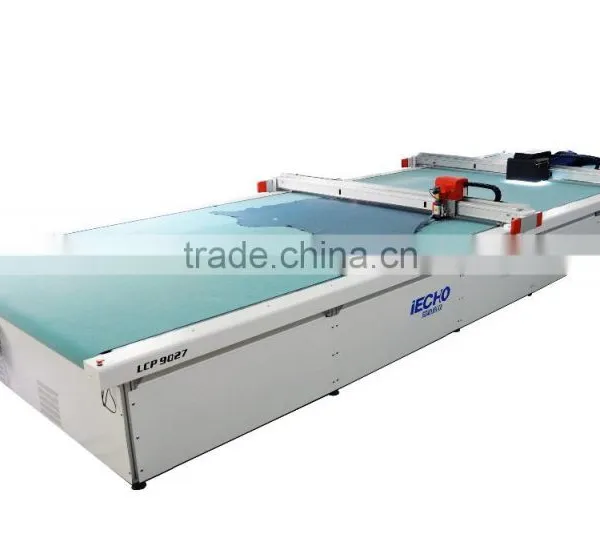

iECHO Automatic Cutting Machine
- 130 Set / Sets per Month
- Shanghai
- T/T
- Automatic zipper point cutting bundling machine(Dual Strip)
- Fully automatic ultrasonic trim dot printing and binding machine
- Automatic zipper point cutting bundling machine
- Automatic Ultrasonic Zipper Pulling Tacking
- Automatic ultrasonic folding ring bonding machine
- XCLL 300 Movable Head Hydraulic Die Cutter for Leather/Rubber/Plastic/Paper-board
Product Details
Condition: | New | Automatic Grade: | Automatic | Place of Origin: | Zhejiang, China |
Brand Name: | iECHO | Model Number: | BK-L | Type: | Cutting Machine |
Voltage: | 220V/380V | Power(W): | 7.5kw | Dimension(L*W*H): | 2330*1320*1260mm |
Weight: | 800KGS | Certification: | CE | Warranty: | 12MONTH |
After-sales Service Provided: | Overseas service center available |
Product Description

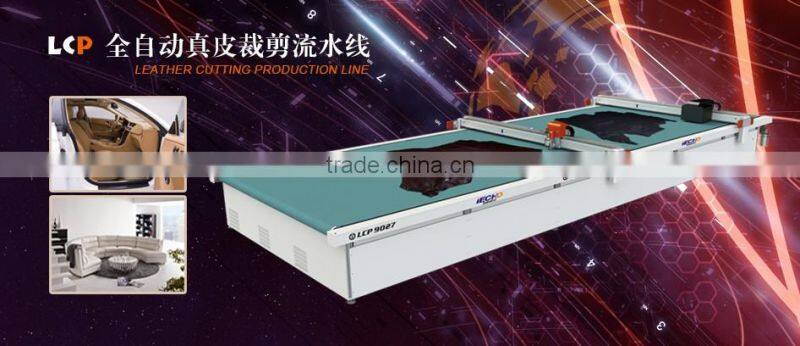

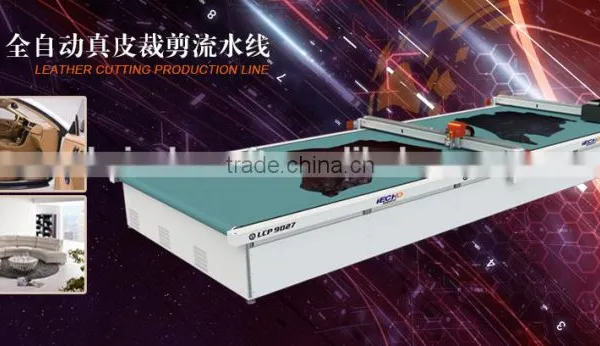

ECHO Leather Products digital designing and production solution
1. ECHO supplies the total solution to design and manufacture leather products, such as shoes, luggages,apparel, handbag,sofa, optimizes the production process, making all links including leather purchasing, skin inspection, classification, order management, marking to cutting close layout and co-ordination, it not only reflects the excellent plant production style, but also enhances the efficiency of the production, saves production cost and improves their market competitiveness.
2. For cutting rolled materials, such as fabrics, synthetic leather, and stuffing, our single-ply cutter offers the flexibility you need. With a conveyor-advance system and optional integrated off-load table/conveyor extension, the system can be configured to minimize interruptions in the cutting process. With certain materials, multiple-ply cutting is possible.
3. ECHO Products run through the flows of design-marking-cutting of leather products and optimize the best of every process.
in the design process, ECHO CAD system and the digitizer can help you to design and input 2D and 3D graphics more conveniently.
in the marking process, pattern data can be imported to ECHO super automacit marking system directly.
In the cutting process, ECHO high resolution digital cutting system can help you with fast, efficient, high-precision sampling and production
.
.
4. Tool Heads
It can combine three tool heads at optional with full set of modular design cutting head, realize one completion on various cutting technical requirements for single material
Knives:
Various tool heads can be equipped with multiple series of knives, such as oscillating knife, creasing knife, drilling tool, rotary knife, tangent knife, V-Cut knife, punching knife, and appropriate knives, and the knives can be configured with different diameters and angles according to the material cutting needs.
Motor depth control:
4. With Servo motor tool depth control, it reduces the abrasion of cutting tool and enhances the cutting quality at the same time, realizes the international advanced two-stage knife raising and falling control mode, reduce the cutting time greatly, and improves production efficiency.
Imported spare parts:
5. With imported spare parts, for example, the global leading Swiss Maxon Motor, it ensures the machine run stably for long time of more than 300 hours continuously, working life is over 20 years.
Effective Cutting Area:800mm*1300mm, 1700mm*1300mm,2500mm*1600mm,2500mm*3200mm, and the size can be customerized.
Application:
Cutting car pillow, car cushion, car seat cover, steering wheel cover and other automotive interior products.
Parameters
Max Speed | 1800mm/s |
Accuracy | 0.1mm |
Max Thickness | 25mm |
Data Format | DXF,HPGL |
Interface | Interent |
Driver | Servo Motor |
Media | Vacuum System |
Power | 220V/50HZ 380V/50HZ |
Environment | Temperature0°C-40°C |
