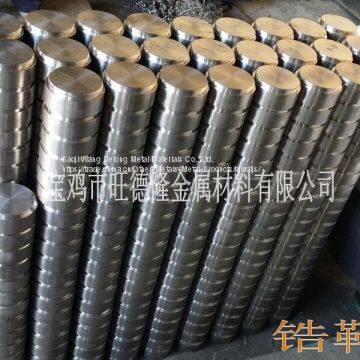

Help CenterHigh Pure Zirconium Target
Related Products
-
Zirconium Bar&rod With High QualityUS$ 40 - 60MOQ: 1 Kilogram -
ASTM B551 Zirconium Plate&sheetUS$ 40 - 60MOQ: 1 Kilogram
-
Corrosion Resistant Zirconium Tube&pipeUS$ 40 - 60MOQ: 1 Kilogram
-
High Pure Titanium TargetUS$ 10 - 20MOQ: 1 Kilogram
-
Titanium Anode for CoatingUS$ 10 - 20MOQ: 1 Kilogram
Baoji Wang Delong Metal Materials Co., Ltd.
1 |
More than 2000 products are available. |
2 |
An ISO9001:2008 , ISO14001 ,C E Certified. |
3 |
Offer you professional rare metal products and customized services. |
4 |
We feedback in 24 hours online and provide professional advice on products. |
5 |
With an annual output of 300 MT of zirconium and other precious metals. |
6 |
More than ten years experiences, Winning customers ’trust and satisfaction from all over the world. |
Item Name |
WDL Zirconium target |
|
Material |
Pure Zirconium |
|
Grade |
R60702,R60704,R60705 |
Specification |
as your order |
|
Applications |
Electronic information industry |
Chemical requirements
| Grade | Element composition(%) | ||||||||
| Zr+Hf | Hf | Fe+Cr | Sn | H | N | C | Nb | O | |
| R60702 | 99.2 | 4.5 | 0.2 | -- | 0.005 | 0.025 | 0.05 | -- | 0.16 |
| R60703 | 98 | 4.5 | -- | -- | 0.005 | 0.025 | -- | -- | -- |
| R60704 | 97.5 | 4.5 | 0.20~0.40 | 1.0~2.0 | 0.005 | 0.025 | 0.05 | -- | 0.18 |
| R60705 | 95.5 | 4.5 | 0.2 | -- | 0.005 | 0.025 | 0.05 | 2.0~3.0 | 0.18 |
| R60706 | 95.5 | 4.5 | 0.2 | -- | 0.005 | 0.025 | 0.05 | 2.0~3.0 | 0.18 |
Why Choose WDL
| Item | Product name | Manufacturing method | Product size | Relative density |
| 1 | Chromium Target | hot isostatic pressing(HIP) | maximum size1200*250mm | >99.0% |
| 2 | Titanium Target | smelting | maximum size500*300mm | >98.0% |
| 3 | Niobium Target | hot isostatic pressing(HIP) | maximum size1200*250mm | >98.0% |
| 4 | Cr-Al Target | hot isostatic pressing(HIP) | maximum size1200*250mm | >98.0% |
| 5 | Ti-Al Target | hot isostatic pressing(HIP) | maximum size1200*250mm | >99.0% |
| 6 | Si-Al Target | hot isostatic pressing(HIP) | maximum size1000*200mm | >99.0% |
| 7 | Cr-Si Target | hot isostatic pressing(HIP) | maximum size800*180mm | >96.0% |
| 8 | W-Ti Target | hot isostatic pressing(HIP) | maximum size800*180mm | >99.0% |
| 9 | Ni-Cr Target | The vacuum melting, forging and rolling | maximum size500*300mm | >98.0% |
| 10 | molybdenum alloy | hot isostatic pressing(HIP) | maximum size800*180mm | >99.0% |
| 11 | Tubulose Target | hot isostatic pressing(HIP) | Length | >96.0% |
titanium sputtering square target for coating
| Item | Product name | Purity | Grain size | Conventional proportions | Product Advantage |
| 1 | Chromium Target | 99.5%-99.95%(2N5-3N5) | High purity, high density, fine and uniform grain size, low oxygen content. | ||
| 2 | Titanium Target | 99.5%-99.99%(2N5-4N) | |||
| 3 | Niobium Target | 99.5%-99.95%(2N5-3N5) | |||
| 4 | Cr-Al Target | 99.5%-99.95%(2N5-3N5) | Cr-70Al,Cr-50Al,Cr-30Al(at%) | ||
| 5 | Ti-Al Target | 99.5%-99.95%(2N5-3N5) | Ti-30Al,Ti-50Al,Ti-67Al,Ti-70Al(at%) | ||
| 6 | Si-Al Target | 99.5%-99.95%(2N5-3N5) | Si-10Al,Si-30Al,Si-50Al (wt%) | ||
| 7 | Cr-Si Target | 99.5%-99.95%(2N5-3N5) | Cr-50Si(wt%) | ||
| 8 | W-Ti Target | 99.5%-99.95%(2N5-3N5) | W-10Ti(wt%) | ||
| 9 | Ni-Cr Target | 99.5%-99.99%(2N5-4N) | Ni-20Cr(wt%) | ||
| 10 | molybdenum alloy | 99.5%-99.95%(2N5-3N5) | |||
| 11 | Tubulose Target | 99.5%-99.95%(2N5-3N5) | Cr,Ti,Al,Nb,TiAl,SiAl,Mo alloy,CrAl,NiCr,CrTi,TiSi and so on. | Produce large aspect ratio, one-piece tubular target. Compared with planar targets, which has a uniform and fine grain size, high utilization of materials, coatings good continuity, uniform and dense coating composition and so on. |
Tel: 15091202431 QQ: 798346317
Skype: dt798346317
Mail：bjwdljs@163.com
Company website: http: //www.wdljs.com
