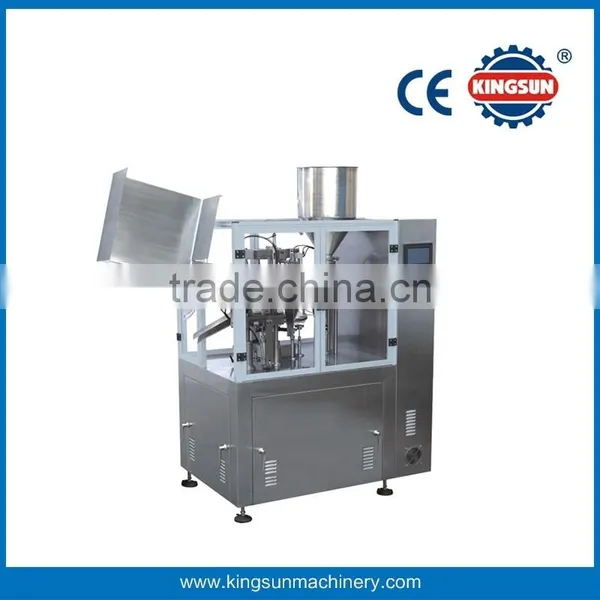

NF-60A-Z Fully Automatic Toothpaste Plastic Tube and Metal tube filling and sealing machine

Model

NF-60A/Z

Voltage

380V/50HZ, 3P

Main Motor Power

1.1kw

Hot Air Generator Power

3kw

Water Chiller

1.5kw

Packing Speed

30-50/min/max

Filling Range

3-250ml (plastic tube);  3-150 (Metal Tube)

Suitable Tube Length

50-210mm (plastic tube);  50-150mm (Metal Tube)

Suitable Tube Diameter

13-50mm (plastic tube);  13-35mm (Metal Tube)

Working Pressure

0.5-0.6MPa

Compressed Air Consumption

1.1m³/min

Control Mode

PLC+Touch Screen

Suitable Packing Material

Aluminum-plastic composite tube and Plastic composite tube,Aluminum tube

Obliquely Hanging Lining-up Tube Storehouse

Speed Adjustable

Material contacting Parts

316L Stainless Steel

Machine Body Material

304 Stainless Steel

Whole Machine  (L×W×H)

1950×1000×1800mm

Weight

850Kg

Optional:

1)      Jacket barrel heating and mixing function;

2) Jacket layer hopper device (Temp. Setting according to material and filling demand

3) Jacket layer stirring device (In case there is no material inside, it will stop mixing)
