MYG 320 Model Label Stickers Hot Foil Stamping and Die-cutting Machine

MYG 320 Model Label Stickers Hot Foil Stamping and Die-cutting Machine thumbnail-1
MYG 320 Model Label Stickers Hot Foil Stamping and Die-cutting Machine photo-1
US$ 35,000 - 45,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, flat die cutting machine
Automatic Grade:
Automatic
Contact Supplier Request Quote Chat Now
Wenzhou Kingsun Machinery Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, flat die cutting machine
Automatic Grade Automatic
Place of Origin Zhejiang, China
Brand Name Kingsun
Model Number MYG-320
Voltage 280V 1P
Power(W) 4.5kw
Dimension(L*W*H) 2300 X1200 X 1850 mm
Weight 1500kg
Certification CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

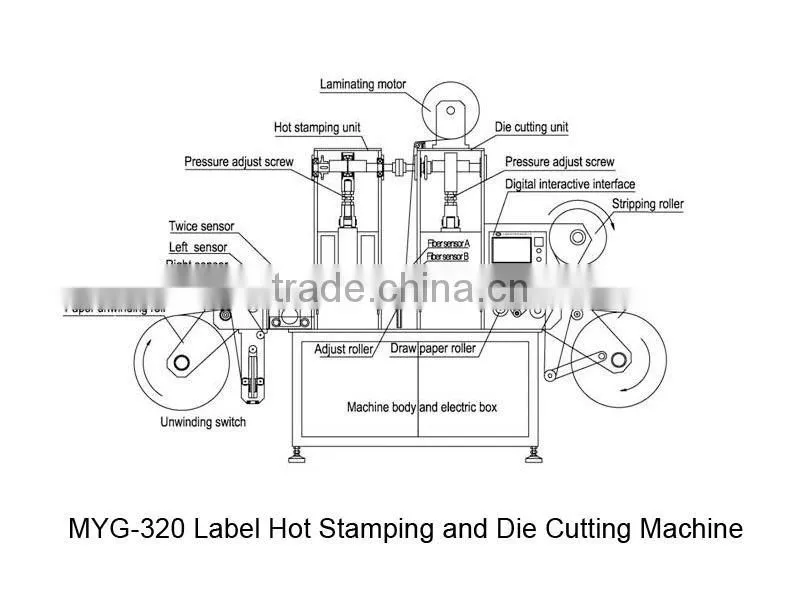

MYG 320 Label Stickers Hot Stamping and Die-cutting Machine



This machine is suitable for hot foil stamping and die cutting adhesive label sticker,film label and hologram register label ect, this machine can hot stamping and die cutting at one process, so make the label converting much efficients and better in quality.

1.Feeding system use AC servo motor
2.Use AC frequency converter
3.PID automatic thermostatical control
4.Imported holographic positioning sensor

Main technical specifications:

Stamping cutting area

320x250mm

Max paper width

340mm

Max. unwinding diameter

500mm

Max. rewinding diameter

500mm

Speed

1200-10000stamps/H

Fiol size

≤Ø180 ID=25/76mm

Position precision

±0.15mm

Foil feeding shaft

2 shafts

Main motor power

2.2kw

Whole machine power

4.5kw/280V

Overall dimensions

2300X800X1850mm

Weight

About 1500kg
