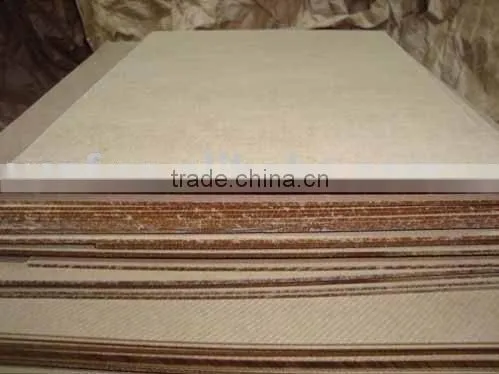

Electrical insulation pressboard
Negotiable
/ Kilogram
500 Kilograms(Min.Order)
- 10 Metric Ton / Metric Tons per Month
- Qingdao and other port
- T/T
You May Like
-
Wenzhou Yika 7.2KV High Voltage Fuse 63 Amp
-
3240 Epoxy Board, High-quality Insulation Material, Flexible Customization, Widely Applicable 3240 Epoxy Sheet
-
Chinese Factory Electrical Insulation Brown 3025 Phenolic Bakelite Resin Cotton Cloth Fabric Laminate Board Sheet Phenolic Board
-
4x8 fiberglass sheets g10 epoxy glass fiber board g10 material
-
Factory Price Bakelite Decorative HPL Press plates bakelite sheet
-
Black G10 Sheet - High Quality Carbon Fiber G10 FR4 Sheets - Precision-made PCB Materials
Product Details
| Place of Origin: | Henan, China | Brand Name: | zhufeng | Type: | Insulation Sheet |
| Application: | Low Voltage |
Product Description
Specifications
Electrical insulation pressboard100%sulfate insulating wood pulp. 0.1-0.6mmX1000mm
0.8/1/2/3/4mmX 1mX2m . standard:IEC60641
Electrical insulation pressboard
Specification:
thickness:0.8-8.0mm
width:1000mm*2000mm 1100mm*2200mm
package:pallet
| Number | Index | Unit | Specification | Standard data | |
| 1 | Thickness & tolerance | % | ≤1.6mm | ±6% | |
| ≤1.6mm | ±4% | ||||
| 2 | Density | g/cm3 | ≤1.6mm | 1.0-1.2 | |
| >1.6mm-3.0mm | 1.0-1.25 | ||||
| >3.0mm-6.0mm | 1.15-1.3 | ||||
| >6.0mm-8.0mm | 1.2-1.3 | ||||
| 3 | Water content | % | 0.1-8.0mm | ≤8.0 | |
| 4 | ash content | % | 0.1-8.0mm | ≤1.0 | |
| 5 | Tensile strength | MD | mpa | 0.1-8.0mm | ≥80 |
| CD | 0.1-8.0mm | ≥50 | |||
| 0.1-8.0mm | ≥50 | ||||
| 6 | Elongation | MD | % | 0.1-8.0mm | ≥3 |
| CD | % | 0.1-8.0mm | ≥4 | ||
| 7 | Electric Strenth | In oil | kv/mm | ≤1.6mm | ≥35 |
| >1.6mm-2.0mm | ≥30 | ||||
| >2.0mm-2.5mm | ≥27 | ||||
| >2.5mm-8.0mm | ≥24 | ||||
| 8 | oil absorbency | % | ≤3.0mm | ≥9 | |
| >3.0mm-8.0mm | ≥7 | ||||
