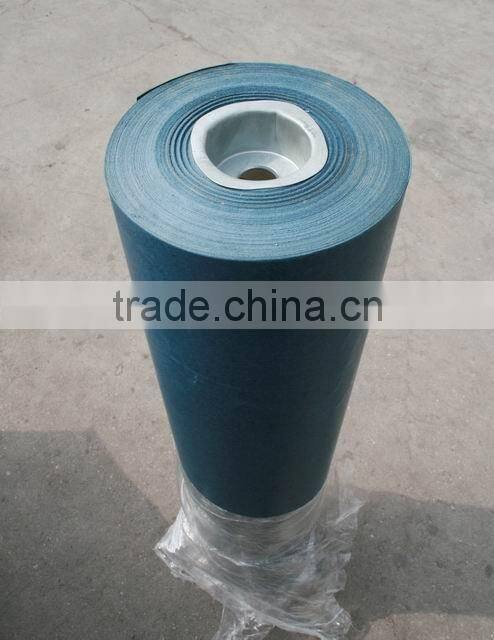

Presspaper /fish Paper/ Electrical Insulation Paper
Negotiable
/ Kilogram
1200 Kilograms(Min. Order)
- any port of china
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | zhufeng | |
| Model Number | 6520 | Type | Insulation Paper | |
| Material | Other, presspaper and film | Application | Low Voltage |
Product Description
Specifications
100%sulfate insulating wood pulp. 0.1-0.6mmX1000mm0.8/1/2/3/4mmX 1mX2m sheet. high quality ,welcome to visit
Number | Index | Unit | Standard | Test Result | |
1 | Norminal thickness | mm | 2 | 2.1 | |
2 | Norminal Grammage | g/cm3 | 1.1-1.25 | 1.14 | |
3 | Tensile Strength | MD CD | MPa | ≥105 ≥80 | 119 89 |
4 | Elongation | MD CD | % | ≥3.0 ≥4.0 | 6.9 5.8 |
5 | Breakdown Voltage | KV/mm | ≥35 | 39.8 | |
6 | PH VALUE | / | 6.0-6.9 | 8.0 | |
7 | Content of water | % | 5.0-6.0 | 5.6 | |
brown color, blue color, cyan color for presspaper.
brown color for pressboard
