Specifications

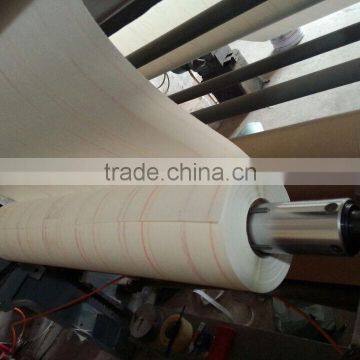

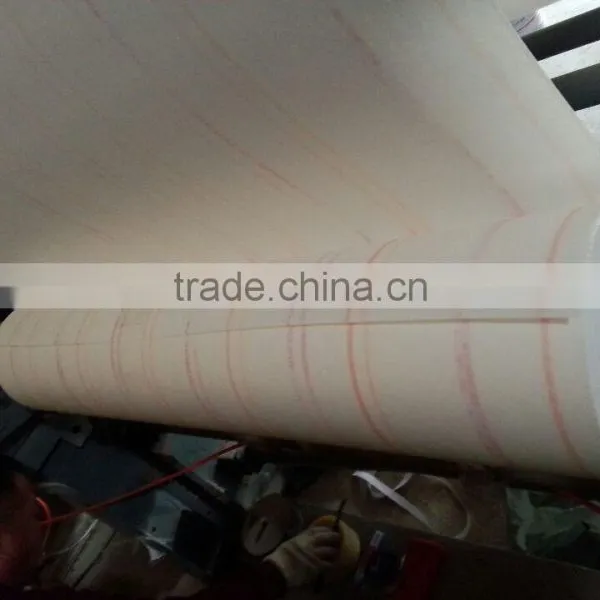

We are manufacturer of NMN insulation paper.our goods had pass ISO9001 and SGS approve. high quality and best price in Here !NMN insulation paper composite material is made of two layer of du pont nomex paper with one of polyester film
Class F insulation ( 155)
Excellent heat resistance, dielectric property and mechanical strength good cutting and overhead resistance, high stiffness good compatibility with insulation varnish.
As slot, interturn and liner insulation, F - grade motor and electric appliances.
NMN: 0.13mm 0.15mm 0.20mm 0.23mm 0.25mm 0.30mm 0.35mm 0.40mm

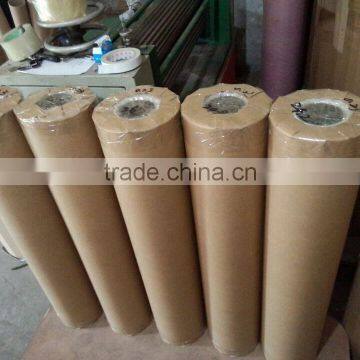

Width 914mm, sheets strips (width5mm)
Number | Index | Unit | Standard | Test Result | |
1 | Norminal thickness | mm | 0.18±0.02 | 0.18 | |
2 | Norminal Grammage | g/m2 | 210±30 | 220 | |
3 | Tensile Strength | MD(no bending) MD(after bending) CD(no bending) CD(after bending) | N/10mm | ≥160 ≥110 ≥110 ≥90 | 180 160 150 120 |
4 | Elongation | MD(no bending) CD(no bending) | % | ≥10 ≥15 | 12 18 |
5 | Breakdown Voltage | KV | ≥10 | 12 | |
6 | Average Coherence | / | No delamination | Approval | |
7 | Bond strength at 155 degree C | / | No blister,nodelamination,no adhensive flow | Approval | |
