Reliable Factory Direct Supply Mattress Pocket Spring Machine

Reliable Factory Direct Supply Mattress Pocket Spring Machine photo-1
Reliable Factory Direct Supply Mattress Pocket Spring Machine photo-2
Reliable Factory Direct Supply Mattress Pocket Spring Machine photo-3
Reliable Factory Direct Supply Mattress Pocket Spring Machine photo-4
Reliable Factory Direct Supply Mattress Pocket Spring Machine photo-5
Reliable Factory Direct Supply Mattress Pocket Spring Machine photo-6
US$ 2,800 - 8,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
BAILY
Model Number:
QH-8
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shanghai, China
Brand Name BAILY
Model Number QH-8
After-sales Service Provided Engineers available to service machinery overseas

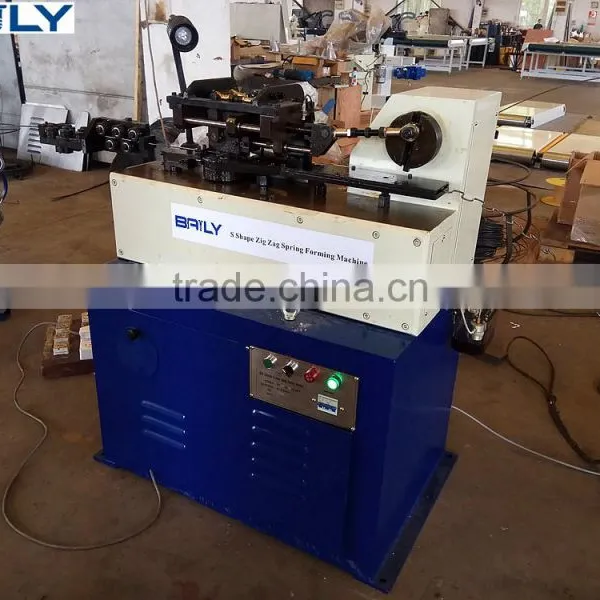

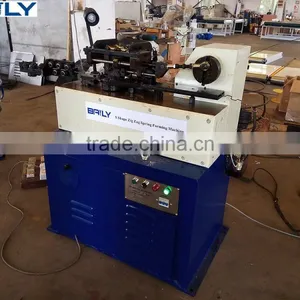

AUTOMATIC S-SHAPE  SOFA SPRING FORMING MACHINE

With the sofa S-Shape spring forming machine equipment, pitch and height of the S-shape Zigzag Spring is adjustable in certain range, pitch and height of the S-shape Zigzag Spring is adjustable in certain range. With convenient operation, it is an ideal equipment for making cushion spring used in sofa and automobile.

Available Wire Diameter
φ2.5~φ4.5mm
Spring Pitch
20~50mm
Spring Height
40~70mm
Max. Productivity
260peaks/min
Motor Power
4.0Kw
Reliable factory direct supply mattress pocket spring machine<img style="width: 750px; height: 561.98px; margin-top: 0px; margin-left: 0px;" src="///kf/HTB1jbv7QFXXXXaUXpXXq6xXFXXX0/221601019/HTB1jbv7QFXXXXaUXpXXq6xXFXXX0.jpg">
Reliable factory direct supply mattress pocket spring machine<img style="width: 750px; height: 561.98px; margin-top: 0px; margin-left: 0px;" src="///kf/HTB134kpQFXXXXXwXXXXq6xXFXXXT/221601019/HTB134kpQFXXXXXwXXXXq6xXFXXXT.jpg">
Reliable factory direct supply mattress pocket spring machine<img style="width: 750px; height: 411.98px; margin-top: 0px; margin-left: 0px;" src="///kf/HTB1Axv7QFXXXXXiXFXXq6xXFXXX5/221601019/HTB1Axv7QFXXXXXiXFXXq6xXFXXX5.jpg">
Reliable factory direct supply mattress pocket spring machine





Numerical Control S-Shape Spring Bending and Cutting Machine

BAILY numerical control S-shape spring bending and cutting machine is one of the supplymentary equipment of spring forming machine. Controlled by servo motor, positioning accuracy, it can cuts spring and bends spring end at one time.

Reliable factory direct supply mattress pocket spring machine
Reliable factory direct supply mattress pocket spring machine
Cutting length at one time
300-700mm (special length was made to order)
Proper height of S-shape spring
40~70mm
Proper spring pitch
20~38mm
Diameter of spring
2.5~4.5mm
Feeding speed
260/min
power
1.85KW
Norminal pressure
100KN
Operating air pressure
0.6~0.8MPa
Reliable factory direct supply mattress pocket spring machine
Reliable factory direct supply mattress pocket spring machine
Reliable factory direct supply mattress pocket spring machine

Wire Reel

To hold the steel wire for the spring forming machine.

S-Shape Spring Curving Machine

It can curves the Spring with certain range, two pieces a time.




Reliable factory direct supply mattress pocket spring machine

Pre-Sale Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.


After-Sale Service


*give professional advice
* Will be responsible for any product found broken or in a damaged condition





Packed in Wooden boxes or loose loaded into container.

Reliable factory direct supply mattress pocket spring machine
