Home > Products > Coil Nail Welding Machine > Best Price Multifunctional Coil Nail Welding Machinery From China

Best Price Multifunctional Coil Nail Welding Machinery From China

Name: Best Price Multifunctional Coil Nail Welding Machinery From China
Brand: BAILY
Availability: InStock

FOB Price

US$ 7,700 - 17,900 / Set

1 Set(Min. Order)

Port Shanghai China
Payment TermsT/T L/C D/P D/A Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China		Brand Name	BAILY
Model Number	JDJ-1		After-sales Service Provided	Engineers available to service machinery overseas

Product Description

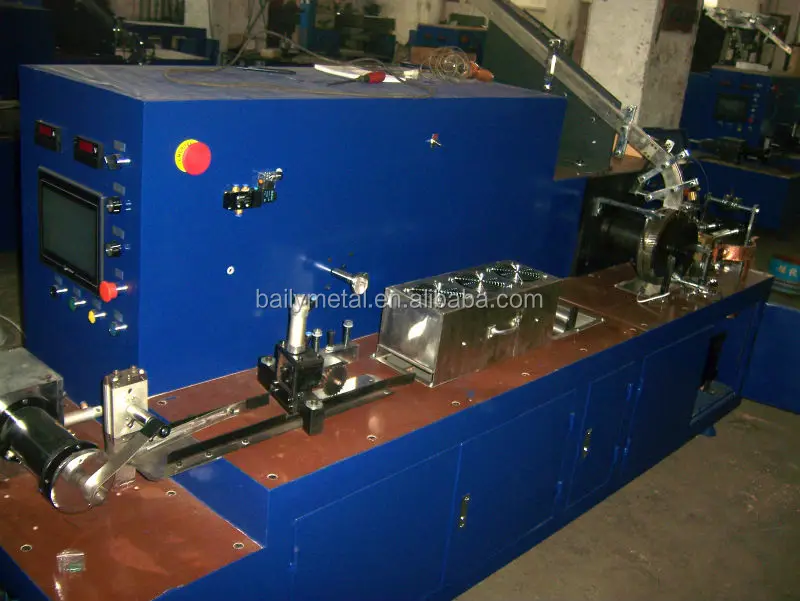

Automatic Coil Nail Collator

This collator is a special kind of automatic welding equipment for making wire coil nails. With more than 15 years experience in manufacturing this collator, we have upgraded the collator to the 4th generation with the latest technology in automatic control system. It can weld the coil nails from 20mm to 150mm with diameter ranges from 2.0mm to 4.1mm. The welding speed can be up to 2200 pcs/min. It can make various kinds of coil nails, including bright finish, coated finish, zinc plated, hot dip galvanized and stainless steel and etc..

SPECIFICATIONS FOR JDJ-B COIL NAIL COLLATOR
Item	Specification	Item	Specification
Welder	Coil Nail Collator	Wrok Power	3PH, AC360V-450V, 50-60HZ, 5KW
Nails Dia.	2.0-3.3mm	Nail Length	25-100mm
Vibrating Bowl	2200 pcs/min d 2.5 x 50mm below	Welder Power	DC300V-350V
Air Pressure	No less than 4 kgs/cm²	Rated Power	8 kw
Cooling Water	2 Liters/min	Power Max	10 kw
Working Area	L 4m X W 3m	Working Cycle	7%
Total Weight	1600 kgs	Welding Current	1500A-2000A (secondary side)

Main Features

1) High speed and easy for operation

2) Touch Screen Display

3) Automatic welding System

4) Low noise with high efficiency

Detailed Images

Machine Parts

Name: Dies

Material: Stainless Steel

The dies are used to make different diameters of coil nails.

They can fit for smooth shank, screw shank or ring shank nails.

Machine Parts

Name: Vibrator
Steady vibrator with hard steel brackets to support.

Packing & Delivery

Packaging
Size	2.9 X 1 X1.4M
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	2.1 X 1.1 X 1.45M
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

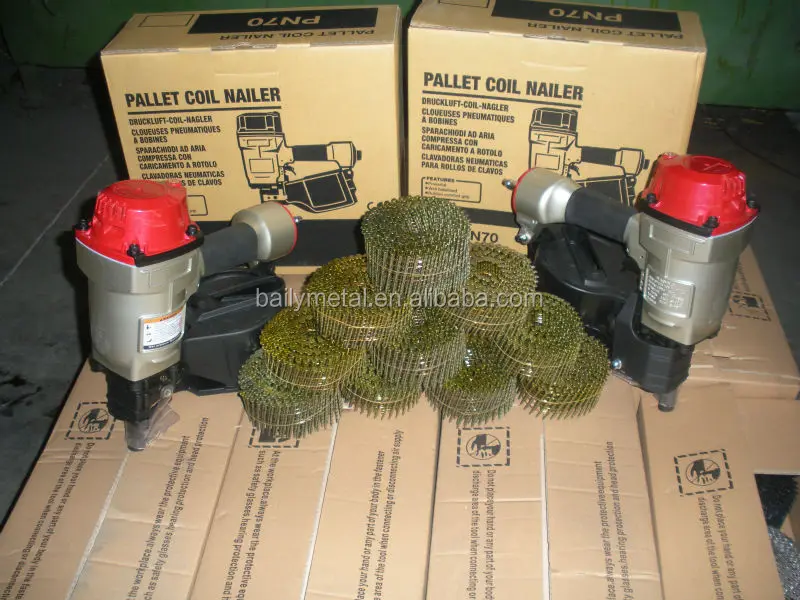

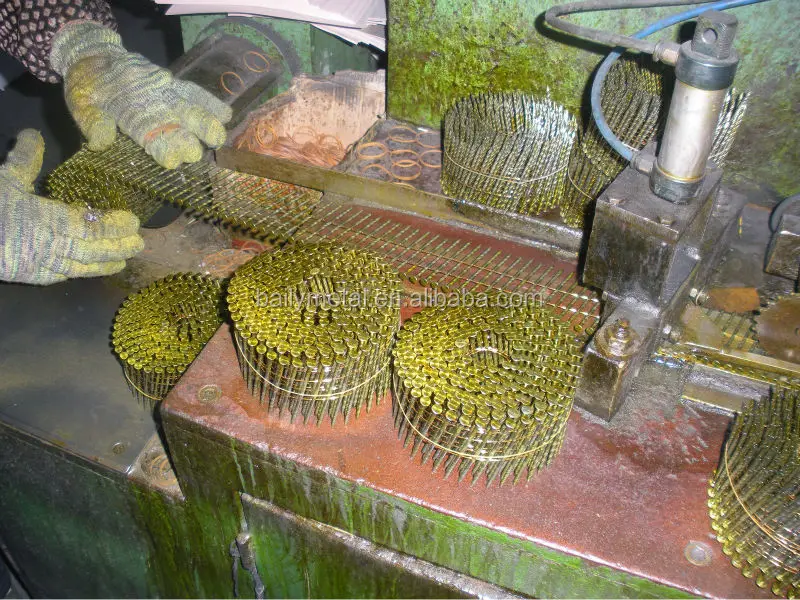

COIL NAILS

NAIL MAKING MACHINE

THREAD ROLLING MACHINE
