best quality electrical wire making machine

Name: best quality electrical wire making machine
Brand: BAILY
Availability: InStock

FOB Price

US$ 7,800 - 18,900 / Set

1 Set(Min. Order)

Port Shanghai China
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China		Brand Name	BAILY
Model Number	JDJ-1		After-sales Service Provided	Engineers available to service machinery overseas

Product Description

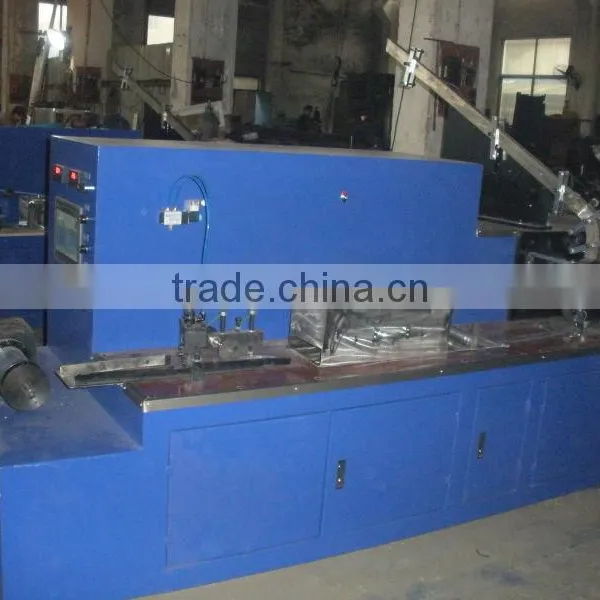

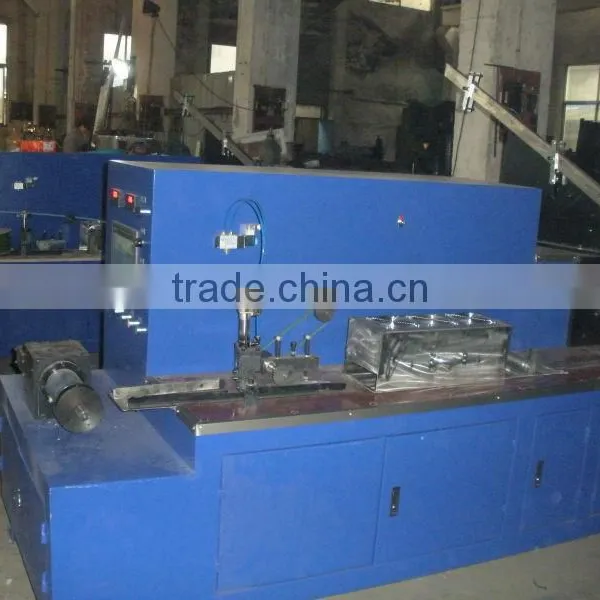

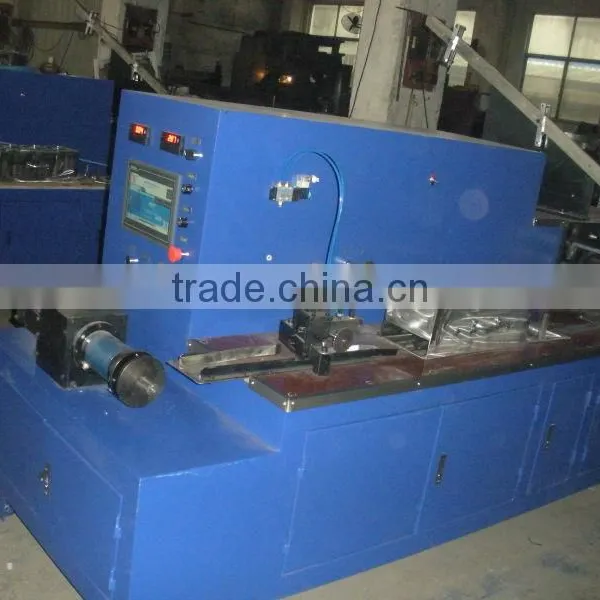

Automatic Coil Nail Collator

This collator is a special kind of automatic welding equipment for making wire coil nails. With more than 15 years experience in manufacturing this collator, we have upgraded the collator to the 4th generation with the latest technology in automatic control system. It can weld the coil nails from 20mm to 150mm with diameter ranges from 2.0mm to 4.1mm. The welding speed can be up to 2200 pcs/min. It can make various kinds of coil nails, including bright finish, coated finish, zinc plated, hot dip galvanized and stainless steel and etc..

SPECIFICATIONS FOR JDJ-B COIL NAIL COLLATOR
Item	Specification	Item	Specification
Welder	Coil Nail Collator	Wrok Power	3PH, AC360V-450V, 50-60HZ, 5KW
Nails Dia.	2.0-3.3mm	Nail Length	25-100mm
Vibrating Bowl	2200 pcs/min d 2.5 x 50mm below	Welder Power	DC300V-350V
Air Pressure	No less than 4 kgs/cm²	Rated Power	8 kw
Cooling Water	2 Liters/min	Power Max	10 kw
Working Area	L 4m X W 3m	Working Cycle	7%
Total Weight	1600 kgs	Welding Current	1500A-2000A (secondary side)

Main Features

1) High speed and easy for operation

2) Touch Screen Display

3) Automatic welding System

4) Low noise with high efficiency

Detailed Images

Machine Parts

Name: Dies

Material: Stainless Steel

The dies are used to make different diameters of coil nails.

They can fit for smooth shank, screw shank or ring shank nails.

Machine Parts

Name: Vibrator
Steady vibrator with hard steel brackets to support.

Packing & Delivery

Packaging
Size	2.9 X 1 X1.4M
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	2.1 X 1.1 X 1.45M
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packing & Delivery

Packed in Wooden boxes or loose loaded into container.

Our Service

Pre-Sale Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sale Service

*give professional advice

* Will be responsible for any product found broken or in a damaged condition.

Factory supply brand new low price 15 degree ring shank nail for wood pallet

High quality cheap price nail machine factory supply

Cheap thread rolling machine from chinese factory

FAQ

Q1. What is your sample policy?
A: We can supply the small samples , but the customers have to pay the courier cost.We will deduct the same amount in the future order.

Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU, DDP.

Q3. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 2-3 weeks for order quantity more than one container

Q4. Do you have any MOQ limit for 15 degree wire coil nails?
A: In general, our MOQ for 100 boxes for each size. If you have a special request, pls don't hesitate to let us known.

Q5. How do you ship the goods and how long does it take to arrive?
A: Our samples are sent by DHL, UPS, FedEx or TNT. It usually takes 3-7 days to arrive. Our mass cargoes are shipped by Ocean. It depends on the destination port.

Q6. What is your terms of payment?
A: T/T 30% as deposit, and 70% before loading. We'll show you the photos of the products and packages before you pay the balance.

Q7. How to proceed an order for wire coil nails ?
A: Firstly, let us know your requirements or application.
      Secondly, We quote according to your requirements or our suggestions.
    Thirdly, customer confirms the samples and places deposit for formal order.
      Fourthly, We arrange the production.

Q8: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
     2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
