Specifications

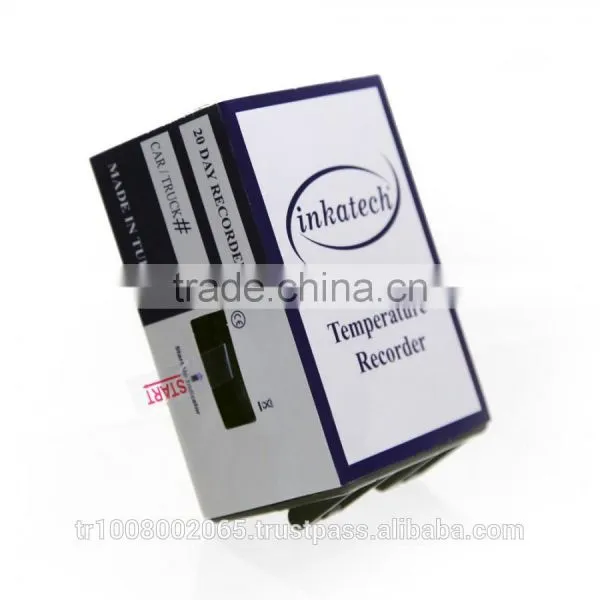

Manual Spy In Transitinkatech Strip Chart Temperature Recorder is an inexpensive, highly reliable battery powered time and
temperature recorder. It generates a permanent strip chart record of temperature conditions during storage or
transportation of temperature sensitive products. Available in 10, 20, 40 or 60 day duration models, the unit is easily activated by simply removing a start tab.
The unit is then sealed up and placed at the desired monitoring location. At destination or at the end of the recording episode, the chart is removed from the recorder and the temperature history is reviewed.
Temperature vs. time is clearly graphed on a narrow strip of pressure-sensitive paper.
Simple to use strip chart recorders are the standard in the perishables shipping industry, and the "inkatech" unit is the standard for service, performance and cost effectiveness. The chart is clear and easy to read, and represents documentary evidence of the temperature maintenance in transit. Proper running is verified through a clear view window.
PRODUCT SPECIFICATIONS
Temperature Range: -28°C to +38°C (-13°F to +95°F)
Temperature Sensor: NIST Traceable Bi-Metal Coil (HACCP Required)
Temperature Accuracy: ±1°C (1.9°F) or Better
Chart Total Length: 91.4cm (36")
Drive: Solid State Quartz Controlled Clock Motor
Time Accuracy: Average 20 Seconds per Month
Battery: AA Alkaline
Shelf Life: Three Years
Dimensions: 13.9cm x 11.4cm x 6.8cm (L x W x H) 5.5" x 4.5" x 2.67"
Unit Weight: 291 gm (0.64 lbs | or 10.26 oz)
Case Lot Size: 20 Recorders per Case
Case Weight : 6 kg (13.2 lbs)
Case Dimensions: 42.2cm x 33.7cm x 14.6cm (L x W x H) 16.6" x 13.25" x 5.75"
Instruction: English and Spanish
Models Available: 5,10, 20, 40,60,75 and 90 day models
