6v 12v 24v dosing pump used for all wild range applications

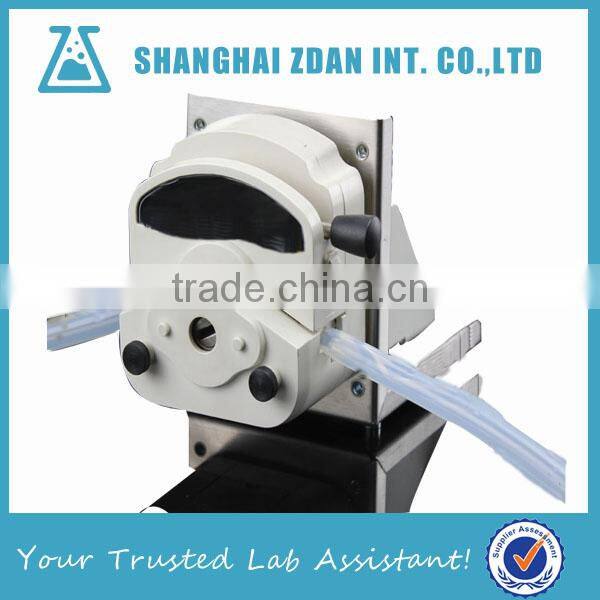

Dosing pump

Why use dosing pumps?

Dosing pumps are excellent problem solving pumps and offer the following benefits:

1. Abrasion Resistant
2. No moving parts in the liquid stream
3. Accurate Dosing
4. self priming
5. can pump liquids containing up to 80% inorganic silids
6. aseptic pumping smooth liquid passage
7. easy and completely cleanable without disassembly
8. suitable for handing shear sensitive products
9. Can run dry
10. Low cost of ownership
11. No seals
12. Reversible rotation,empties line or blockages
13. Can pump abrasive,very viscour or high density fluids
14. Low cost of ownership

Application areas:

Peristaltic pumps make them ideally suited to a wide range of application areas,including:

1.  Abrasive fluids: lime mixing,kieselguhr,circulation and dosing;
2. Corrosive fluids: ferric chloride,copper sulphate and similar activators chemical,acids,including alkalis
3. Shear sensitive fluids:coagulants,flocculants and bacterial remediation treatments
4. Water Treatment:dosing lime,hyplchlorite,silicate,polymer,firric chloride,sludge transfer and filter press feeds
5. Chemical industry:corrosive acids,bases and hydrocarbons
6.  Laboratory Systems:biological broths to polluted streams
7.  Battery Filling,Chemical Cleaning,Equipment sterilising,Seed coating
8. Agriculture:feed additives,animal vaccines and waste transfer
9. Food and Beverage:breweries ,diatormaceous earth,wineries,dairies,sugar refining,abattoirs
10. Paper and Pulp:pulp and dyes
11. Mining industry:dosing process reagents,thickener underflow,polymers and slurry transfer


specification

• Max.Flow rates                                           2200ml/min
• Tube Wall Thickness                                  1.6mm - 7.9mm
• Tube inner diameter                                   1.6 mm
• power supply                                              12V 24V 36V & 230V 50Hz
• motor model                                                3-12


Working principle:

1.The peristalic pump is based on alternating compression and relaxation of the hose drawing the contents into the hose or tube operating in a similar way to our throat and intestines.

2.A roating shoe or roller along the length of the hose or tube totally compressing it and creating a seal between suction drawing product into the pump.

3.Upon restitution of the hose or tube a strong vacuum is formed drawing product into the pump

4.The medium to be pumped does not come into contact with any moving parts and is totally contained within a robust ,heavyduty hose or a precision extruded tube

5.This pump action makes the pump suitable for accurate dosing appliactions and has a pressure rating up to 16 bar(hose) and 2 bar(tube).

6.The high pressure hose has inner layer of 2-6 reinforcement layers and on outer layer,which allow higher working pressure and generate higher suction lifts than non re-enforced tubing.

Advantage:

1.Low MOQ: It can meet all kinds of client’s quantity.

2.OEM Accepted : We can produce any your design .

3.Good Service : We treat clients as friend.

4.Good Quality :We have strict quality control system .Good reputation in the market.

5.Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
