Automatic Chemical Dosing Pump

Shanghai Zdan International Co., Ltd.
Automatic Chemical Dosing Pump thumbnail-1
Automatic Chemical Dosing Pump photo-1
US$ 20 - 1,000 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
peristaltic pump
Model Number:
peristaltic pump
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name peristaltic pump
Model Number peristaltic pump
Theory Vacuum Pump
Structure Screw Pump
Usage Water
Power Electric
Standard or Nonstandard Standard
Fuel Other, electric
Pressure Low Pressure
Application Maritime

automatic chemical dosing pump



204K easy load type chemical dosing pump OEM popular model accept all payment





automatic chemical dosing pump

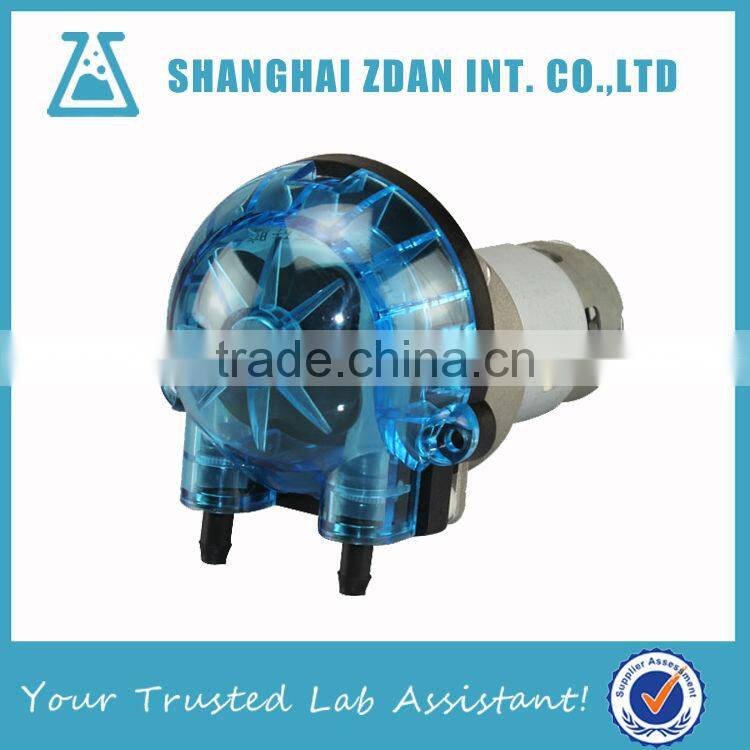

204K Easy Load Type Pump ≤650mL/min

204K is a high-performance OEM peristaltic pump,applicable to home appliances,food machinery,chemical machinery,pharmaceutical machinery,electronic equipment,analytical instruments and feeding equipment.To compare with normal type,it has high-precision,low noise,long life and high voltage advantages.Beautiful appearance,easy to load the pump head,can meet your requirements under a variety of harsh conditions.



Application
Transport Detergent:Washing Machines,DishwashersAnalytical Instruments:Analytical Instruments Injection
Printing Equipment:Delivery InkFood Machinery:Beverage Machine
Warewashing Equipment:Warewashing EquipmentLaundry Equipment:Laundry Equipment t



Features

Max Flow Rate up to 650ml/min
Max Inside Diameter(ID) up to 6.4mm
Pump Cover Easy to Load,easy to Replacement the Hose
Can equipped with fixed speed DC gear motor,DC planetary geared motor,AC synchronous motor and stepper motor(Speed adjustable).The stepper motor meet the demand for motor long life and low noise running.
Pump cover in two colors(Blue and white transparent , no request delivery in random)

Crust Material:PC,PA66
Roller:Nylon+MoS2

Selection

Gap using,no requirements for flow accuracy,strict cost control,please use the DC gear motors and synchronous motors.For requires precise control flow,high motor life requirements,suggested to use stepper motor.
Continuous long-term operation please use in low speed(160r).

Specification 204K Easy Load Type Pump

Item

204K/ZLX(DC motor)

204K/ZL(DC motor)

204K/BT(stepper motor)

204K/TB(AC motor)

Speed

150,300r

50r,120r,160r

0.1~300r

5,10,30,60,100r

Hose

Can fit for hube with 1.6mm or 2.4mm thickness,inner diameter 3.2mm,4.8mm and 6.4mm
25#,17#,15#,24#

Flow

≤650ml/min

75~415ml/min6~650ml/min5~260ml/min

Roller

2 Rollers with 2 guide wheels

Power

6-16W

6-16W

25-50W

14W
MotorDC planetary gear motorDC gear motor57 Stepper Motor(Must equipped with stepper drive before running,standard no drive)AC synchronous motor(Constant speed)
Drive

Can equipped with DC speed control plate to fine-tune speed

Drive motor in optional,include Type A(Inner-velometer) and Type B(External-velometer)No need to drive,power to run

Voltage

12V,24V

6~36V

220V50HZ(110V60HZ in optional)
Weight0.8kg0.8kg1.0kg0.8kg
Flow for 204K Easy Load Type Pump ml/min(Media:Water)
Motor TypeDC planetary motorDC motorStepper Motor

Synchronous Motor

Motor Speed150--300501201600-3005103060100
16#(3.2×1.6)109--2203897.51300-2203.757.5224575
25#(4.8×1.6)210--425681802450-4256.7513.540.581135
17#(6.4×1.6)325--6501102503350-650

10.5

2163126210

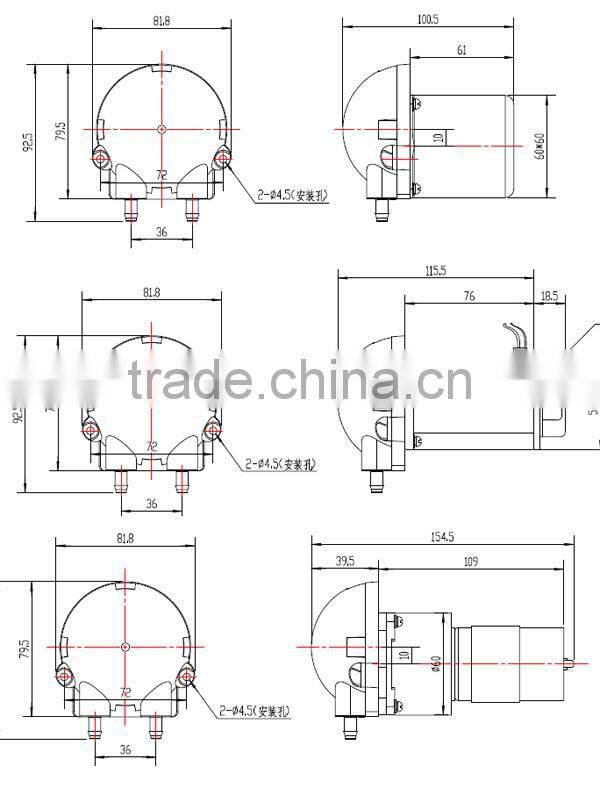

 Demension
automatic chemical dosing pump


automatic chemical dosing pump
