Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > Customized Hot Sale 6/4X-AH Sand Casting Pump Part
US$ 520 - 1100
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Delin
Place of Origin:
China
Model Number:
6/4X-AH
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
25 days
Related Products
-
Cast Iron Water Pump Casing for Slurry PumpsUS$ 420 - 430MOQ: 1 Set -
China Custom Forging Pump Impeller DesignUS$ 220 - 226MOQ: 1 Piece
-
Casting Mud Pump PartsUS$ 509 - 519MOQ: 1 Piece
-
Powder Metallurgy Pump Part Cover PlateUS$ 225 - 226MOQ: 1 Piece
-
Pump Impeller Impeller Pump Impeller DesignUS$ 1029 - 1030MOQ: 1 Piece
Brand Name
Delin
Place of Origin
China
Model Number
6/4X-AH
Application
Sewage
Fuel
Other, Electric/Diesel
Power
Other, Electric/Diesel
Usage
Water
Theory
Centrifugal Pump
Standard or Nonstandard
Nonstandard
Structure
Single-stage Pump
Pressure
Low Pressure
Overview
Quick Details
Pump Parts & Accessries:
Place of Origin:
Brand Name:
Model Number:
Standard or Nonstandard:
Material:
Product name:
Color:
Type:
Application:
Certification:
Size:
Theory:
Usage:
Feature:
Packaging Details:
Wooden Case (1m*1m*1m) + Anti-rust bag + Silica-gel drier
Delivery Detail:
25 days after the payment
Product Description
Customized hot sale 6/4X-AH sand casting pump part
I: Supply Scope:

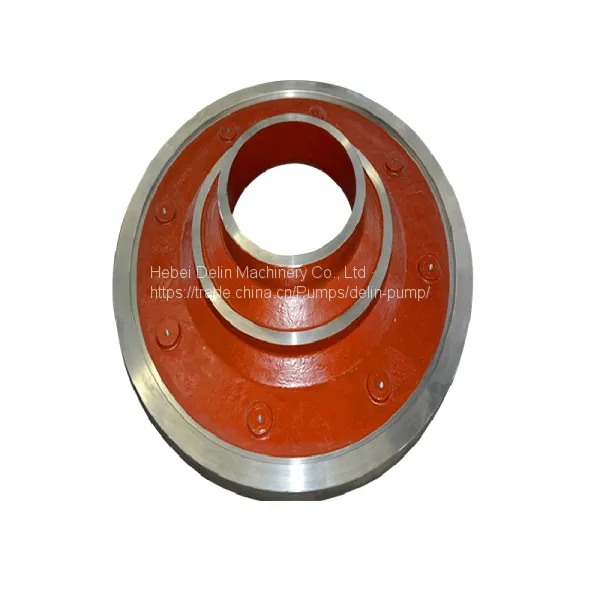

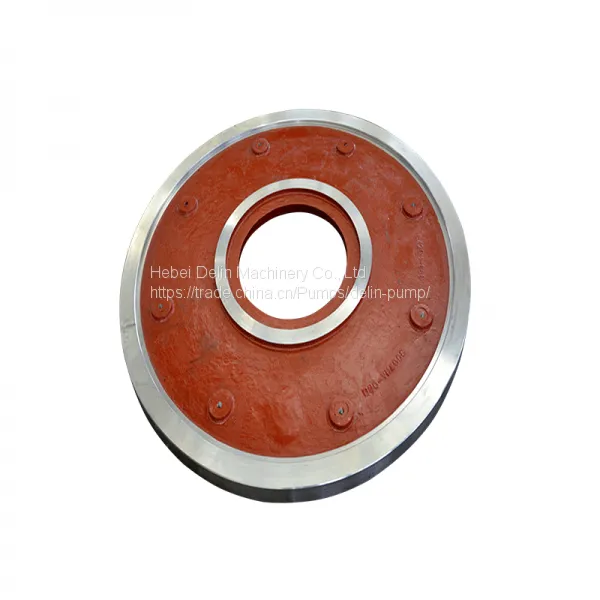

Casting, shaft, throatbush, front liner, back liner, wear plate, case, cover, stuffing box, lantern restrictor, cover plate bolt, volute, shaft sleeve, cover plate liner, frame plate liner, neck ring, expeller ring, expeller, bearing assembly, volute liner, volute packing, bowl, bearing cartridge, cover plate liner, impeller, closed impeller, open impeller
Casting, shaft, throatbush, front liner, back liner, wear plate, case, cover, stuffing box, lantern restrictor, cover plate bolt, volute, shaft sleeve, cover plate liner, frame plate liner, neck ring, expeller ring, expeller, bearing assembly, volute liner, volute packing, bowl, bearing cartridge, cover plate liner, impeller, closed impeller, open impeller
II: Features:
Bearing assembly – a large diameter shaft with short overhang minimizes deflection and contributes to long bearing life. Only four through bolts are required to hold the cartridge type housing in the frame.
Bearing assembly – a large diameter shaft with short overhang minimizes deflection and contributes to long bearing life. Only four through bolts are required to hold the cartridge type housing in the frame.
Liners – easily replaceable liners are bolted, not glued, to the casing for positive attachment and east of maintenance. Hard metal liners are completely interchangeable with pressure molded elastomeric. Elastomeric seal rings back all liner joints.
Casing – Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.

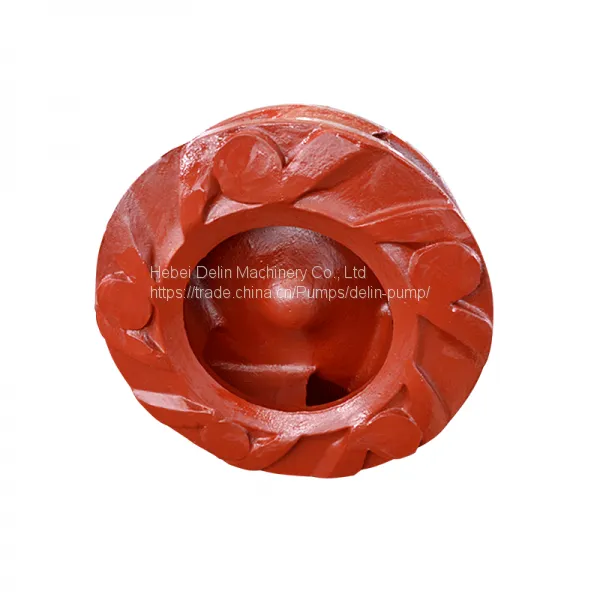

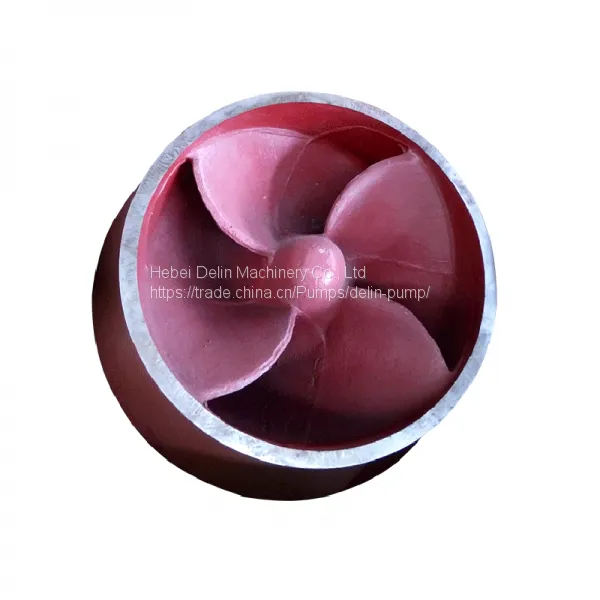

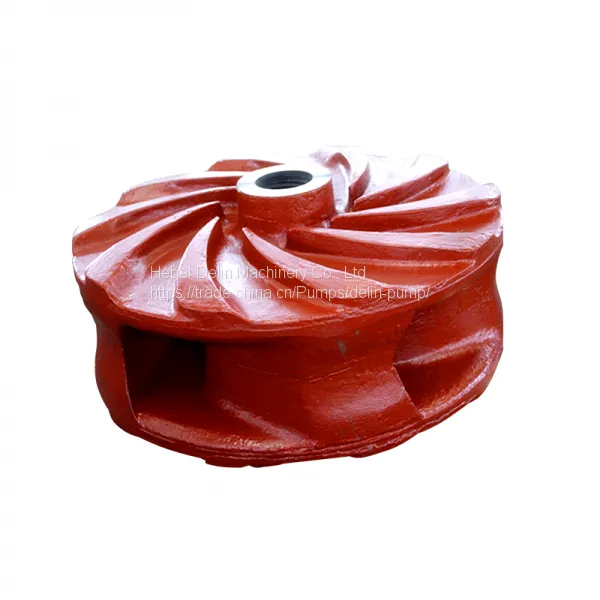

Impeller – front and rear shrouds have pump out vanes that reduce recirculation and seal contamination. Hard metal and molded elastomeric impellers are completely interchangeable. Cast in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.
Casing – Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.
Impeller – front and rear shrouds have pump out vanes that reduce recirculation and seal contamination. Hard metal and molded elastomeric impellers are completely interchangeable. Cast in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.
Throat bush – wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.
One-piece frame – a very robust one-piece frame cradles the cartridge type bearing and shaft assembly. An external impeller adjustment mechanism is provided below the bearing housing for easy adjustment of impeller clearance.
Packing & Delivery
Packing Details : Plywood case or customise
Delivery Details : 25 days after the payment
