Specifications

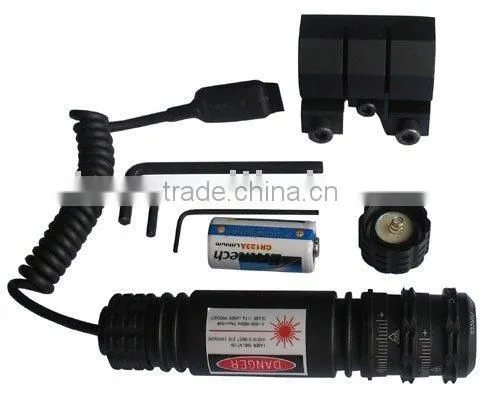

Full set medium size adjustable red gun laser sight or red laser scope and laser aimer, with 650nm wavelength.GENERAL DESCRIPTION
Model: ES-GJ-KD-9
Name: Adjustable Red Laser Sight Laser, Red Laser Aimer, Red Laser Scope and Red Laser Pointer
Wavelength: 635nm
Power Output: <5mW
Dot Size:0.7"Ø at 20 yards
Visible Range:50 yards in daylight and over 200 yards at night under
optimum conditions
Working Temperature: -10 ~ +40
Storge Temperature:-20 ~ +60
Size (laser only): 1" Ø x 4.35"L
Weight with Battery: 4.3 oz
Battery: One CR123 Lithium Battery
Battery Life:50 hours
Warranty: 2 Years Limited
Construction:Aircraft aluminum 6061-T6
Finish:Anodic oxidation/ black
Operation: Curly On/Off cord switch or straight on/off button
Rail Mount:Mounts to standard 7/8" Weaver base
ATTACHING THE CORRECT MOUNT TO THE DEVICE
Simply slide the appropriate rail onto your gun and tighten it into place utilizing the two rail attaching screws and the larger of the two supplied socket head wrenches. Note the weaver style rail utilizes a lock screw to prevent its slippage under recoil. This lock screw should be fit into the groove found on most weaver style mounts.
ACTIVATING THE LASER
A. Installing the battery
Your new laser is powered by one long-life lithium battery. To install the battery, Screw the back cover off the body off the laser sight, Next , insert the battery into the battery holder with the "+" side up, then screw the back cover.
B. Main on/off switch
With this switch, you may turn the laser on when tightened the back cover, and allows you to turn the unit on or off with pressure when not tightened the back cover.
C. Momentary pressure switch
This switch allows you to turn the unit on or off with pressure and the curly wire may be stretch. The pressure pad may be attached to a convenient location on your gun.
REPLACING THE BATTERY
The battery included with your laser target designator will provide long service. However, should the dot grow dim, the battery may need to be replaced. To do so, remove the battery and replace with the new battery.
....
