G-SIGHT is Elite's USA branch company.
The bore sight and laser sight series products are mainly branded with G-SIGHT logo.
1.Elite RS-0100 4mw Non-waterproof Red Laser Sight Description:
The RS-0100 is a red laser sight for Rifle and Pistol. The maximum laser output power is 4mW at 635nm.
Complete kits include:Laser sight with battery, rail mount, pressure pad switch or ON/OFF slide switch, adjusting screw, wrench.
2.Elite RS-0100 4mw Non-waterproof Red Laser Sight Applications:
a.Laser alignment
b.Laser sight
c.Laser positioning
d.Surveying instrument
e.Medical instrument
f.Military equipment
3.Elite RS-0100 4mw Non-waterproof Red Laser Sight Features:
a.Four point alignment system ensure the most accurate
b.Extra lightweight, aircraft aluminum construction
c.Passed vibration and shock test
d.Low consumption:<150mA
e.High brightness
f.High stability
g.Small divergence:<0.8mrad
h.Long life time:>5,000hrs
i.Wide temperature operating: -10-50°C
4.Elite RS-0100 4mw Non-waterproof Red Laser Sight Specifications:
Parameter |
Specifications |
Dimension |
Dia.17*76mm |
Housing Material |
Black anodized aluminum |
Wavelength |
635nm or 650nm |
Output Power |
>4mw |
Operating Voltage |
3 VDC (1pc CR1/2AA Battery) |
Divergence |
0.2mrad |
CDRH Class |
Class IIIa |
Switch |
Pressure pad switch or ON/OFF slide switch (optional) |
MTTF |
>5,000hrs |
5.Other Green, Red, Infrared Laser Sight Product Lists:
a.Red Laser Sight Series:
| Model | Wavelength | Output Power | Dimension | Dot Size | Battery |
| RS-0100 | 635nm or 650nm | >4.5mw | Dia.17x76mm | Dia.20mm (at 50m) | CR1/2AA |
| RS-0200A | 635nm or 650nm | >4.5mw | Dia.19x93mm | Dia.20mm (at 50m) | CR123A |
| RS-0200B | 635nm or 650nm | >4.5mw | Dia.19x72mm | Dia.20mm (at 50m) | CR123A |
| RS-0300 | 635nm or 650nm | >4.5mw | Dia.22x123mm | Dia.20mm (at 50m) | CR123A |
| RS-0400 | 635nm or 650nm | >4.5mw | Dia.15x51mm | Dia.10mm (at 20m) | 3LR44 |
| RS-0500 | 635nm or 650nm | >4.5mw | Dia.16x48mm | Dia.10mm (at 20m) | 4LR44 |
| RS-0600A | 635nm or 650nm | >4.5mw | Dia.15x65mm | Dia.10mm (at 20m) | 4LR44 |
| RS-0600B | 635nm or 650nm | >4.5mw | Dia.15x65mm | Dia.10mm (at 20m) | 4LR44 |
b.Green Laser Sight Series:
| Model | Wavelength | Output Power | Dimension | Dot Size | Battery |
| GS-0100 | 532nm | >4mw | Dia. 17x82mm | Dia.15mm (at 30m) | CR123A |
| GS-0200A | 532nm | >4mw | Dia. 19x93mm | Dia.15mm (at 30m) | CR123A |
| GS-0200B | 532nm | >4mw | Dia. 19x86mm | Dia.15mm (at 30m) | CR123A |
| GS-0300 | 532nm | >4mw | Dia. 22x123mm | Dia.15mm (at 30m) | CR123A |
| GS-0400 | 532nm | >4mw | Dia. 25x123mm | Dia.15mm (at 30m) | CR123A |
| GS-0500 | 532nm | >4mw | Dia. 16x54mm | Dia.15mm (at 20m) | CR1/2AA |
c.Infrared Laser Sight Series:
| Model | Wavelength | Output Power | Dimension | Dot Size | Battery |
| IRS-0100 | 780nm or 830nm | >4.5mw | Dia.17x76mm | Dia.20mm (at 50m) | CR1/2AA |
| IRS-0200A | 780nm or 830nm | >4.5mw | Dia.19x93mm | Dia.20mm (at 50m) | CR123A |
| IRS-0200B | 780nm or 830nm | >4.5mw | Dia.19x72mm | Dia.20mm (at 50m) | CR123A |
| IRS-0300 | 780nm or 830nm | >4.5mw | Dia.22x123mm | Dia.20mm (at 50m) | CR123A |
| IRS-0400 | 780nm or 830nm | >4.5mw | Dia.15x51mm | Dia.10mm (at 20m) | 3LR44 |
| IRS-0500 | 780nm or 830nm | >4.5mw | Dia.16x48mm | Dia.10mm (at 20m) | 4LR44 |
| IRS-0600A | 780nm or 830nm | >4.5mw | Dia.15x65mm | Dia.10mm (at 20m) | 4LR44 |
| IRS-0600B | 780nm or 830nm | >4.5mw | Dia.15x65mm | Dia.10mm (at 20m) | 4LR44 |
6.CAUTION:
The laser light is harmful to human body especially to eye no matter what directly or indirectly. The laser beam shall be observed or adjusted through infrared camera or equivalent.
7.Elite Laser Sight Complete Kit Package Photo:
8.Elite Laser Sight Mounts Photo:
9.Elite Rail Mount Kits Package Photo:
10.Elite Laser Sight Mounting Assembly Photo:
11. Packaging & Delivery & Payment Information:
MOQ: 100pcs.
Supply Ability: 100,000pcs per month.
Packaging Details: One unit packed with condensed foam, bulk into export cartons.
Delivery Time: 10-20 days after payment received.
Shipment Term: FOB Xi’an, China.
Payment Terms: T/T, Western Union, Paypal
Shipping Method: DHL/EMS/TNT Air-Express or sea transportation.
12.Warranty:
We offer 12 months limited warranty for our products. Damage due to misuse, Ill treatment and unauthorized modifications and repairs are not covered by our warranty.
13.Elite QC Flow:
a.Professional Power Meter for double check
b.Qualified professional staff for the beam size/line thickness testing
c.Strictly surface Inspection before load to the warehouse
14.Elite Company Profile:
Established in 2003, Elite Optoelectronics Co., LTD. covering an area of 2,200 sq.m with 120 staffs, is a professional designer and manufacturer of laser diode modules, fiber coupled laser modules, DPSS laser modules, bore sights, laser sights and related laser instruments like laser pointers etc.
Elite’s products have been widely used in industrial positioning, bar code scan, medical instruments, detecting instruments, surveying instruments, laser instruments, gun laser sights, wild explore instruments, military sight collimating, laser performance systems, laser tools etc.
With certificates of ISO 9001:2000, FDA, IEC, GB and strong OEM & ODM ability, we assure our customers with quality, reliable and consistent products delivery.

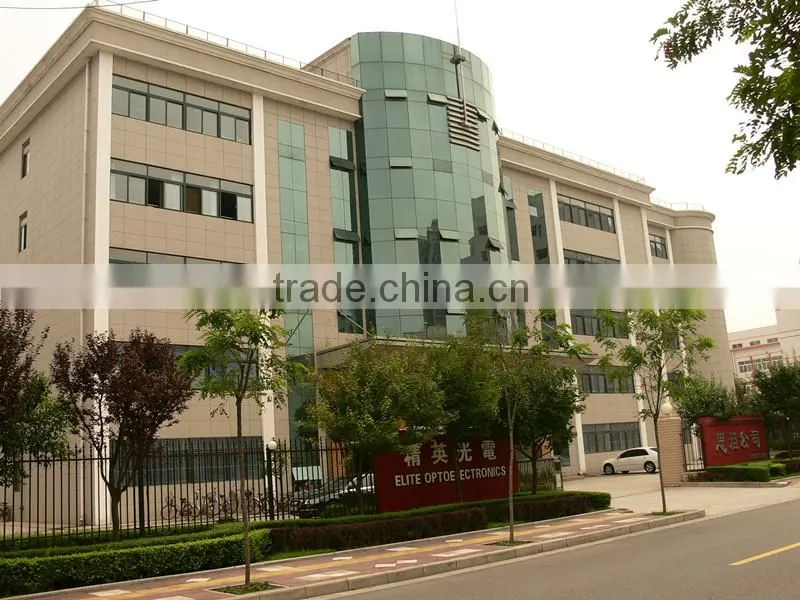

15. Elite Factory Photos:
16. Elite Production Process Photos:
17. Products We Offered:
Industrial Laser Diode Module
Mini Laser Diode Module (520nm, 635nm, 650nm and 850nm)
520nm Dot Laser Diode Module
520nm Line Laser Diode Module
635nm Dot Laser Diode Module
650nm Dot Laser Diode Module
635nm and 650nm Line Laser Diode Module
405nm Laser Diode Module
445nm Laser Diode Module
Fiber Coupled Laser Module
RGB Fiber Coupled Laser Module
RGB Laser Diode Module
Green 520mm Direct Laser Diode Module
DPSS Green Laser Module (1-200mw)
Infrared Laser Diode Module (480nm, 808nm, 830nm, 850nm and 980nm)
Well-Distributed Line Laser Module
High Stability Laser Module
Micro Beam (Dot and Line) Laser Diode Module
High Power Laser Module
Laser Line Projector
Laser Diode Collimator
Laser Range Finder or Laser Distance Meter
Laser Pointer
Laser Bore Sight or Gun Sight
Laser Sight
Laser Bullet
Rail
Red Dot Sight
Tactical Flashlight
Laser Flashlight (Blue, Red, Green)
Red or Green LED Flashlight
18. Meet us on Exhibitions:
a.Shot Show Exhibition held in USA in January.
b.Laser World of PHOTONICS held in Germany in June.
c.Laser World of PHOTONICS held in China in March.
d.Other exhibitions.
Want best quality laser/bore sigh products? Contact me please. Elite is your best choice with strong OEM & ODM ability.
Contact Information:
Mrs. Della Wang
Elite Optoelectronics Co., Ltd.
Tel: +86-29-68590602 Ext. 811
Fax:+86-29-68590728
Whatsapp:+86-18591780566
Skype: Cinderella19831129
Mail:della(at)s-laser(dot)com
Web:
