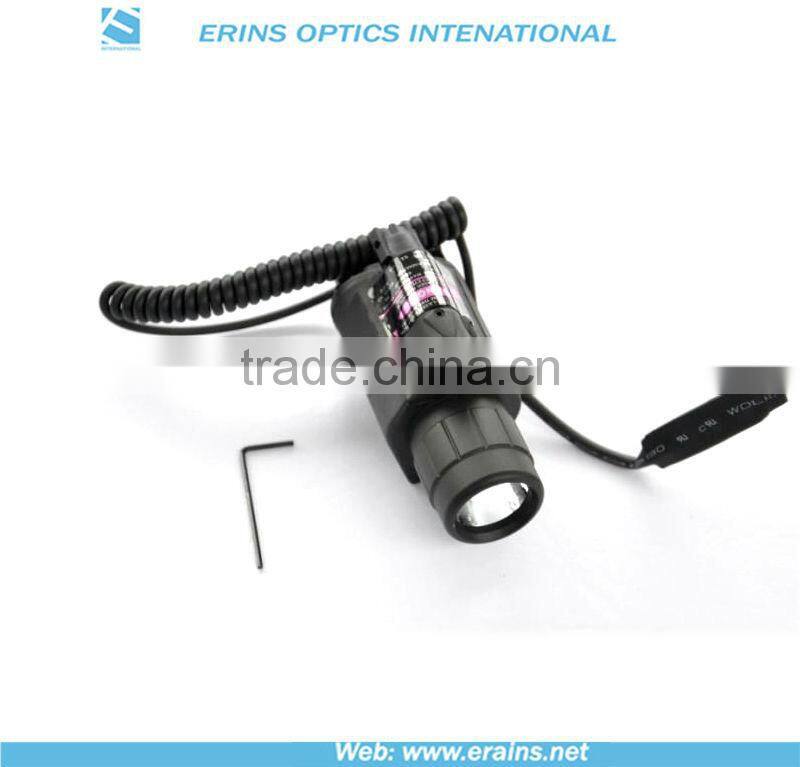

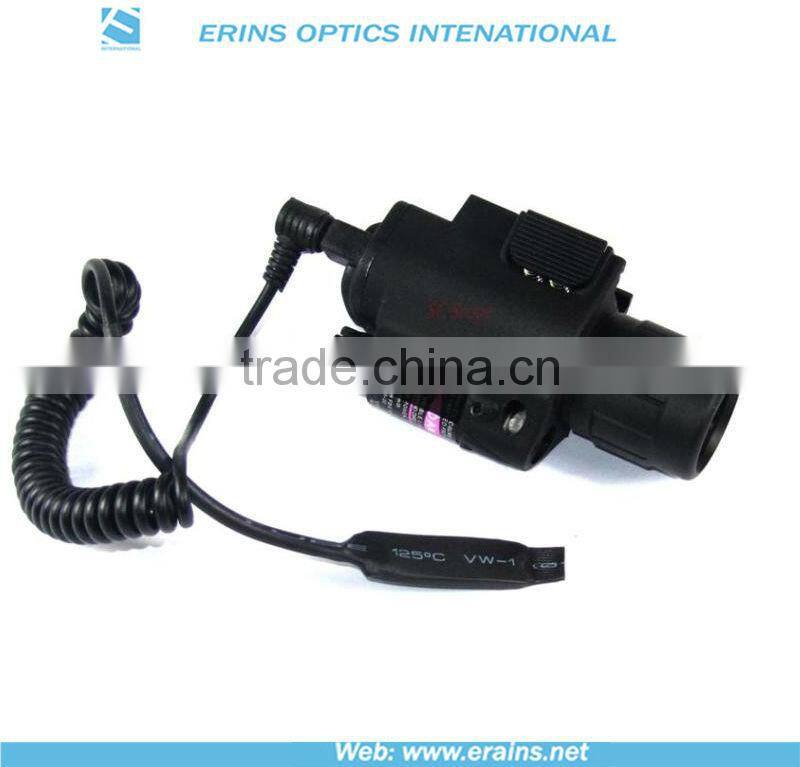

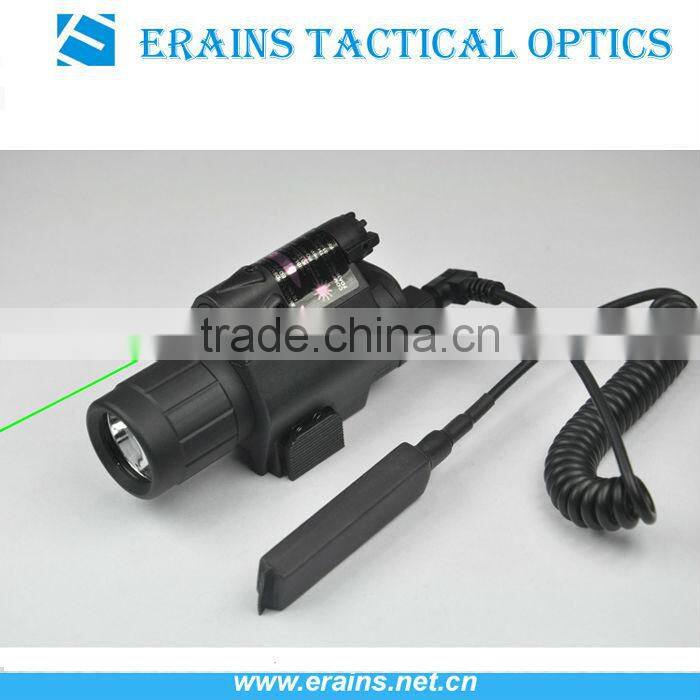

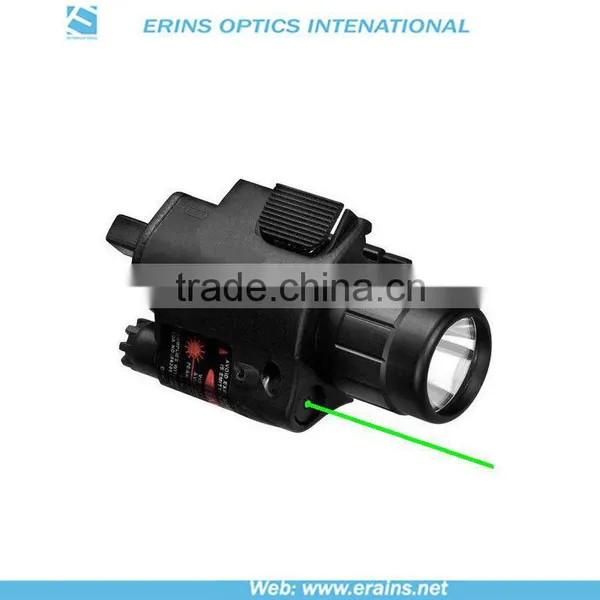

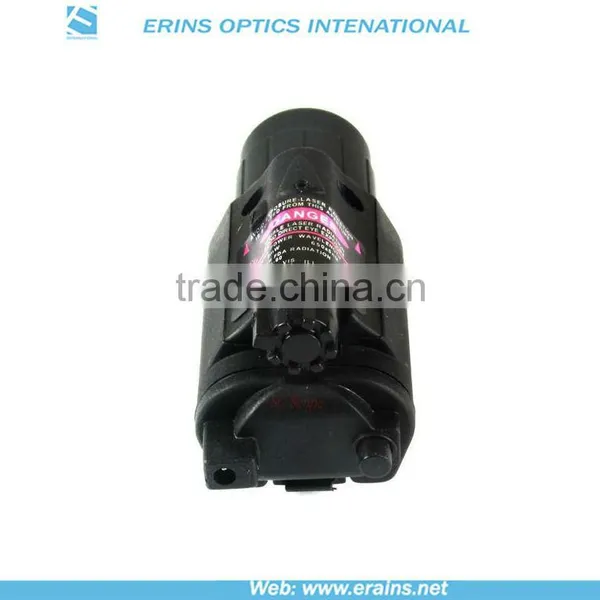

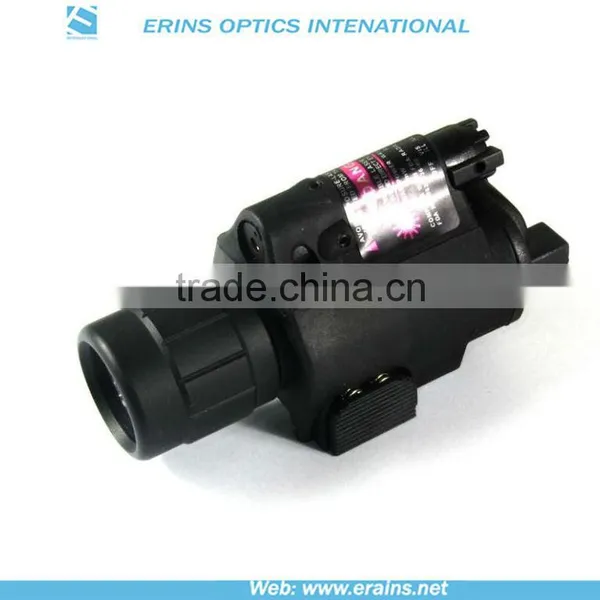

Lightweighted Plastic Housing Green Laser Sight and 200 Lumens CREE Q5 LED Flashlight Combo

Specifications

Model: ES-JGSD-G

Name: Pistol-mount intergrated Tactical LED light with Green laser sight combo

Product Origin: China

Supply Ability: 2000 pcs/month

Minimum Order: 100 pcs

Delivery Lead Time for MOQ: 10 days

TECHNICAL DESCRIPTION

Wavelength: 532nm

LED light Power Output: 3 W

Laser output (mw): 5

Battery: Two 1300mAh CR123 Lithium Batteries

Battery Life: 3 hours of runtime

LED detailed information

LED model: CREE Q5 LED

Power: 3W

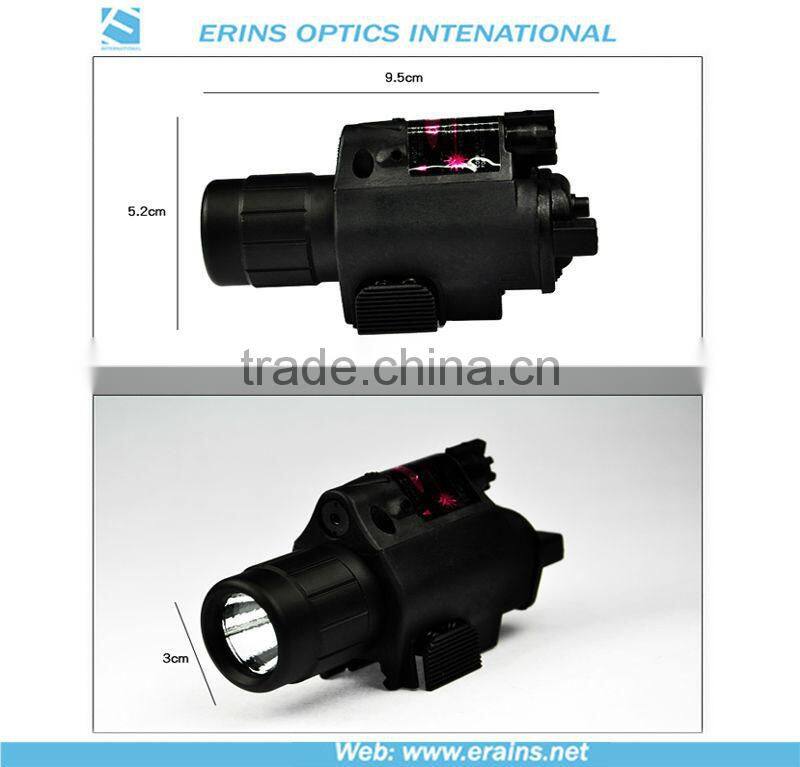

Diameter: Ø 30 mm

Length: 85 mm

LED brightness: Up to 200 lumens blinding beam, Bright sidelight

Light color: Cold white

Max electric current: 750mA

Working Temperature:-20 ~ +55

Light attenuation: Less than 3% after 100k hours

Life time: ≤ 50000 hours

Laser detailed information

Model: LD-532-5X

Diameter: Ø 5.6 mm

Length: 5 mm

Working Temperature: -0C ~ +45C

Max electric current: 50mA

Life time: ≤ 5000 hours

Working volt: 3V

Weight with Battery: 210g

Warranty: Extended Warranty

Construction: Black color polymer body with aluminium alloy head

Finish: Anodic oxidation/ V' r3 black

Operation: Ambidextrous Momentary/Steady on-off Switch

Rail Mount: Integrated mount

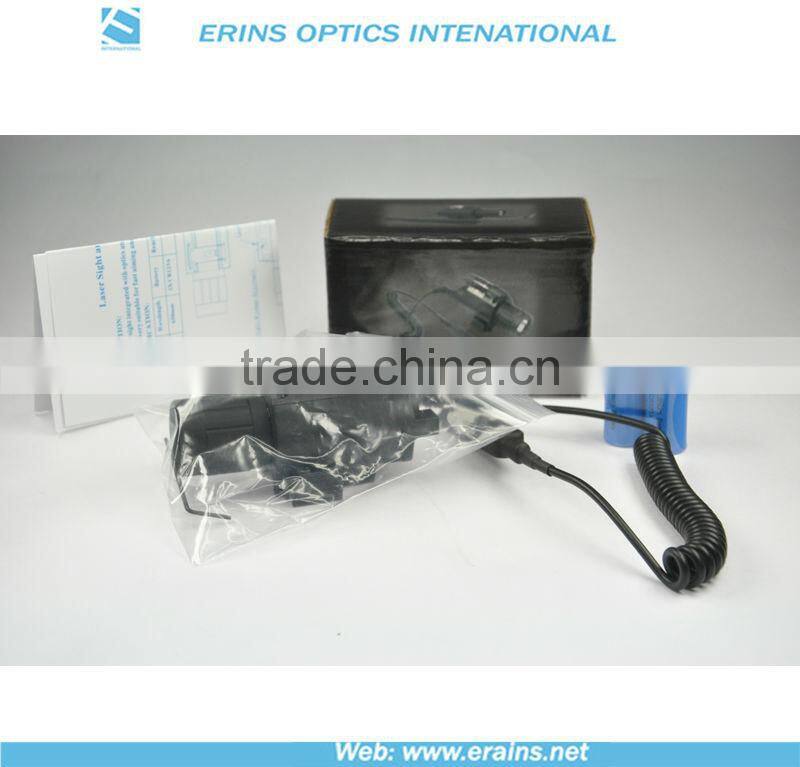

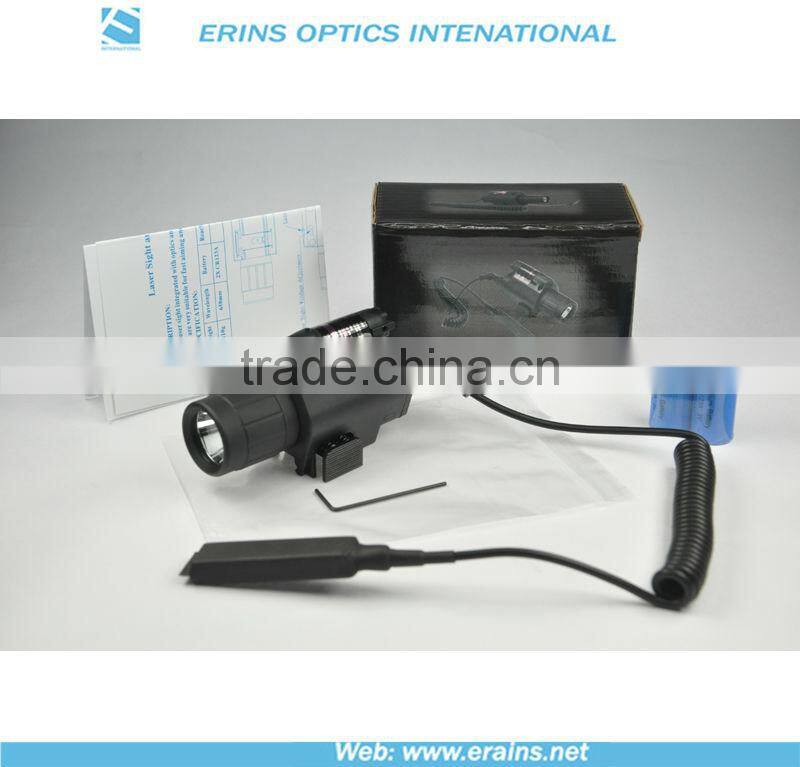

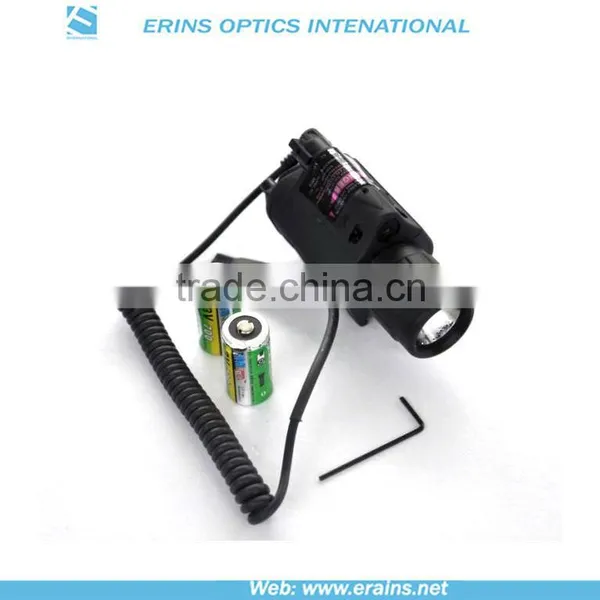

KIT INCLUDES

Green Laser sight and LED Flashlight integrated group

1x Allen Wrench

2x 1300mAh CR-123A lithium batteries

User manual

PACKING

Packing: 1 unit/gift box, 50 units/master carton

Unit package: Gift paper box

Master Carton: Top cardboard carton

WORKING MODES

1. Single Green laser on

2. Single LED light on

3. Both green laser and LED light on.

4. Both laser and light off

FEATURES

Quick target acquisition

Lightweight

Compact

Safe and adjustable

Dust and Shockproof

Ambidextrous Momentary/Steady on-off Switch

Dual Switches: Button switch turns on continuous beam of the flashlight or/and laser sight.

Black color polymer body with aluminium alloy head  which is good fur heat dissipation

Quick release mount

Fits existing light bearing holsters

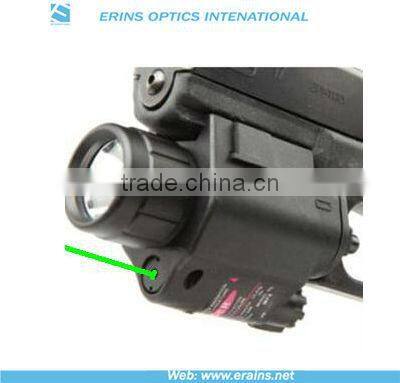

Adjustable mount flexibility that can accommodate the Glock or Picatinny (1913) accessory rails.

LASER SIGHT ZEROING

For a laser mounted below or to the side of the bore, there is only one distance where the bullet path will coincide with the laser sight line, this point is the zero range.

Laser adjustment and the muzzle velocity of the bullet determine where this point occurs. The user must decide how high above or below the sight line the bullet can be allowed to strike and adjust the sight accordingly. At distances less than the zero range the bullet will be above the sight line. Beyond the zero range the bullet will be the sight line.

If mounted to the side, the bullet will also deviate to the side of the laser line, as well as up and down. In practice, a XL-2LL on a handgun can be adjusted to keep the bullet strike within about 2 high and 2 low out to about 100 feet.

OPERATION:

1. Put the batteries into the tube

2. Fix the flashlight to the weapon

3. Make the elevation and windage adjustment by twisting 2 small screws in the head part with Allen wrench.

4. To operate the laser, press the switch.

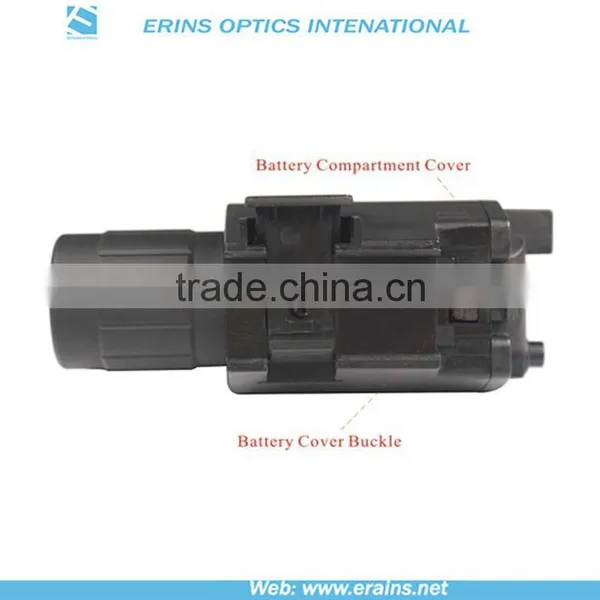

BATTERY ASSEMBLY

The ES-JGSD laser sight and LED light combo uses 2pcs CR-123 (6V) batteries. The CR-123s negative and positive pole has been indicated on the mount.

DANGER: DO NOT use anything other than a CR-123 battery or rechargeable batteries with this product.

To access the battery compartment you must first remove the flashlight from the firearm. Follow the XL removal procedure instructions to remove the flashlight from the firearm.

1.       Unclip the door latch, the latch is tight, it may help to use a coin.

2.       Slip the batteries from the flashlight.

3.       Insert the new batteries observing polarity. Note: The flashlight is polarity protected and will not light if the batteries are inserted incorrectly.

4.       Hold the battery switch/door at an angle and place the small tab on the bottom of the battery/door switch into the slot in the flashlight body.

5.       Firmly push and hold the door closed against the flashlight body.

6.       Swing the door latch over the door and snap it into place.

SAFETY CAUTIONS

1. Never look directly into the laser beam.

2. Never point a laser beam at a person.

3. Do not allow children to use flashlight unless under the supervision of an adult.
