PLC Automatic Control Complete SMC Sheet Production Line

PLC Automatic Control Complete SMC Sheet Production Line

1,Product Introduction:

There are four parts: SMC Paste Mixing System, Main Compacting System, Final SMC Sheet reel-up part, Fiber glass Yarn cutting part and electrical control part.

1. Main part

Adopts frequency conversion motor.The movement of compactor is pneumatic, being controlled by air compressor.   Materials are compacted by belt chains which are controlled by pneumatic form. The belt chains are made of stainless steel. There are 8 air cylinders settled this part for cushioning.

2.Taken-up part

Uses torque motor. Roll the final smc sheet automatic. The taken-up speed can be adjusted and it reels automatic. It is power-saving and labor-saving. There are 2 air cylinders settled this part for cushioning.

3. Cutting part

frequency conversion motor. The cutting speed can be adjusted according to user's requirement.If require the smc sheet be high % fiberglass yarn,then let the cutting speed be big. The cutting roll is helical. This can increase the working life of the rubber roller and blade.2 air cylinders are settled this part for cushioning.

4. Electrical control part

Electrical control part is adopted central control (PLC) to meet the production requirements and all electrical components are from well-known brands to ensure its accurate and reliable.

To assist production,there are other machines needed,such as mixing tank, dispersing mixer,tanks,and fiber glass yarn pipe.

2,Product Features:

1, model:single cutter,firber content18-30%

           double cutter, firber content 30-60%

2,electric control :PLC digital control system

3,material:chain belt made of stainless steel,PLC and electric component as requirment can be simens or other famous brand.

4,width:0.5m,1m,1.2m

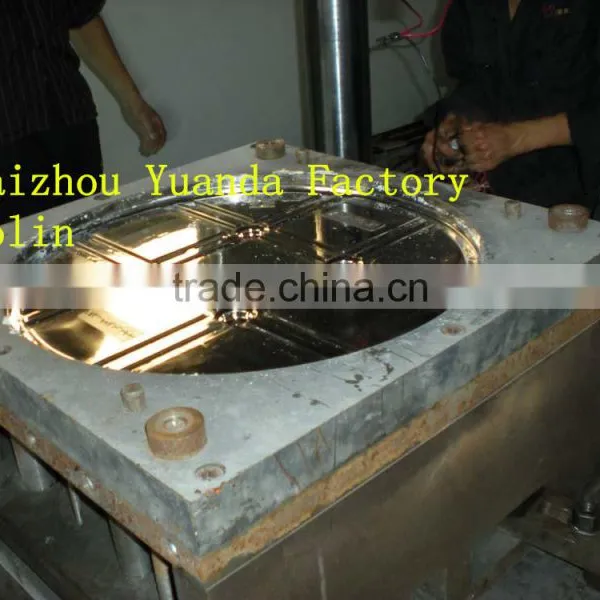

5,specialized for:composite manhole cover,composite bench,light pole,water tank,electric box.

6,export:we are the professional manufacturer for SMC machine,we own mature technical and rich experence, have export this machine to Iran,Taiwan,India,Indonesia,etc.

7,after sale service:we will send th relevant senior engineer to instal the complete production line to your plant,teaching the relevant technical and guide produce.

 8,paramaters:

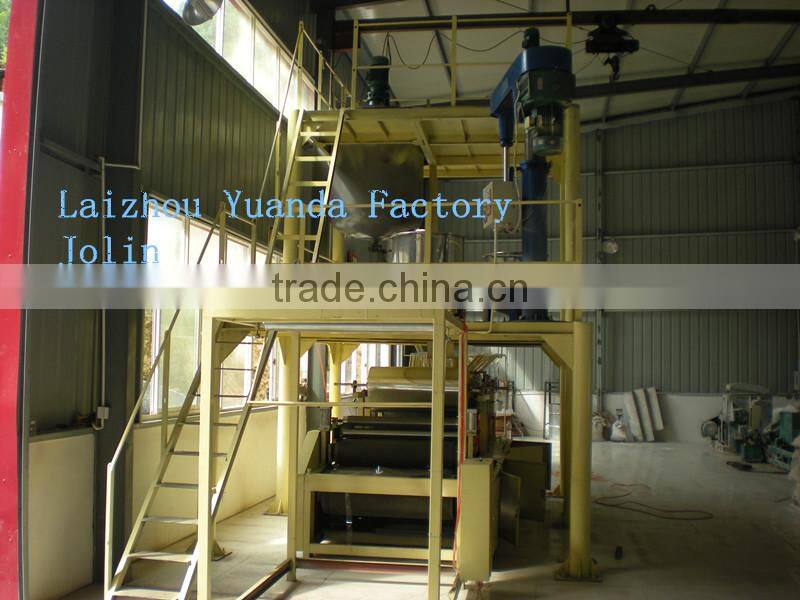

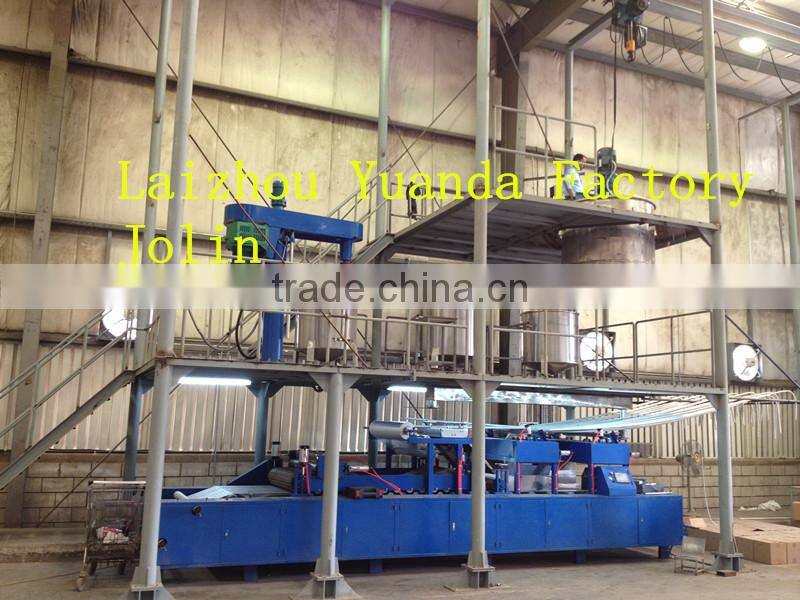

3,Product Pictures:

4,Company Information:

Laizhou Yuanda Chemical Industry Machinery Co., Ltd is located in the beautiful and fertile Bohai Bay which is the hub of Yantai, Qingdao and Weifang.By virtue of convenient and good location, it is a perfect place for trade business.

The company integrates scientific research, development, production,sales and after-sales service. It owns a group of specialists having rich experience in machinery designing, developing and management.Based on reasonable structure,good durability and easy operation,etc.

Our factory can manufacture a lot of chemical ang industry machines,like: reactor, disperser, mixer, sand mill, colloid mill, SMC sheet machine, resin production line, paint production line, hot melt glue production line, floral foam production line, etc.

5,Our service:

1,Reply your enquiry in 24 working hours.

2,Experienced staffs answer all your questios in professional and fluent English.

3,Customized design is available.

4,Exclusive and unique solution can be provided to our customer by your our well-trained and professional engineers staffs.

6,FAQ:

About Delivery time

Q-----What's the delivery term for making business with us?

A-----Usually we send tne shipments in FOB term.However, the terms of CIF are acceptable which depend on the preference of clients.

About Lead Time

Q------What's the lead time after placing thr order?

A------Usually it takes about 25~30 days after we received your confirmation.

     However, it would depend on our production line schedule(the timing clients place order)and the complication of the item.

About Payment Term

Q------What's the Payment Term?

A------By T/T in Advance, or Irrevocable L/C as Sight.

Our machines can be customized, leave an inquiry to know more details about price, packing, shiping and price.
