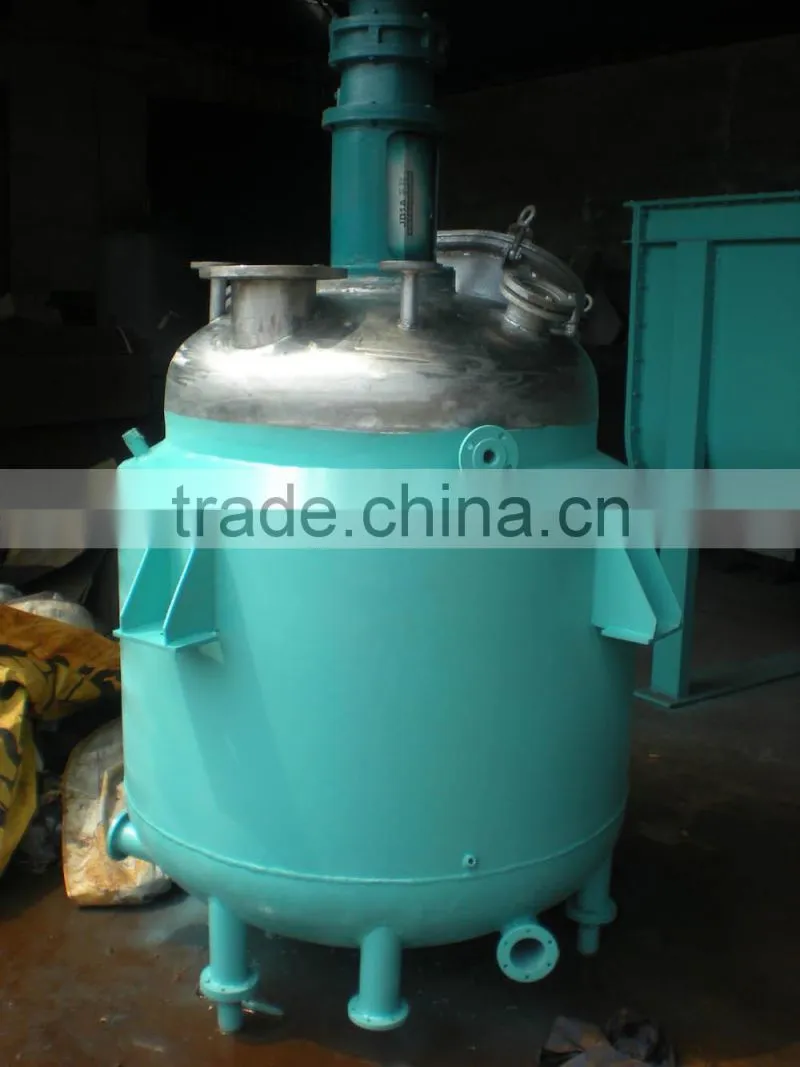

Stainless Steel Chemical Reactor With Heating Jacket And Cooling Inner Coils

Stainless Steel Chemical Reactor With Heating Jacket And Cooling Inner Coils

1. jacket or outer circular pipe jacket

2. used in pharmacy, chemical project, fine chemicals and composed chemical industry.

3. The material adopts SUS304 or SUS316L. The pot body includes jacket, and the jacket structure is of standard jacket, outer circular pipe jacket.

4.It can be heated or cooled; the inner surface is mirror-polished, no sanitary dead angle, and closed design to ensure material in asepsis condition.

5. The agitator adopts sanitary mechanical seal, container insulation adopts polyurethane or alumina silicate, joint adopts ISO standard quick open clamp, sanitary and easy.

6. The machine equips with sight glass, and flange quick open manhole, charging holes, nozzles ect.

heating method:for small capcacity machine,usually electric is suitable,if more the fuel gas,oil,or coal is cheaper than electric,the suitable bolier we also can provide.

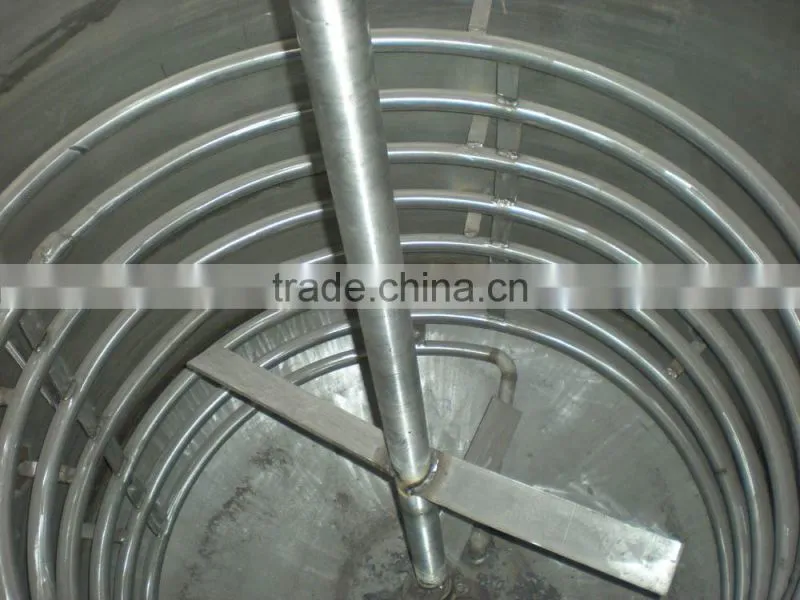

model:jacket and external pipe,Internal limpet coil or external.

material:inner plate SS304/316,pipe  SS304/316 ,outer jacket carbon steel

agitator model:paddle agitator,anchor agitator,frame agitator.

Power,Voltge,Frequency:Customized

Export :we have export this machine to Saudi Arabia,Russia, Romania,Pakistan, Mexico Indonesia,India,etc

we have do this machine manufature more than 15 years,have rich experience and mature technical design and export this machine

Service:we can send engineer to help instal complete production line and guide produce

Capacity:50L-50000L, Lab model;50L,100L always used for laboratory test,bigger model like 500L,1000L,2000L,etc for industrial big scale manufacture.

 Application:

1). Resin:

 Alkyd resin, epoxy resin, phenolic resin, acrylic resin, ABS resin...

2). Glue/ Adhesive:

Hot melt glue/ adhesive, grafted/ neprene glue, white glue, silicone glue, all-purpose glue, PVC glue, PVA..

3). Others:

Paint, pigment, PVC, PVA, PVAC, PU, acrylic acid, and other latex, emulsion and liquid glue and adhesives.

chemical reacto

Below is main CONFIGURATION for ur ref:

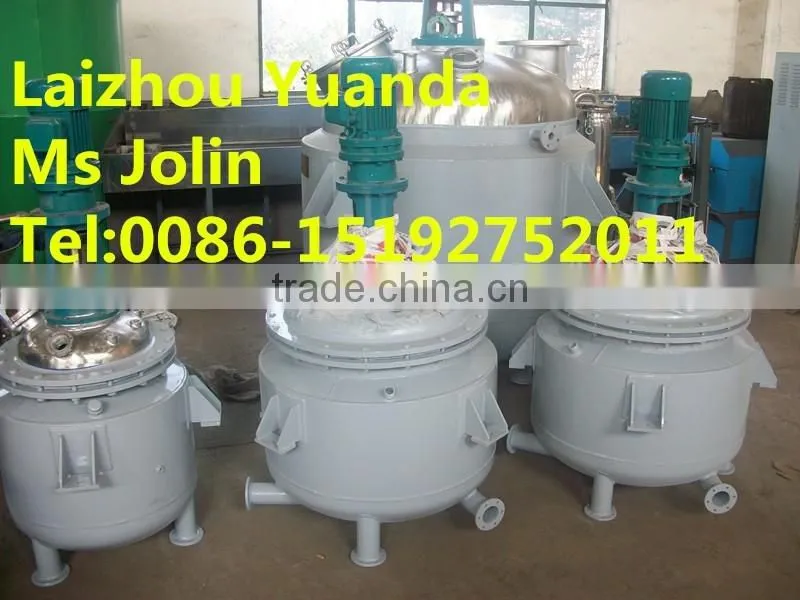

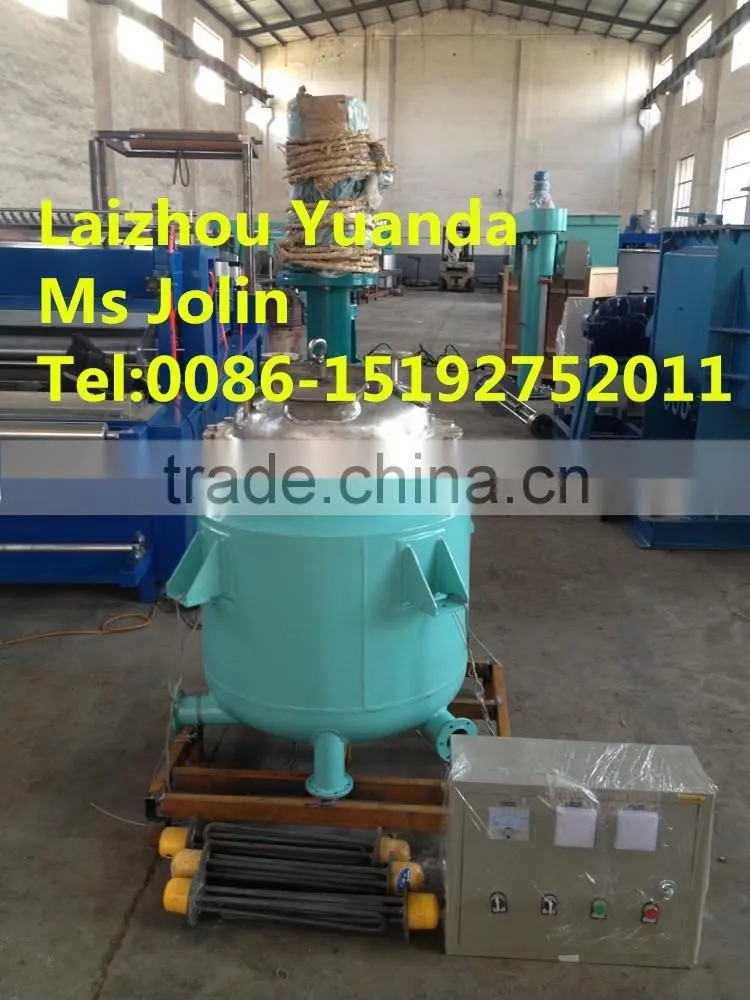

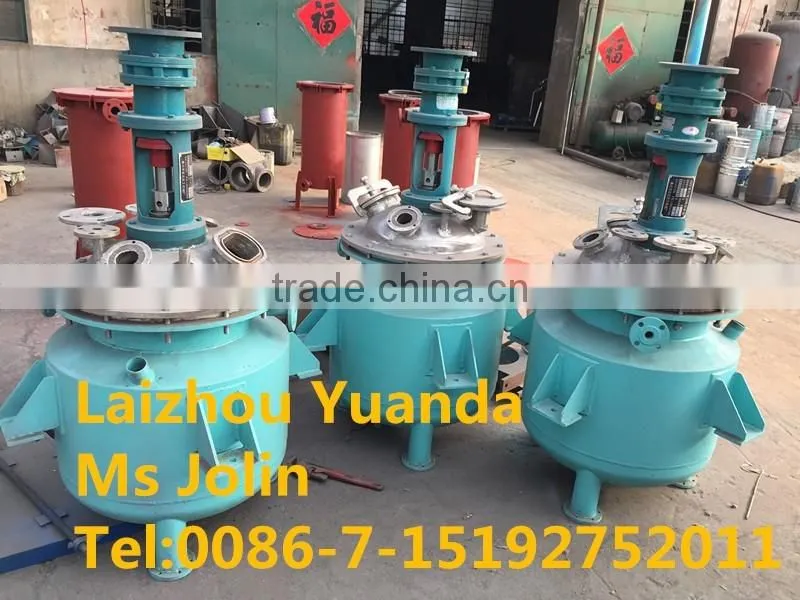

Lab Scale Reactor:

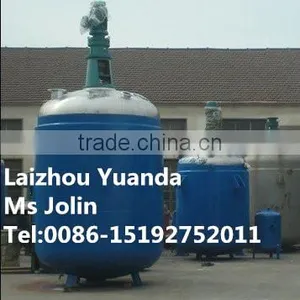

 double jacketed reactor :

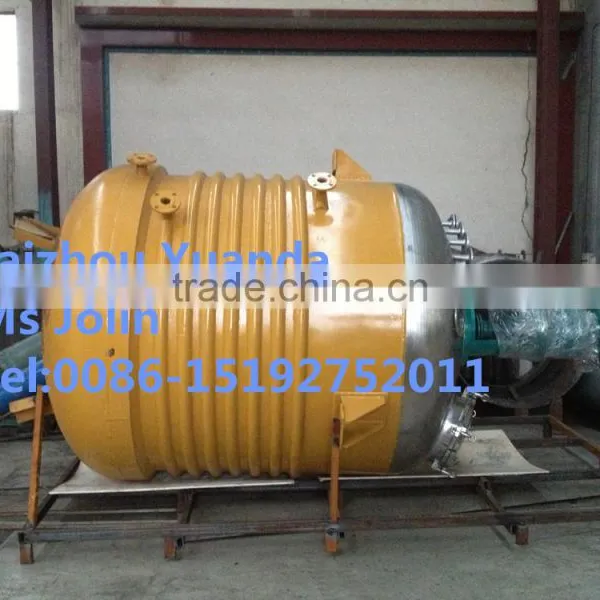

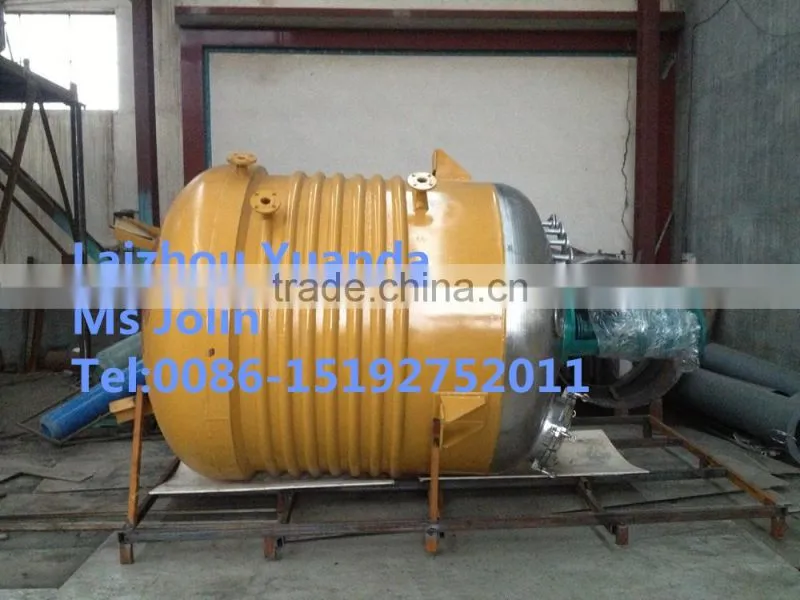

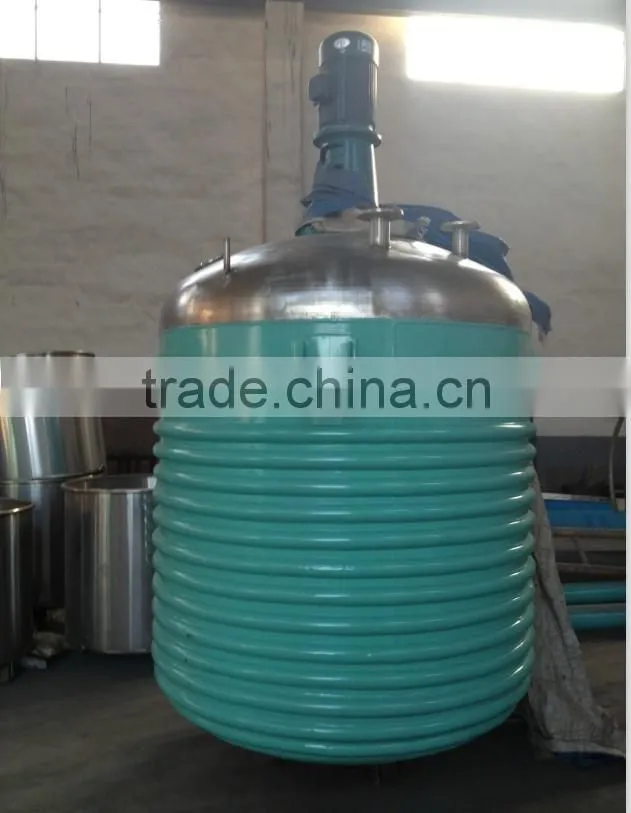

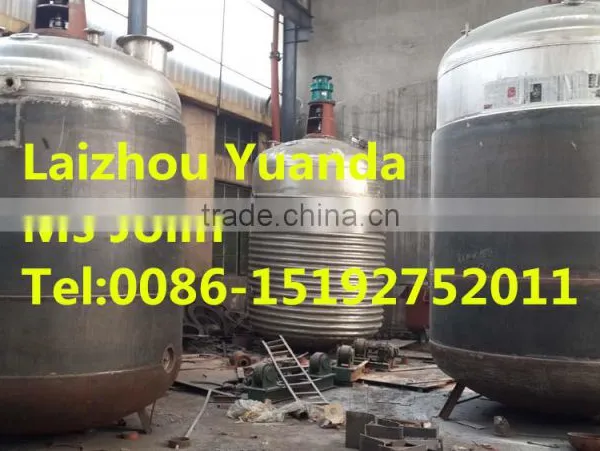

Out Coil Reactor:

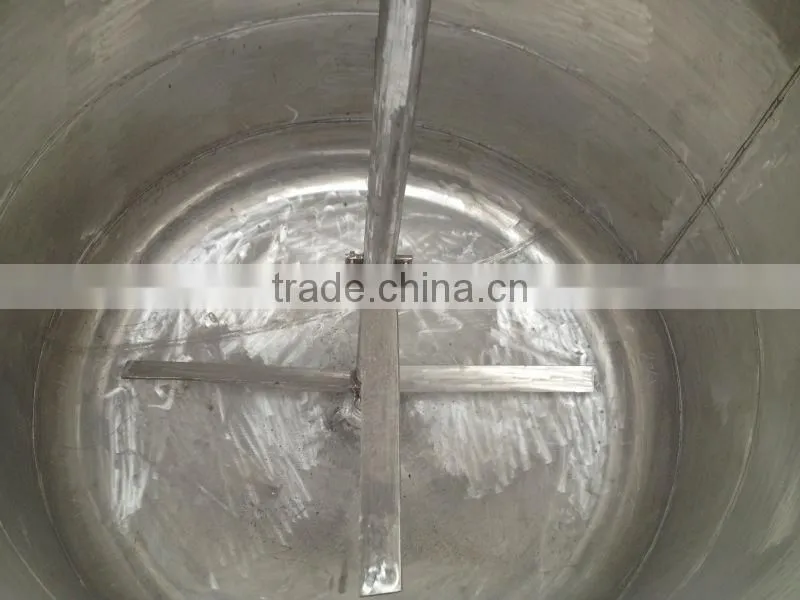

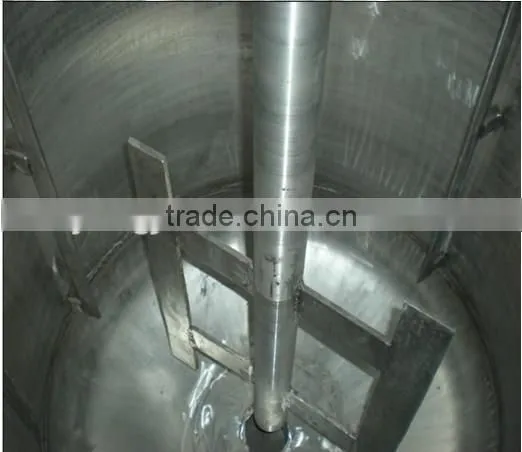

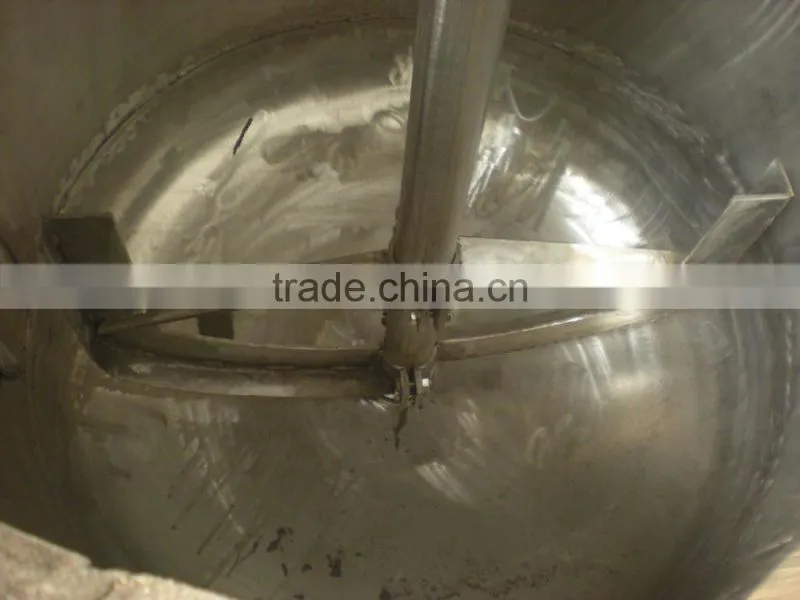

Stirring Type:

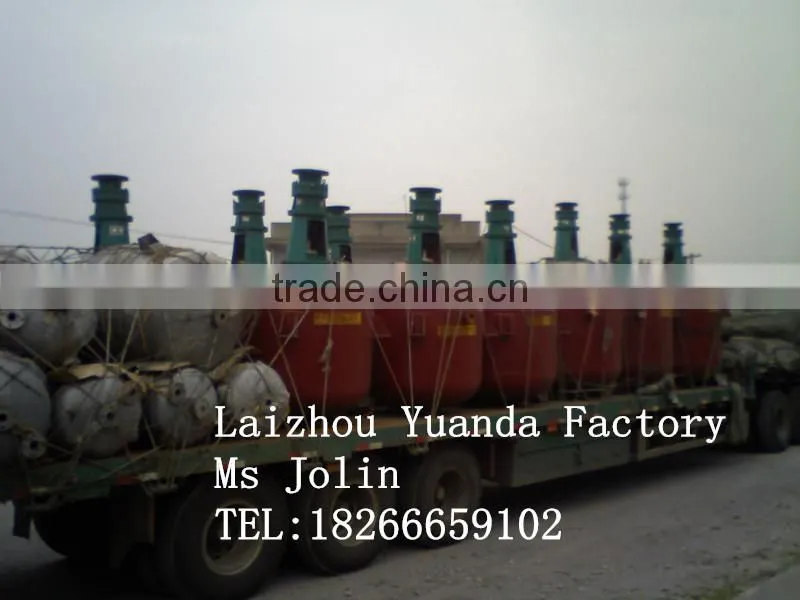

machine loading:

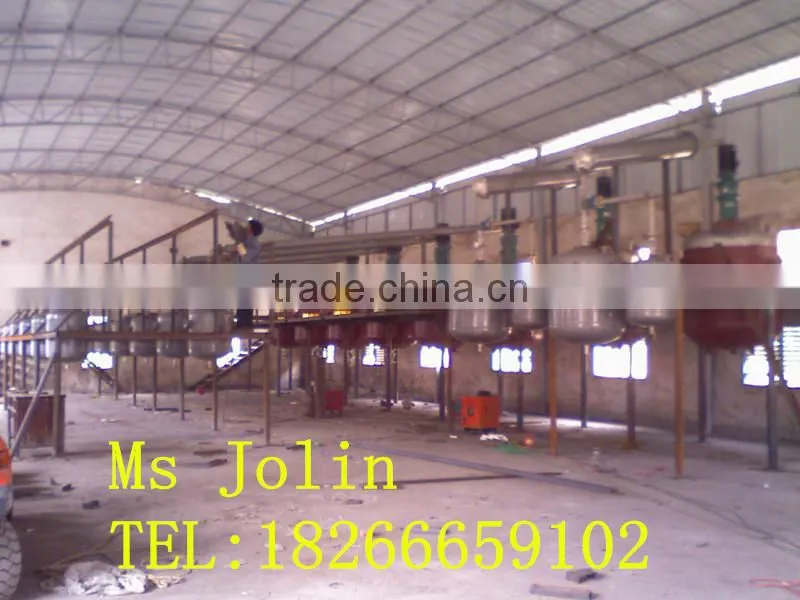

Machine instalation:

Our machines can be customized, leave an inquiry to know more details about price, packing, shiping and price.
