Chewing Gum/rubber/ Hot Melt Glue Mixing Sigma Kneader
US$ 2,000 - 100,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Mixer Type:
Other, Z Blade
Product Type:
Other, BMC,Rubber,Dough,Gum
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CE Marked Sanitary Stainless Steel Sigma Dough Kneading Machine/Z Type Bread Kneading Machinery /suger Paste Mixing MachineUS$ 1,400 - 100,000MOQ: 1 Set -
Lab Dough/gum/glue/BMC/soap Kneader/sugar MixerUS$ 1,600 - 5,000MOQ: 1 Set
-
Industrial Dough Mixing Machine Price/small Dough Mixer/chapati Dough Mixing MachineUS$ 2,000 - 10,000MOQ: 1 Set
-
Soap Homogenizer/sigma Mixer/soap Making Machine BarUS$ 2,000 - 10,000MOQ: 1 Set
-
Z Arm Mixer/sigma Kneader for Hot Melt Glue /gum/dough/sugar/rubber/BMC ,CE Marked!!US$ 2,000 - 100,000MOQ: 1 Set
Condition
New
Mixer Type
Other, Z Blade
Product Type
Other, BMC,Rubber,Dough,Gum
Application
Viscous Fluid
Additional Capabilities
Other, Mixing, Heating
Place of Origin
Shandong, China
Brand Name
YD
Model Number
YD-NH
Max. Loading Capacity
5000Liter
Voltage
Customize
Power(W)
Customize
Certification
Euro CE Certificate
Warranty
life long time
After-sales Service Provided
Engineers available to service machinery overseas
chewing gum/rubber/hot melt gule/BMC kneading machine
1. application:
2-5000 litres series kneading machine can kneading various viscosity BMC,CMC it also can be used in
chemical, plastic, rubber, printing ink, carbon, medicine and food industries.
2. Material:
Contacting materials with stainless steel parts are made, can ensure the purity and quality of products.
3. Type:
This machine adopts "Z" type double mixing, can make the materials react rapidly, mixing. It can be vacuum type
or pressure type. Thehre are two kinds heating system,electric and steam heating and cooling is available.
The seal of shaft agitator is adopted with unique balance construction of vacuum box, Which owns patent.
The cover is controlled by hydraulic system.
4. Discharging way:
Hydraulic tilting, ball valves discharge type and screw extrusion type, etc.
5. Specifications:
| Model | NH-5 | NH-40 | NH-100 | NH-300 | NH-500 | NH-1000 | NH-1500 | NH-2000 | |
| Volume(L) | 5 | 40 | 100 | 300 | 500 | 1000 | 1500 | 2000 | |
| PaddleAgitator(rpm) | 33,23 | 45,23 | 35,22 | 37,21 | 37,21 | 35,25 | 30,16 | 45,30 | |
| Major motor power(kw) | 0.75 | 2.2 | 3,4,5.5 | 7.5,11 | 15,18.5 | 22,30,37,45 | 22,30,37 | 45 | |
| Form of heating | Steam:Pressure(MPa) | 0.3 | |||||||
| Electric heating:Power(kw) | 1 | 4 | 4 | 6 | 16.2 | 25 | 32.4 | 40 | |
| Degree of vacuum(MPa) | 0.094(vacuum kneader) | ||||||||
| Size(mm) | 0.45(pressure kneader) | 0.35(pressure kneader) | |||||||
| Pressure(MPa) | 650* 400* 705 | 1170* 1100* 480 | 1645* 775* 1540 | 1800* 800* 1400 | 3000* 1000* 1500 | 3450* 1300* 1600 | 3600* 1420* 1800 | 3900* 1600* 2100 | |
| Weight(kg) | 300 | 560 | 1250 | 1600 | 3000 | 4500 | 5800 | 6500 | |

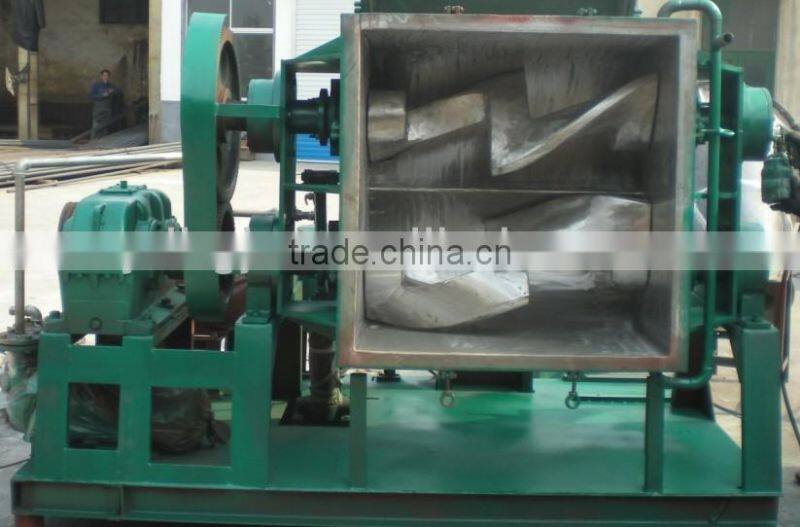

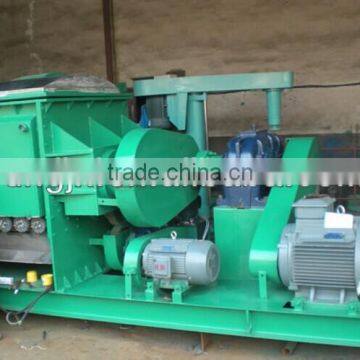

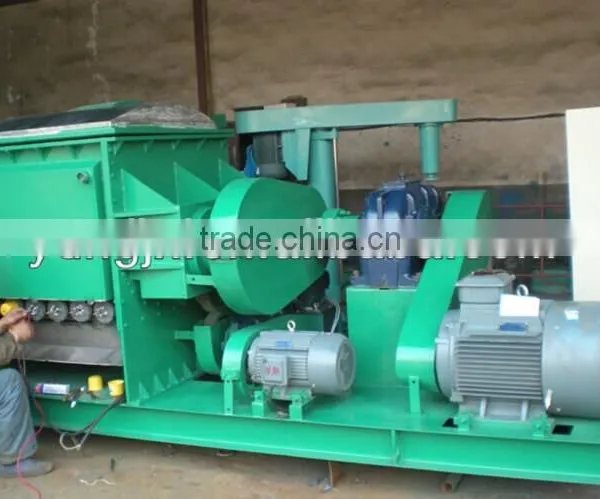

6. Pictures of machine
Pictures of products:
Soap:
Suger:
Eraser:
Paint:
Medicine:
Carbon:
Plasticine:
Euro CE Certified
