Help CenterZ Arm Mixer/sigma Kneader for Hot Melt Glue /gum/dough/sugar/rubber/BMC ,CE Marked!!
Related Products
-
BMC MIXING Mixer/kneader/mixing BlenderUS$ 2,000 - 100,000MOQ: 1 Set -
Home Dough Kneading Machine/machines Kneading Bread/kneading Machine HomeUS$ 2,000 - 10,000MOQ: 1 Set
-
Industrial Quick Sigma Kneader/dispersion Kneader/rubber Kneader MachineUS$ 2,000 - 10,000MOQ: 1 Set
-
Extrusion Kneader /bread Dough Kneader/kneader MachineUS$ 2,000 - 10,000MOQ: 1 Set
-
Bread Dough Mixer/horizontal Dough Mixer/industrial Dough MixerUS$ 2,000 - 10,000MOQ: 1 Set
Model | NH-5 | NH-40 | NH-100 | NH-300 | NH-500 | NH-1000 | NH-1500 | NH-2000 | |
Volume(L) | 5 | 40 | 100 | 300 | 500 | 1000 | 1500 | 2000 | |
PaddleAgitator(rpm) | 33,23 | 45,23 | 35,22 | 37,21 | 37,21 | 35,25 | 30,16 | 45,30 | |
Major motor power(kw) | 0.75 | 2.2 | 3,4,5.5 | 7.5,11 | 15,18.5 | 22,30,37,45 | 22,30,37 | 45 | |
Form of heating | Steam:Pressure(MPa) | 0.3 | |||||||
Electric heating:Power(kw) | 1 | 4 | 4 | 6 | 16.2 | 25 | 32.4 | 40 | |
Degree of vacuum(MPa) | 0.094(vacuum kneader) | ||||||||
Pressure(MPa) | 0.45(pressure kneader) | 0.35(pressure kneader) | |||||||
Weight(kg) | 300 | 560 | 1250 | 1600 | 3000 | 4500 | 5800 | 6500 | |
1. application:
2-8000 litres series sigma mixer/kneader can kneading various viscosity BMC,CMC it also can be used in
chemical, plastic, rubber, printing ink, carbon, medicine and food industries.
2. Material:
Contacting materials with stainless steel parts are made, can ensure the purity and quality of products.
3. Type:

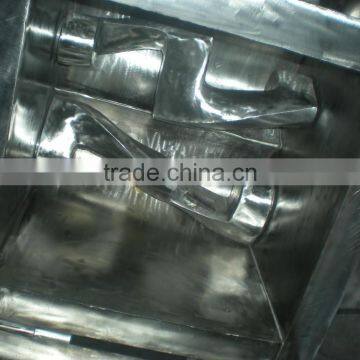

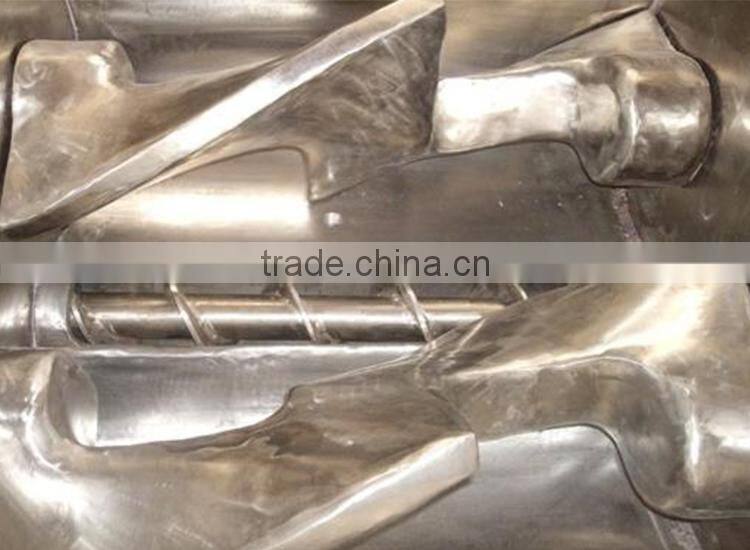

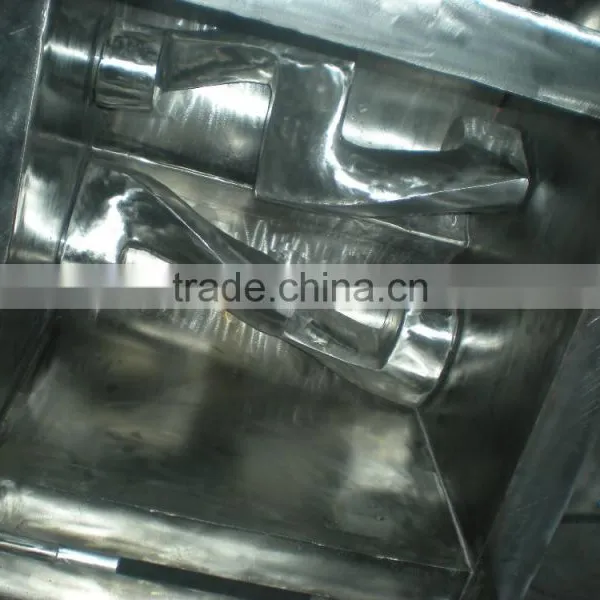

This sigma mixer/ kneader adopts "Z" type double mixing, can make the materials react rapidly, mixing. It can be vacuum typeor pressure type. Thehre are two kinds heating system,electric and steam heating and cooling is available.
The seal of shaft agitator is adopted with unique balance construction of vacuum box, Which owns patent.
The cover can be controlled by hydraulic system.
4. Discharging way:
Hydraulic tilting, ball valves discharge type and screw extrusion type, etc.
About Delivery time
Q-----What’s the delivery term for making business with us?
A-----Usually we send tne shipments in FOB term.However, the terms of CIF are acceptable which depend on the preference of clients.
About Lead Time
Q------What’s the lead time after placing thr order?
A------Usually it takes about 25~30 days after we received your confirmation.
However, it would depend on our production line schedule(the timing clients place order)and the complication of the item.
About Payment Term
Q------What’s the Payment Term?
A------By T/T in Advance, or Irrevocable L/C as Sight.
